Description

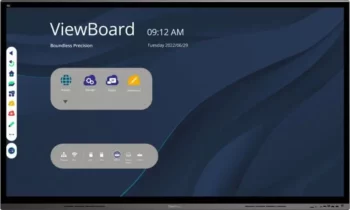

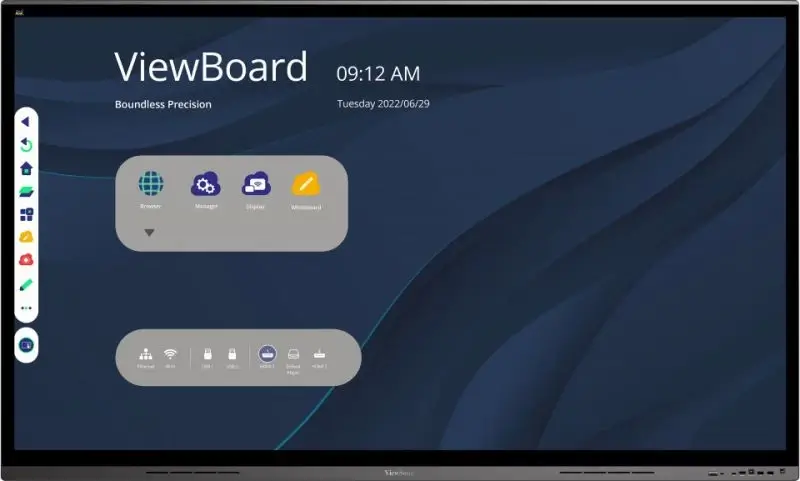

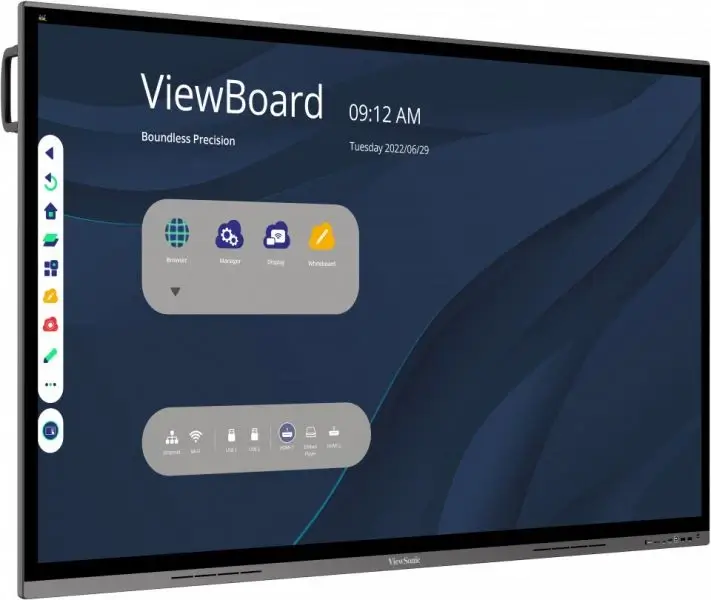

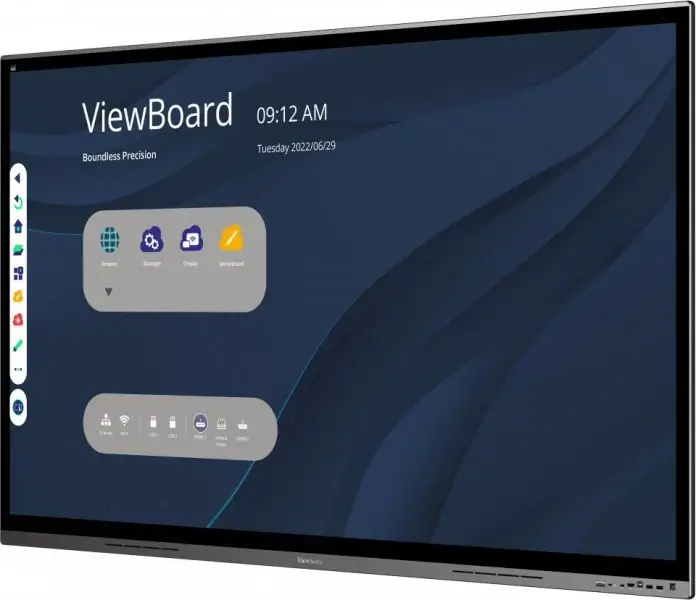

INTRODUCTION ViewBoard 7562
The series ViewSonic ViewBoard 62 is a touch-screen interactive large-format, which pushes employees to get results-efficient and strong.
The slab display 4K UHD without edges is a path to a new visual quality and a space meeting immersive.
Enjoy maximum precision of the traits of writing more true-to-life thanks to the technology UFT+, touch 20-point multi-touch with pen pressure on several levels.
Compatible with the speaker systems conference ViewSonic (VB-AUD-201) and the camera videoconferencing all-in-one (VB-CAM-201).
The series ViewBoard 62 offers a pure sound and a picture-perfect pixel-to-pixel, which makes it a unique solution and powerful for the meetings.
In addition, it allows for multiple connections, including inputs/outputs complete, vCastSender and myViewBoard Display, as well as ports USB type-C integrated taking care of a fast charging 65W and a display of quality at the same time.
As an advantage, the myViewBoard Manager built-in is a tool is intuitive and easy for the computer systems and management information systems (MIS), which allows a control central computer and a multimedia streaming.
ViewBoard® 62 Series
Accuracy without limits
The screen that is most productive for the workspaces of the future
The series ViewSonic ViewBoard 62 adopts the technologies of OCAP and optical bonding to deliver collaborative experiments and the visual state of the art. The space end between the glass and the touch layer allows you to obtain an unparalleled accuracy with a natural feel of pen on paper.
The elegant visual in the office
The improved design, no edges, brings an aesthetic touch to your meetings. The structure of optical bonding complete eliminates the reflections between the front glass of the touch screen, which improves the contrast and highlights the images vividly.
Improve your meetings with a conference setup optimal
Easily connect the ViewBoard series 62 with the speaker of conference ViewSonic (VB-AUD-201) camera and video conferencing all-in-one ViewSonic (VB-CAM-201) to transform it into a solution of meeting complete. Boost all video calls thanks to a clear, functions, echo cancellation, and a wide field of vision of 121 degrees.
*The speaker of conference ViewSonic (VB-AUD-201) provides an optimized user experience on laptops, and PCS rack.
A multi software
Real videoconferencing solution professional, the series ViewBoard 62 shows a total compatibility with a variety of video conferencing software to provide a quality of conversation above. The 2.1 speaker system built-in 40W and the built-in microphones, which pick up the voices of up to 8 metres, guaranteeing that each participant can hear and be heard perfectly.
Wireless content sharing
The series ViewBoard 62 allows presentations fluid and productive thanks to the broadcast of screen wirelessly from your device. Choose myViewBoard Display to be projected directly via the Internet browser without any dongle or pre-registration required, and a degree of participation even higher, choose ViewBoard Cast and let up to 4 participants to project their screen at the same time via a split screen.
An efficient connection
The series ViewBoard 62 is equipped with a complete set of Input ports and Output allowing you to connect to any type of source. With a USB-C plug-and-play taking care of the technology PD65W, you can get the power and the display through a single cable, which allows you to optimize the efficiency of your meeting room.
Business communication simplified
ViewSonic myViewBoard Manager is a web-based software for it teams and administrators that centralizes the distribution of messages.
With a single device, you can easily synchronize information across multiple screens ViewBoard, thereby aligning the corporate communication at all levels.
Whether it's a general announcement, an emergency message or a multimedia resource. Reduction of the workload of warranty.
*For even more features, don't forget to check myViewBoard Manager Advanced.
Centralized control with myViewBoard Manager
It administrators can streamline workflow by automating tasks in advance for greater efficiency with myViewBoard Manager.
Schedule remote tasks such as software updates, activation and deactivation of the screen, powering off, the streaming media, etc., on multiple devices.
Managing user access to various functions and devices, you can maintain the security and control of the system to meet the different needs of the administrators.
*The state of use of the device is only available with myViewBoard Manager Advanced.
Rack mount PC Windows
Improve your productivity with this integrated solution is ideal for interactive displays ViewBoard®, and screen presentation ViewSonic running under Windows OS.
With Wi-Fi, dual-band, Bluetooth, and the powerful Intel® Core™ processor, it contains the amount of computing power needed to run applications that require a processor intensive.
Committed to the planet
The series ViewBoard 62 has obtained the certification EPEAT Silver – the highest environmental score obtained by all the digital screens, interactive currently on the market, thanks to the respect of the required criteria in terms of energy consumption, carbon emissions from the supply chain and management of the end-of-life.
Committed to sustainable development, ViewSonic has worked actively to the implementation of energy efficiencies, advanced and ecological concepts on all of its product lines.
- SCREENScreen size: 75"
Type/Technology: Module TFT LCD with backlight DLED
Display area (mm): 1650.24(H) x 928.26(V)
Height/width ratio: 16:9
Resolution: UHD 3840×2160(Pixels)
Color: 1.07 B (8bits + FRC)
Brightness: 350 nits (typ.) 300 nits (min.)
Contrast: 5000:1 Typ.
Response time: 8.5 ms
Angles of vision: H = 178, V = 178 typ.
Surface treatment: Hardness : Pen 9H
Edges: Height: 38.7 mm
Bottom: 63.6 mm
Left: 31.1 mm
Right: 31.1 mm - PlatformProcessor: Dual core A73+Dual-core A53
RAM: 3GB DDR4
Storage: 32GB eMMC - TouchType/Technology: Ultra Fine Touch More (Projected Capacitive)
Resolution:touch 32767 x 32767
Touch Points: 20
- INPUTSHDMI: x4
RGB / VGA: x1
Audio: 1x PC-Audio IN
MIC(Microphone): Network of MEMS microphones to 6 items at full frequency
RS232: x1
OPS: x1
WI-fi: x1 - OUTPUTSHDMI: x1
Audio: x1
SPDIF: x1 - LANRJ45: x2
- USBType: x6
Type B: x2
Type C: x1 - SPEAKERS12W x 2 + Subwoofer 15W x 1
- SOFTWARE INCLUDEDSoftware annotation base: myViewBoard WhiteBoard for Android
Software annotation pro: myViewBoard WhiteBoard for Windows (Included in the Rack mount PC Windows optional)
Wireless presentation: ViewBoard Cast & myViewBoard Display & AirServer - SPECIFICATIONS SPECIALSimple file sharing on the local network between the IFP and Rack mount PC: Yes
- POWER supplyVoltage: 100-240VAC +/- 10% Wide Range
Consumption: On: 130W(Typ.) / Off: - OPERATING CONDITIONSTemperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing - DIMENSIONS (W x L x P)Physical (inch / mm): 67.4 x 40.6 x 3.1 in / 1712 x 1031 x 78 mm
Packaging (inch / mm): 72.8 x 44.1 x 10.6 in / 1848 x 1121 x 270 mm - WEIGHTNet (lb / kg): 110.34 lb / 50.05 kg
Gross (lb / kg): 146.17 lb / 66.3 kg - RULEScTUVus, FCC, Energy 8.0, EPEAT, CCC, Mexico, CE, CB, RoHS, ErP, REACH, WEEE, UKCA, LBL
- PACKAGE CONTENTS1. Power cable
2. Remote control
3. AAA battery X2
4. Cable USB Type C
5. Pen passive x 2
6. Quick start Guide
7. Declaration of conformity
8. RS232 adapter
9. Plate
10. Fixing x 5
11. Screw x 8
12. HDMI cable
13. USB cable touch - PC compatible built-in)VPC25-O-B series, VPC27-O-B series
