Description

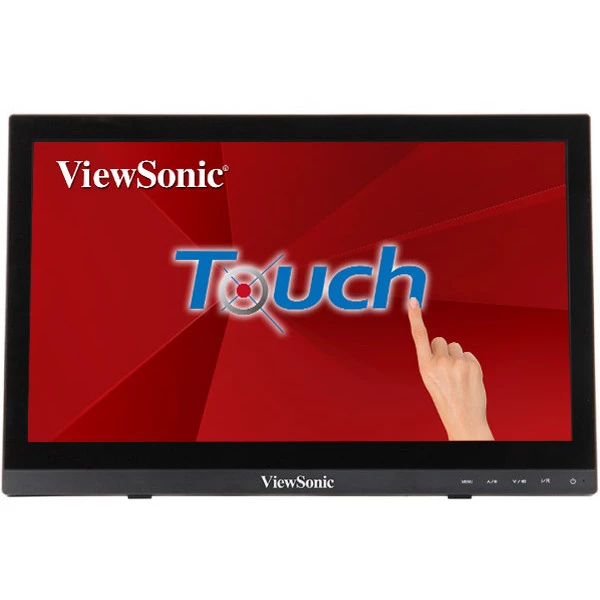

Touch screen TD1630-3 capacitive projected 10 points
Touch screen displays with capacitive touch projected can recognize up to 10 simultaneous touch points, allowing for a tactile experience highly accurate and ultra-responsive. With its touch capabilities flexible and responsive, the touch screen is ideal for use at home, vocational, educational, or commercial.
Ergonomic design with advanced support

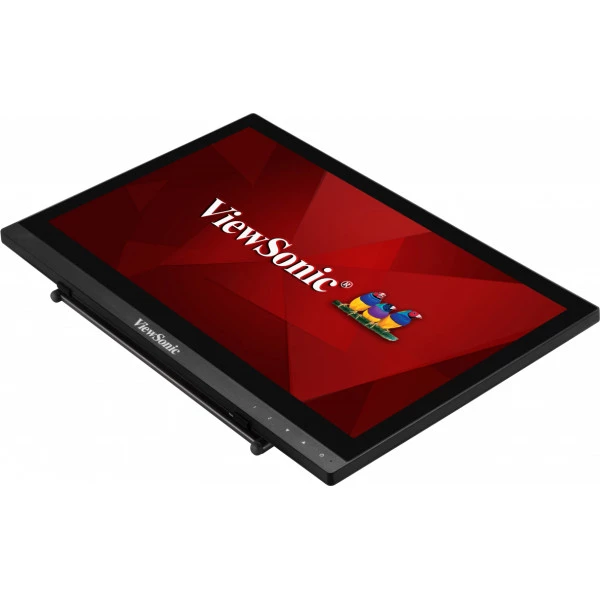

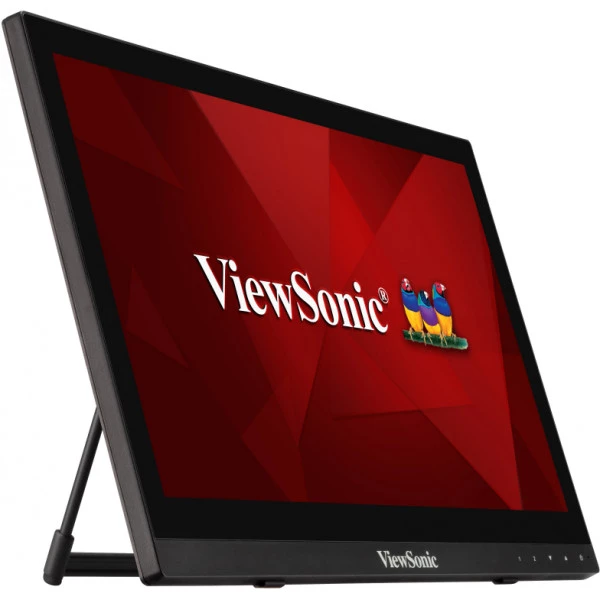

A stable support built in, such as a display, which allows you to easily adjust the angle of the screen for a better user experience. The screen can be tilted or laid flat on a table for a more comfortable working environment.
Connectivity versatile
The HDMI and VGA inputs let you connect your monitor to different types of devices.
Cross-platform compatibility
Cross-platform compatibility with a wide range of operating systems including Windows 10 and some versions of Linux*.
* Compatible with Windows 7/8/10, Linux Kernel 4.X/3.X
TD1630-3 screen durable-resistant to scratches
This touch screen is equipped with a front protection glass, to improve the resistance by protecting it against scratches and ensure the touchscreen experience consistent high quality in popular areas such as public places where the touch screen can be used as a kiosk.
Two high-stereo speakers
Designed with two integrated speakers, this display combines display performance with exceptional stereo sound for a multimedia experience that is immersive.
Improved comfort display
The technology to filter blue light will help reduce eye fatigue due to long periods of viewing.

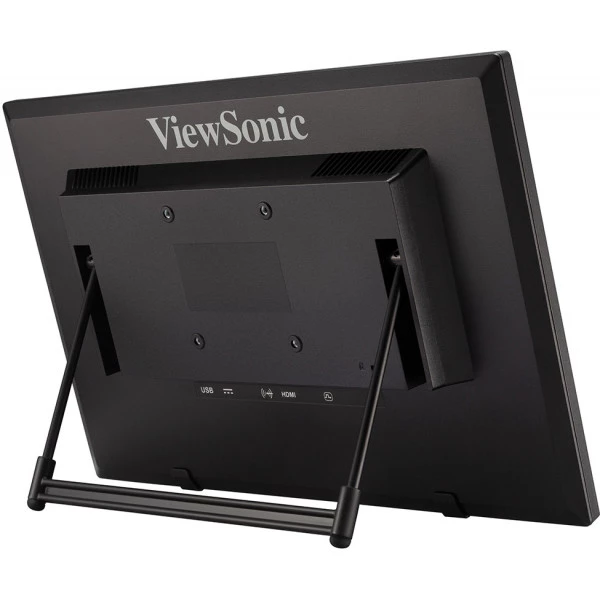

VESA-compatible mount
Conveniently mount the monitor to your liking by utilising sti VESA-compatible mount design.

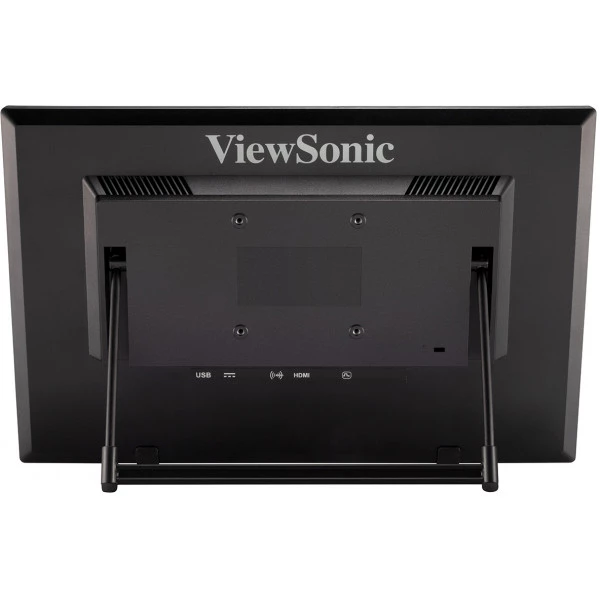

- Internal Speakers
- USB
- DC In
- VESA Compatible(Wall Mount 75x75mm)
- VGA
- HDMI
SPECIFICATIONS TD1630-3
SCREEN TD1630-3
- Monitor Dimension: 16” (15,6”)
- Panel technology: TN-TFT LCD
- Resolution: HD 1366 x 768
- Display area: 344,23 mm (H) x pitch 193.54 mm (V)
- Height/width ratio: 16:9
- Brightness: 220 cd/m2 (Typ) without touch module, 190 cd/m2 (Typ) with touch module
- Contrast: 500:1 (Typ)
- Dynamic contrast: 10 000 000:1
- Angles of vision: 90 degrees / 60 degrees (Typ)
- Response time: 12ms
- Color: Colors 262 K (6-bit)
- Color range: 45 % of NTSC (Typ)
- Panel Surface: ≧7H, Haze
- Pixel size: not applicable
INPUT SIGNAL
- Frequency: Fh = 30 ~ 61KHz ; Fv = 56 ~ 75 Hz
- Synchronization: Sync separate TMDS
COMPATIBILITY
- PC: Tested for Windows 7/8/10
- Mac®: Screen : Power Mac tested, module touch iOS not supported
CONNECTOR
- Input: VGA x 1
- HDMI x 1 (v1.4 compatible)
- Audio input x 1 (3.5 mm plug)
- Output: not applicable
AUDIO
- Speaker: 1W x 2
USB
- Upstream: Type B x 1
- Downstream: not applicable
SD CARD READER
- not applicable
WEBCAM
- not applicable
POWER
- Power: DC connector 5.5 x 2.1 x 11 mm
- Voltage: AC 100-240v (Universal) ; 50/60 Hz
- Consumption: 5.5 W
- Optimized: 4,9 W
- Preserved: 4.3 W
ERGONOMICS

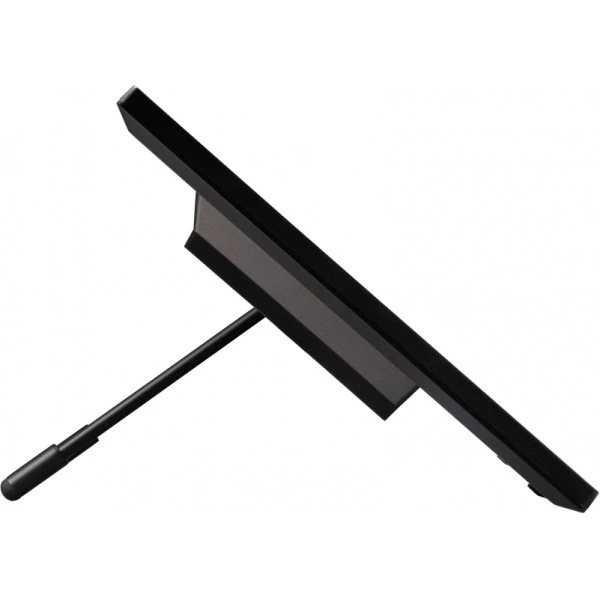

- Tilt: 15 ~ 50 degree
- Pivot: not applicable
- Rotation: not applicable
- Height adjustment: not applicable
SPECIAL FUNCTIONS
- Eye Protection: Filter blue light
- WALL MOUNT
VESA®: 75mm x 75mm
- OPERATING CONDITIONS
Temperature (° C): 0 °C to 40 °C
Humidity: 20% to 85 % (non-condensing) - DIMENSIONS (W x H x d) (mm)
Physical with stand (mm): 379,24 mm (L) x 247,12 mm (H) x 37,15 mm (P) (0 degree)
Physical without stand (mm): 379,24 mm (L) x 247,12 mm (H) x 37,15 mm (P)
Packaging (mm): 453 mm (W) x 389 mm (H) x 86 mm (P) - WEIGHT
Net with stand: 1.32 kg
Net without stand: 1.32 kg
Gross: 2.5 kg
- REGULATIONS
World: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS
VSA: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS
VSE: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS
VSI: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS
VSCN: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS - WARRANTY
* The warranty can be different from one market to another
- KIT CONTENTS
LCD screen
Adapter 40 W AC/DC (1.2 m)
Power cable (1.5 m)
VGA cable (1.5 m)
USB2 cable.0 (1.8 m)
Audio cable (1.8 m)
Quick start Guide
