Description
Description / features

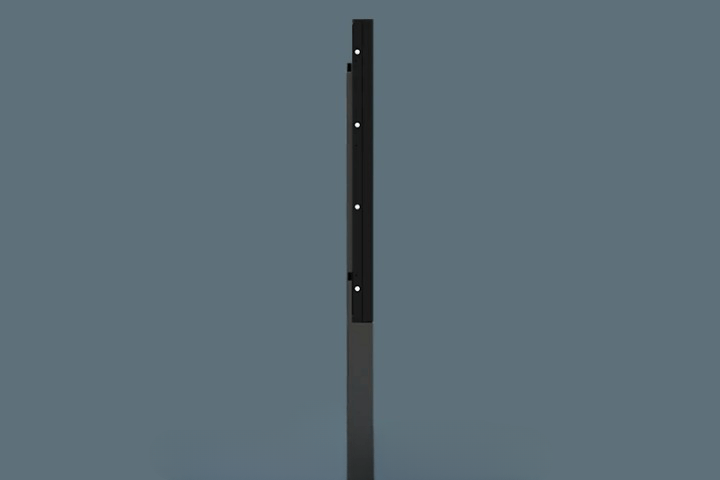

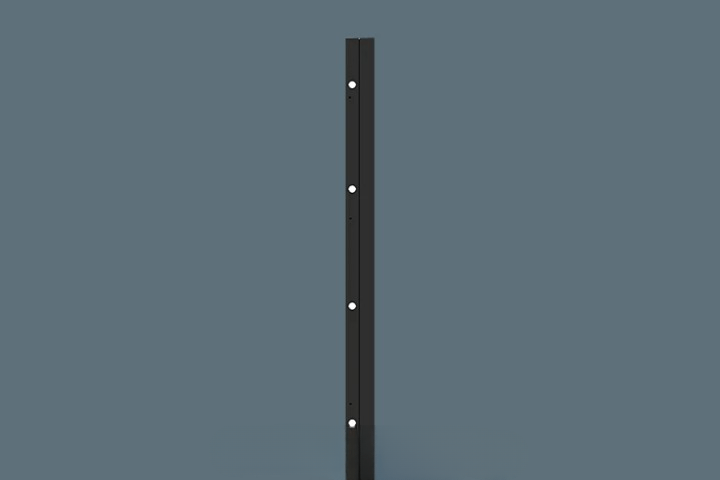

Screen fixed to the wall, with a technique of optical link of screen fully fitted, a frame, ultra-slim, 38 mm, ultra-thin and 98 mm thick, the screen accounts for 96 %. He has a degree of protection IP66 and one resistant to high temperatures and has a high brightness.
Main features:
- Technology of optical link screen fully fitted, ultra-narrow 38 mm, ultra-thin 98 mm thickness, super large screen accounts for 96 %
- degree of protection IP66 degree explosion-proof IK10
- Resistance to high temperature industrial screen high brightness
Digital signage waterproof IP66 outdoor
32” 43” 49” 55” 65”
Screen IP66
Impervious to water, dust, photoprotection, lightning, shock, corrosion, theft
Screen ultra-clear FHD range of colors 100 %
The image quality is professional, which can display bright colors to more accurately and adapt to all kinds of environments

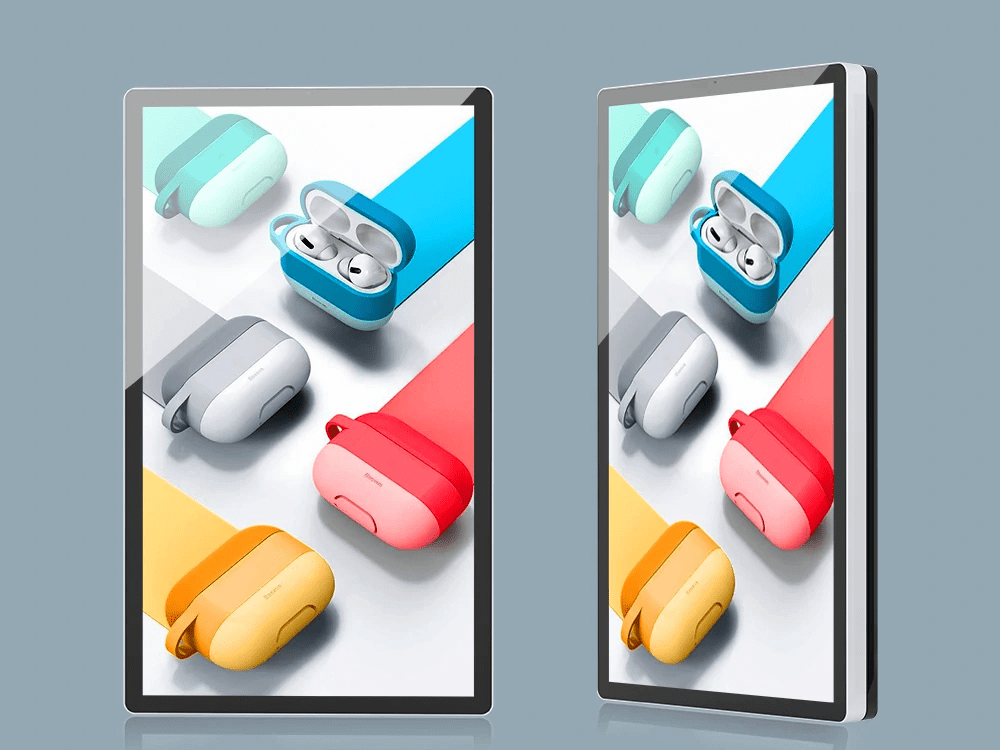

Horizontal and vertical display available
The screen mode horizontal mode and vertical screen can be switched according to the needs
Support for multiple screens shared
Support split-screen mode through the software, backup, export-import ADS
Screen outdoor waterproof ultra thin IP66
It is lighter, thinner and more beautiful than the screens outdoor traditional.
Technology of optical link full
Adopt the technology of optical link complete, more energy-efficient and more elegant than traditional models, with a better view.
Light sensor smart
Can automatically adjust the brightness of the LCD screen according to the brightness of the external light, in order to minimize the energy consumption, save energy and protect the environment
Structure design of ventilation quality
Adopts a structure design of ventilation of military grade. When the temperature of the
machine increases, it can cool down quickly without affecting the use of the screen.
LCD screen
Adopt an LCD screen resistant to high temperatures and high-quality components,
the LCD display can operate at a maximum temperature of 110 ℃, the finished product can operate at a maximum temperature of 70 ℃

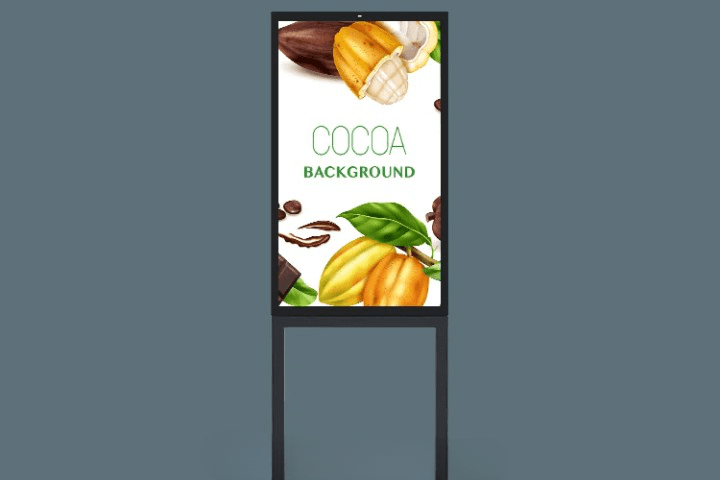

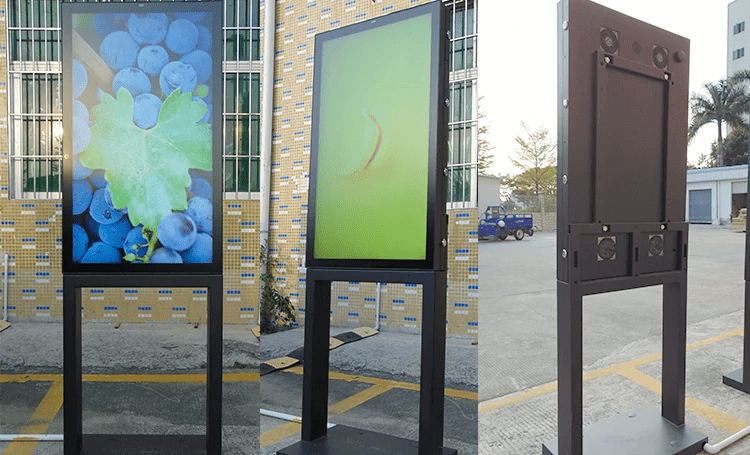

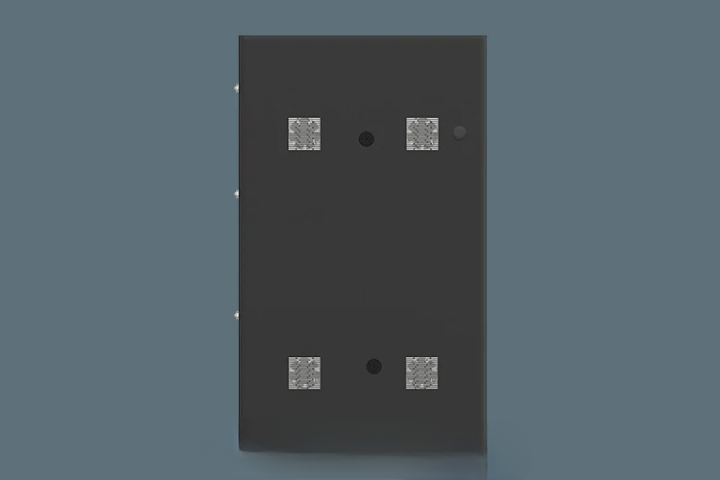

The 2 methods of installation screen wall or stand on the foot
An image quality, which can display bright colors with more precision, and adapt to more of field
Product Photos
Popular Applications
| Panel | Display size (inch) | 32" | 43" | 49" | 55" | |
| Resolution | 1920×1080
(16:9) | 1920×1080
(16:9) | 1920×1080
(16:9) | 1920×1080
(16:9) | ||
| Active display area(mm) | 700.5(H)
x394.8(V) | 941(H)*530(V) | 1073.5(H) x
603.0(V) | 1209.6(H)x
680.4(V) | ||
| Aspect Ratio | 16:09 | 16:09 | 16:09 | 16:09 | ||
| Brightness(cd/m2) | 2000nit | 2500nit | 2500nit | 2500nit | ||
| Contrast ratio (Typ.) | 2000:1 | |||||
| Angle of view (H/V) | 178/178 | |||||
| Color | 16.7 M | |||||
| Response time (G to G) | 6ms | |||||
| Opening hours | 24/7 | |||||
| Sound | Speaker | 5W, 8Ω (2 games) | ||||
| Power | Type | Internal | ||||
| Current Source | AC 100 – 240 V~ (+/- 10 %), 50/60 Hz | |||||
| Power consumption | Max[W/h] | 130W | 180W | 260W | 300W | |
| Standby Mode | less than 0.5 W | |||||
| Stop | less than 0.5 W | |||||
| Mechanical
Specification | Glass protection | Glass anti-reflection AR | ||||
| Life of the housing | 8 years | |||||
| IP rate | IP66 | |||||
| Classification anti-hazard | IK10 | |||||
| Media Type | Wall / Ceiling / Freestanding | |||||
| Environment | Operating temperature | -30°C ~ 80°C | ||||
| Storage temperature | -30°C ~ 55°C | |||||
| operating humidity | 10 % ~ 80 % | |||||
| Storage humidity | 5% ~ 98% | |||||
| Cooling system | Turboventilateur powerful and flow fan cross/air conditioning (optional) | |||||
| IS | Media player Android | Processor | Rockchip® RK3288 (1.8 GHz, four cores) | |||
| RAM | 2G | |||||
| Glow | MEM 8G | |||||
| USB | HOST USB2.0 (X2) | |||||
| local area network | Ethernet 10M/100M (screen network version only) | |||||
| External memory | 8gb SD card (up to 32gb) | |||||
| Multimedia | Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image files (JPG, GIF, BMP, PNG) | |||||
| Resolution media | 1920*1080 | |||||
| Wi-fi | Ethernet 802.11 b/g/n (screen network version only) | |||||
| System operator | Android 7.1 | |||||
| Certificate | Security | THIS | ||||
| Accessories | Included | Scheduling software, Remote control, Key, power Cable, SD Card, wall mount | ||||
| Quality Assurance | 1 year | |||||
| Type of packaging | Cardboard box/box with honeycomb + wooden crate | |||||
