Description
The HMQ is a monitor screen in 4K, that supports streaming live video over long distances in applications of surveillance and control. The display technology is designed to evolve and is compatible with the monitoring systems, analog and digital. The HMQ supports an image quality of up to 8MP camera via an HDMI connection in order to present video sequences net. Thanks to the design loop-through SDI, the screen can receive 1080p images in real time from cameras HD-SDI or 3G-SDI and transmit uncompressed video to multiple screens SDI with very low latency. It responds to the need of images with high quality details for monitoring live video in the broadcast solutions and video surveillance.
SEE THE INTRICATE DETAILS IN 4K
The HMQ has 3840 x 2160 pixels, which provides video clips thinner. The high resolution allows you to zoom with crisp detail as evidence of close circuit television (CCTV).
Thus, the operator can zoom in on a license plate number or the features of a face. In addition, the slab, which allows the operator to view videos and graphics 4K fluids with a new level of detail and clarity.
SUPPORT STREAMING HIGH-DEFINITION VIDEO 1080P 3G-SDI
Support for 3G-SDI and HD-SDI 1080p resolution allows the HMQ to display the video signals live SDI cameras. The output terminal of the loop-through SDI allows you to view the same image on a monitor SDI local or other device SDI.
TRANSMISSION OF UNCOMPRESSED AND ULTRA-LOW LATENCY VIA A LONG-DISTANCE
The series HMQ supports multiple video standards SDI, including SD, HD and 3G-SDI. These standards support the ultra-low latency and the transmission of uncompressed of HDTV signals up to 300 meters for monitoring live video.
The maximum distances for the transmission of signals to 3G-SDI, HD-SDI and SD-SDI via coaxial cable RG6:
3G-SDI : 100M
HD-SDI : 150M
SD-SDI : 300M
ADJUST FINELY THE CCTV IMAGES TO CLARITY AND DETAILS MAXIMUM
A mode CCTV special preconfigured optimizes the clarity of the image in the sequences of low brightness.
You can make fine adjustments and quickly narrow down your video clips in terms of sharpness, saturation, contrast, brightness, etc, And you don't have to lose time to test and adjust constantly, because the HMQ has already figured it out!
SELECTION OF THE GAMMA ENHANCED
Offer a selection gamma enhanced allows for excellent optimization, and visual. Thus, you can easily improve the quality of lighting, shadows, and color balance of your video.
VISIBLE DETAILS IN DARK SCENES
The technology allows you to make adjustments to the level of black, which makes it easy to display more details in the cctv footage, captured in environments nighttime or low-light conditions.
DESIGNED FOR RELIABILITY
The security screen HMQ adopts a slab of commercial quality and incorporates high-quality components to ensure continuous operation 24h/24 and 7d/7. In addition, the patented Anti-burn-in™ adds an extra level of protection in mission-critical environments.

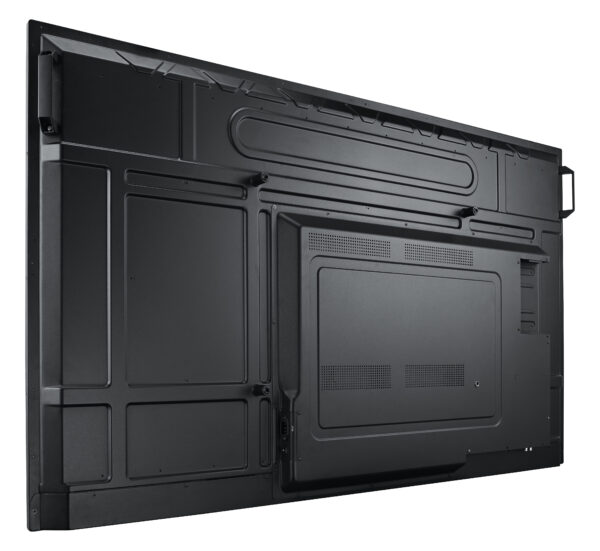

THE METAL HOUSING ENSURES RELIABLE MONITORING
The outside casing in metal offer better heat dissipation, providing a high level of resistance and durability. In turn, this improves the performance of cooling to ensure proper operation 24h/24 and 7d/7.
CONTROL AND EASY INTEGRATION
Connections RS232 / LAN integrated and the software command and control AG Neovo PID enable you to control, configure and maintain easily installations with multiple displays from a simple and intuitive way.
The software provides Web interfaces and mobile intuitive remote management, and related settings to the OSD.
VERSATILE CONNECTIVITY AND LOOP VIDEO

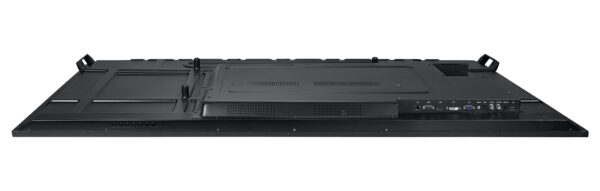

The HMQ can easily connect to various surveillance equipment with HDMI, DVI, VGA, SDI, and Composite (BNC). Its inputs and outputs BNC allow you to view the images directly from the security camera on the screen and wrap around to the second device for monitoring instant.
Specifications available on the internet site of the manufacturer :
