Description
Features UM46N-E
Provide a visual impact deep

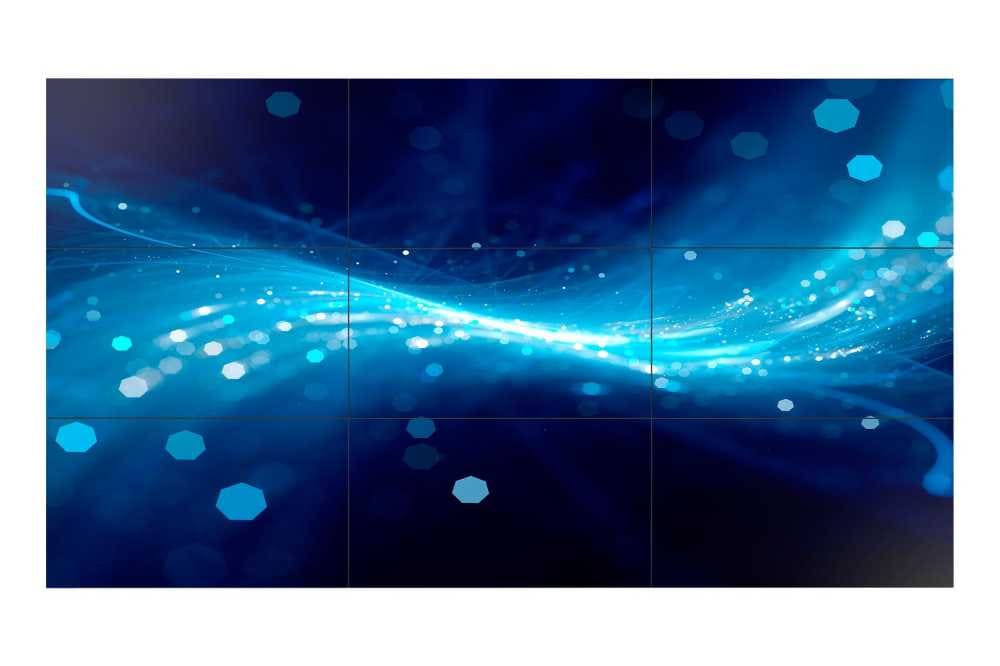

The video wall with narrow bezel Samsung has a width of bezel to bezel 1.7 mm that minimizes the visual distraction of video walls to elicit striking images of the products. The display produces an image of almost homogeneous across multiple screens without interruption, captivating and impressing the customers.
Amplify image clarity in any environment
Combined with a panel anti-glare, the screen video wall with super narrow bezel is designed to help businesses create a content presentation memorable, even under ambient light. This panel evenly distributes light throughout the screen, eliminating glare while maintaining the brilliance and accuracy of the content.
Extend the capabilities of presentation of content
The video wall Samsung offers a viewing experience UHD powerful with minimal effort or extra equipment. As the first in the industry to have a configuration that wall up to 5×5 based on the use of ports, DisplayPort 1.2 and HDMI, the screen that can project content to UHD on multiple screens simultaneously.
Share accurate and uniform
The calibration process at the factory in several stages of Samsung rule the video walls for brightness and colour across multiple screens. In addition to careful calibration in factory, the users can also manage brightness and color uniformity with Color Expert Pro Samsung, a powerful free software.
Calibration mobile economic simplicity
The solution Color Expert Pro Mobile Samsung makes calibration quick and easy video wall via a mobile camera. Thanks to the intuitive user interface of the solution, even non-experts can simultaneously adjust the white balance up to 5×5 video wall without the need for additional equipment.
* Some models may require the use of a PC and the software Color Expert Pro to calibrate the screens.
Enjoy consistent performance and long-term
Video walls super narrow bezel Samsung are designed for long-term performance, eliminating maintenance expenses for users. The screen has panels that are sustainable and compensate for variations of backlight while protecting simultaneously the screen from exposure to heat and dust.
Dissemination of reliable content for businesses
Designed to maintain performance in various indoor environmental conditions, video wall-Samsung's product in an appealing visual experience with contrast ratios and brightness levels. With continuous operations, 24 hours on 24, 7 days on 7, the screen enables the dissemination of content lively and reliable for all the needs of the business.
Box all-in-one with a multi-purpose use
Supported by a Quad-Core processor, Signage Player Box allows you to switch multi-sources and a media player to co-exist in a single housing. Leveraging the platform, the Samsung SMART Signage integrated, the box transforms video walls for a faster processing of information and easy to manage the content with the solution, MagicINFO.
Wall mounts highly configurable
The wall brackets with special user-friendly ensure easy installation of video walls in a minimum of steps. Sized to the dimensions of the video wall, the wall mount allows users to install the mount first and fit the video wall, eliminating the need for efforts tedious to measure and adjust the size of the wall bracket.
Specifications UM46N-E
Panel UM46N-E
- Diagonal size46"
- TypeD-LED DID
- Resolution1920*1080 (Full HD)
- Pixel pitch(mm)0,53025 mm (H) * 0,53025 mm (V)
- Active display area(mm)1018,08 mm * 572,67 mm
- Brightness (Typ.)500 nits
- Contrast ratio4000:1
- Angle of view (H/V)178/178
- Response time (G to G)8ms
- Display colors8 bit – 16.7 M
- Range of colours72%
- Opening hours24/7
- Mist25 % (haze outdoor 23 %)
Display UM46N-E
- C/R dynamicMEGA DCR
- Scanning frequency H30kHz ~ 81kHz
- Scanning frequency V48Hz ~ 75Hz
- Frequency of pixels maximum148,5 MHz

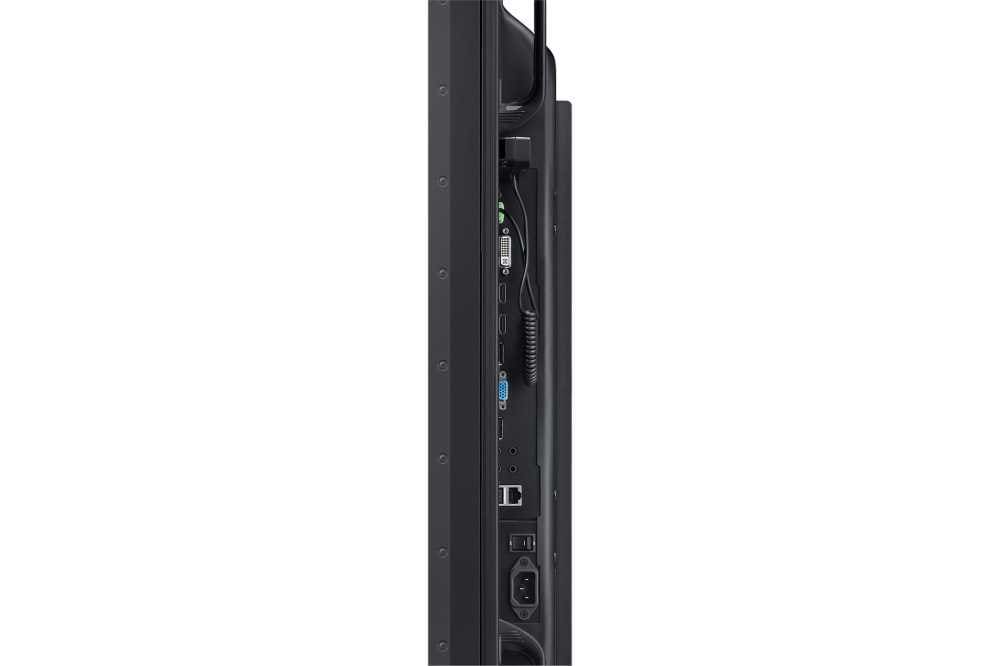

Connectivity UM46N-E
Enter
- RGBD-SUB analog, DVI-D, Display Port 1.2
- VideoHDMI 2.0 (2)
- HDCPHDCP 2.2
- audioMini-jack stereo
- USBUpgrade F/W only
Production
- RGBDP1.2 (loop-out)
- audioMini-jack stereo
- External controlRS232C (in/out), RJ45
- External sensorType detachable (IR, ambient)
POWER UM46N-E
- TypeInternal
- Current SourceAC 100 – 240 V~ (+/- 10 %), 50/60 Hz
Power consumption
- Max[W/h]143
- Typical[W/h]79
- BTU (maximum)488
- Standby Modeless than 0.5 W
- Stopless than 0.5 W
Specification mechanical UM46N-E
Dimensions (mm)
- Set1020.0 X 574.6 X 96.3
- Package1153 X 719 X 295
weight (kg)
- Set15,7 kg
- Package21.6 kg
- VESA mount (mm)600 * 400 (mm)
- Width bezel (mm)A 1.15 mm (U/L), 0.55 mm (R/B)
Operation UM46N-EUM46N-E
- Operating temperature0 ℃ ~ 40 ℃
- Humidity10 % ~ 80 %
