Description

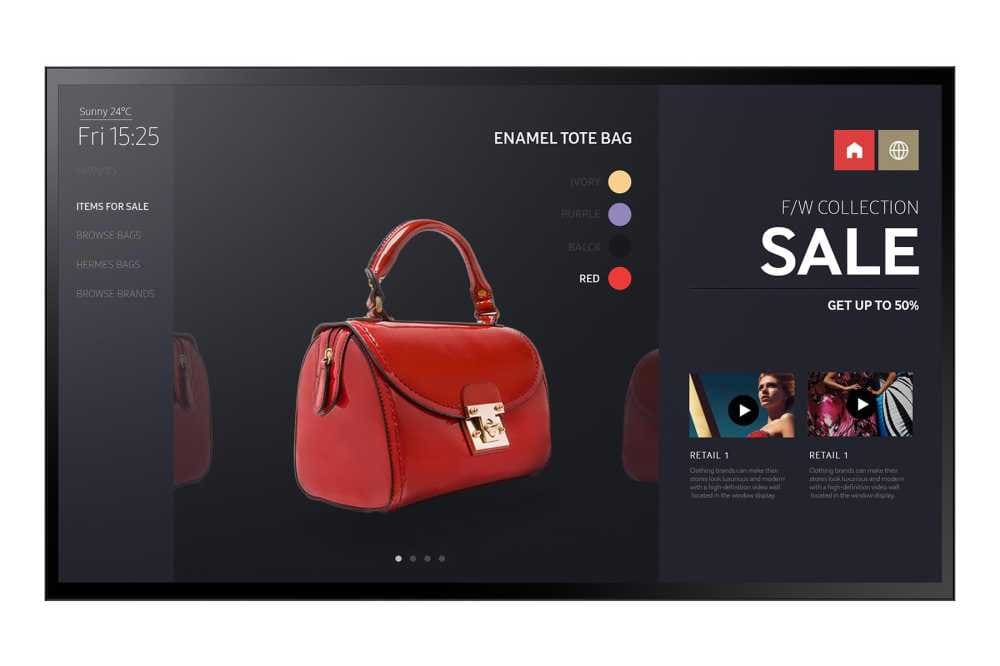

Increase engagement with touchmonitors
Screens PMF-BC Samsung reconcile the visual of a high accuracy with a touch technology for a customer experience more informative and interactive. The design anti-glare display overcomes the interference of the illumination, with an all-in-one that ensures superb performance and minimal operations.

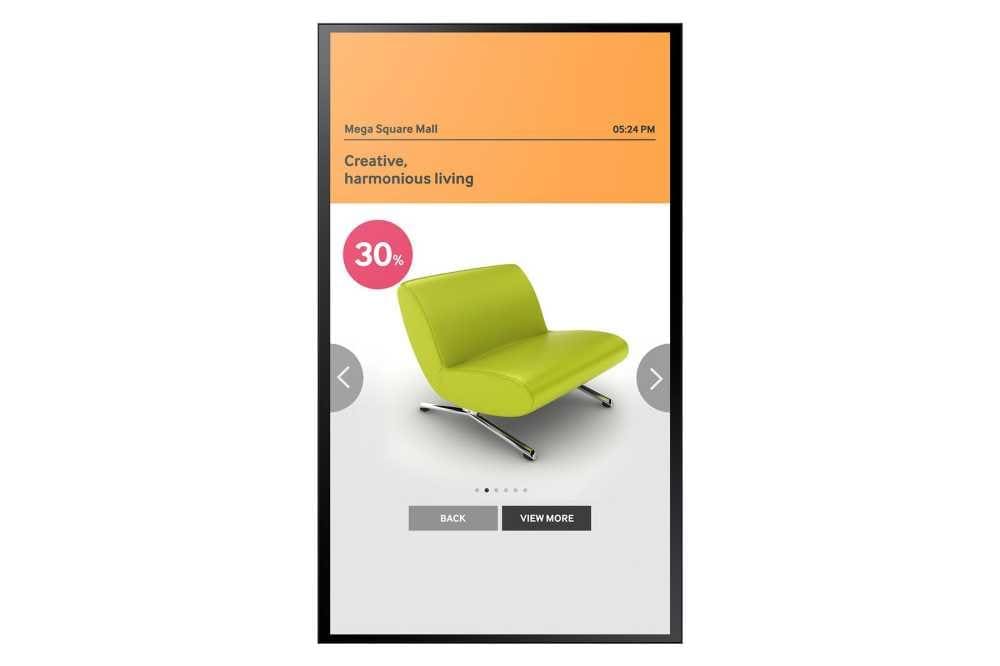

Touch Interaction versatile
The friendly design of the monitors, the PMF-BC offers a typing experience digital comfortable and productive. The capacitive touch technology provides 10 points of contact unique all-in replicating the familiar feeling of handwriting. Users are not disturbed by interference such as dust, sunlight or other variables.
Dissemination of content that is permanent and reliable
Durable and reliable, the screens, the PMF-BC Samsung are able to display continuous messages. Each monitor, the PMF-BC is designed to withstand the environmental factors that may hinder the clarity of the image, which makes them ideal for train stations or other locations subject to dust and weather.
Management all-in-one practice
By integrating powerful OS TIZEN, an integrated media player and capacitive touch technology in a single solution, the screens, the PMF-BC Samsung, deliver dynamic content, without requiring the support of a PC or an external device. The intuitive interface of the PMF-BC facilitates the dissemination fluid content and the navigation in the application.

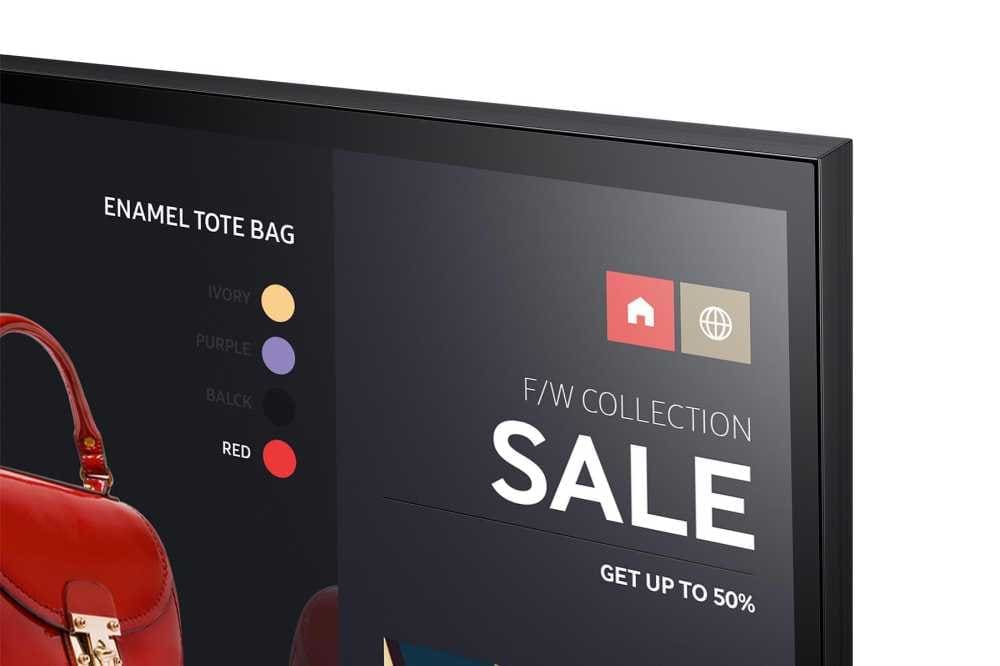

The visual quality of glossy and non-reflective
The front panels to effect anti-reflective glass screens PMF-BC are content with a high level of contrast and brightness 400nit, which differ in most lighting conditions, natural or artificial. An anti-reflective coating further helps to maintain readability continues at any time and in any place.
View control fluid and centralized
Unlike traditional displays, including the infrared interface is placed in places not easily accessible, the IR interface centralized screens of the series PMF-BC provides a convenient control and flexible to their users. Each screen PMF-BC receives the IR signals via all of its individual panels, which allows for their rapid activation from anywhere and management unbroken.
Display
- Screen size43"
- Type of slabEdge slim
- Definition1920×1080
- No pattern (H x V)0.49(H) x 0.49(V)mm
- Brightness (normal)350
- Contrast ratio3,000:1
- Angle of view (H/V)178/178
- Response time8ms
- Range of colours72%
- Glass Haze44%, 15%(glass)
- Scanning frequency H30 ~ 81kHZ
- Pixel frequency maximum148.5 MHz
- Scanning frequency V48 ~ 75HZ
- Dynamic contrast ratioMEGA DCR

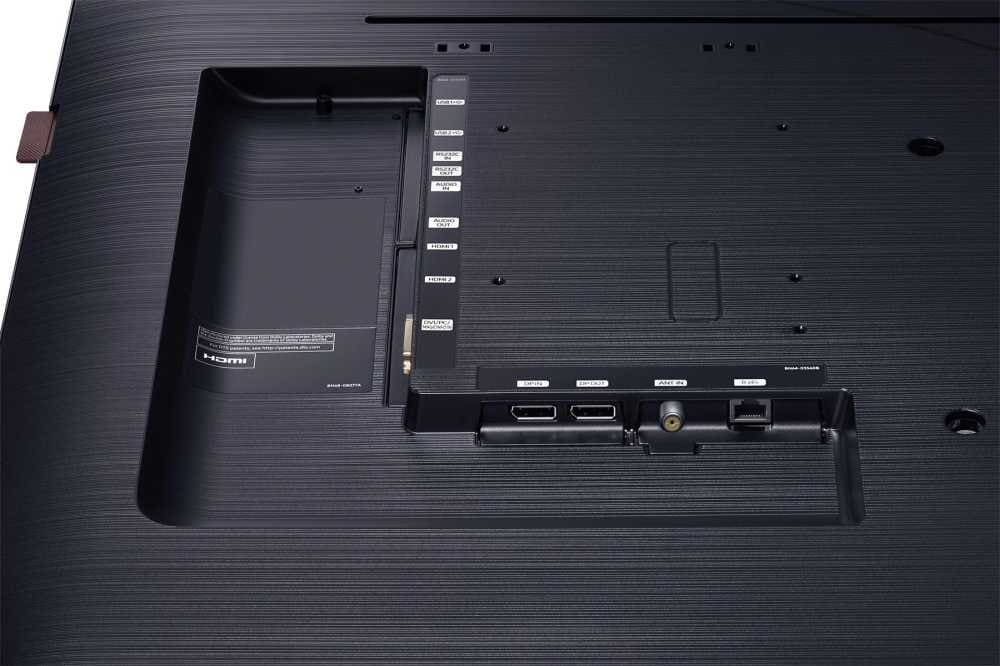

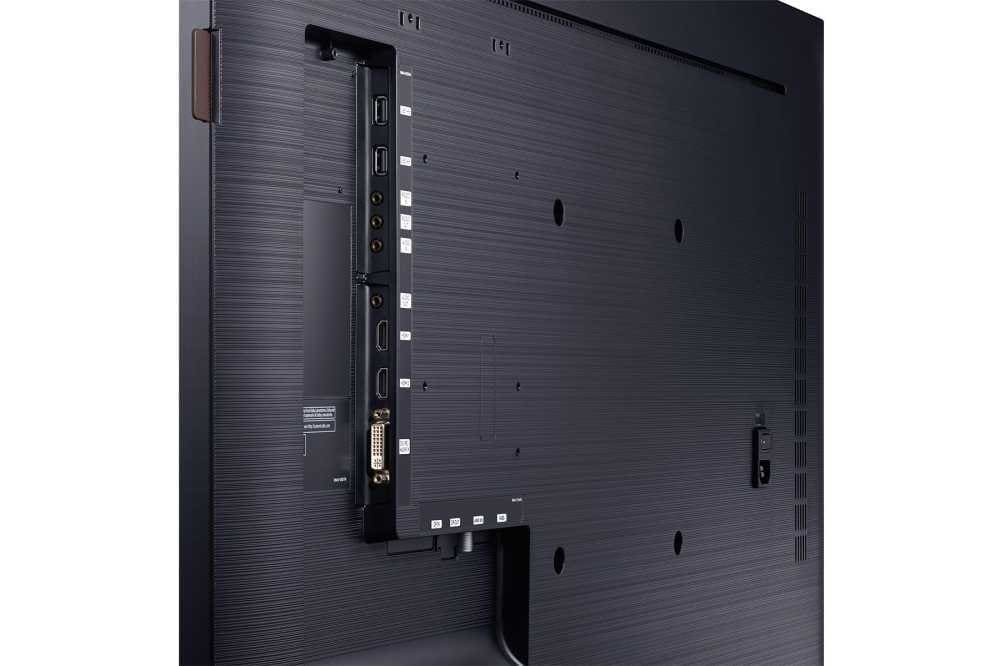

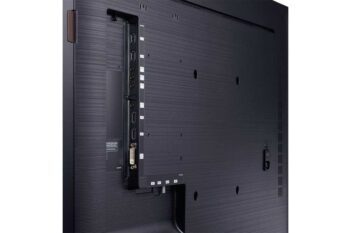

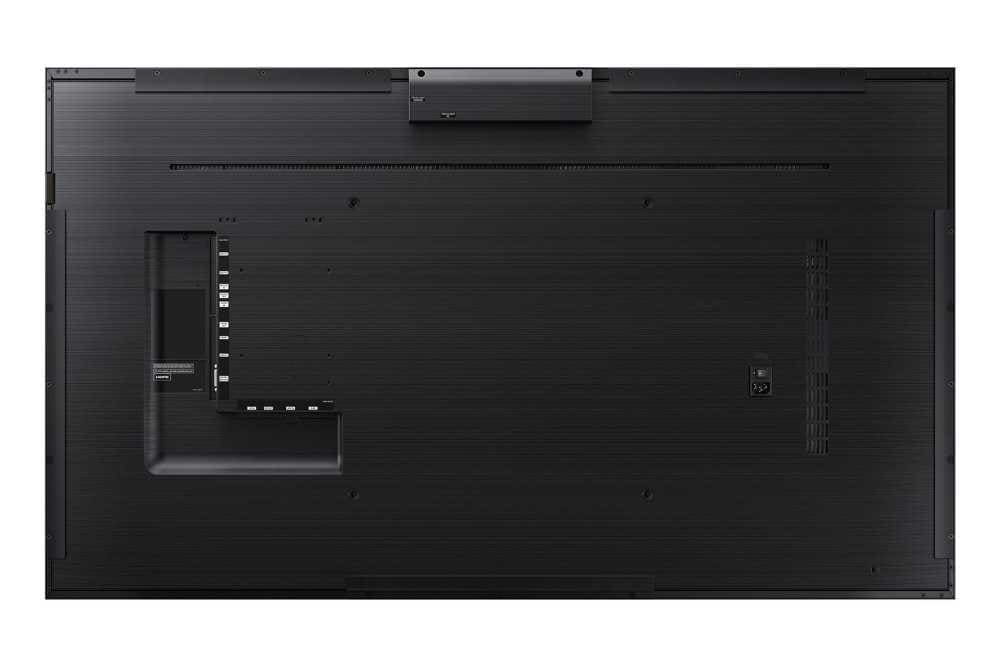

Connectivity
- HDMI In2
- DP InYes
- DVI In1
- Tuner InNo
- USB2
- Component InNo
- Composite InNo
- RGB inputDVI-I in Common
- IR InNo
- HDBaseT InNo
- Audio inputStereo Mini Jack, RGB/DVI/HDMI
- Audio outputStereo Mini Jack
- Video OutYes
- Power OutNo
- RS232 InYes
- RS232 OutYes
- RJ45 InYes
- RJ45 OutIn
- Wi-fiYes
- 3G DongleN/A
- BluetoothNo
Power
- Power supplyAC100~240V 50/60Hz
- Power consumption (off)N/A
- Power consumption (power on)154
- Power consumption (standby mode)0.5 W
Dimensions
- Dimensions of package (W x H x d)983.9 x 582.3 x 62.8 mm
- Dimensions of the packed product (W x H x d)1097 x 721 x 161 mm
Weight
- Set weight15.9 kg
- Weight of the packaged product19.8 kg
Operating Conditions
- Temperature0℃~ 40℃
- Humidity10% ~ 80%, non-condensing
Mechanical specifications
- VESA mount200 x 200 mm

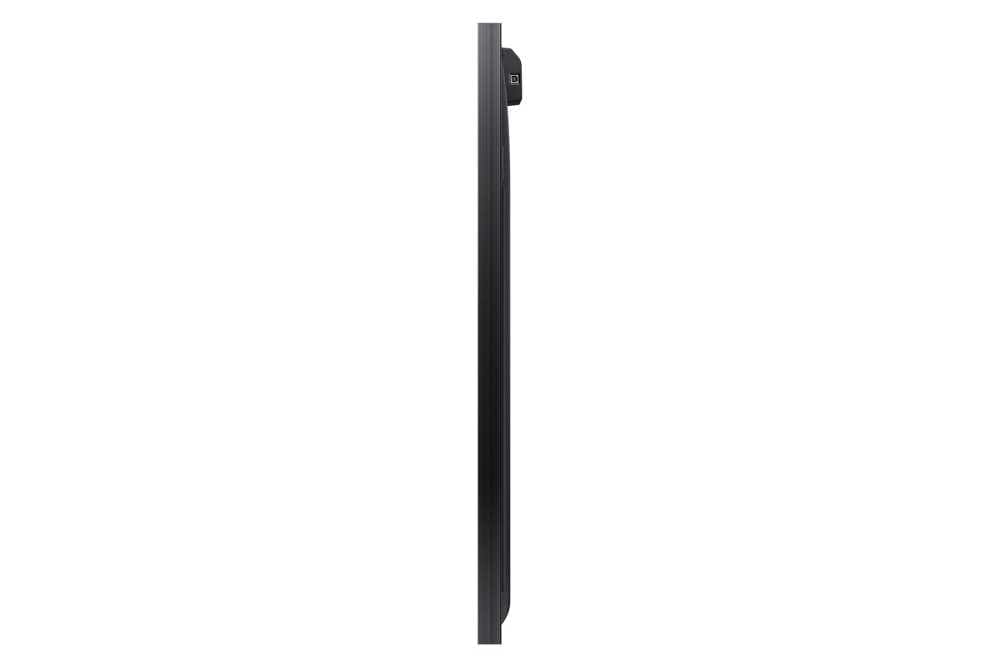

- Width of the frame25 (top/bottom), 20 (side)
- Frame MaterialNon-Glossy
General characteristics
- External Memory SlotN/A
Options
- SupportWMN4070SD, WMN4070SE
- BaseSTN-L3240E
Internal player (MagicInfo)
- MagicInfo Daisychain Videowall SupportYes
Eco
- Energy efficiency classC
Certification and compliance
- EMCClass A
- Security60950
