Description
This screen digital signage outdoor is simple to install and maintain and offers a wide range of possibilities, ready to use.
The series OHF is a solution all-in-one convenient and easy to install, offering many advantages : monitors thin and resilient to objects and dust-penetrating technology to screen anti-glare, built-in power supply protection, anti-vandalism and cooling system ultra-efficient.
The integrated power supply is one of the reasons why the thickness of the unit with all of its components could be reduced to only 85 mm. The hub's internal network and the WiFi really facilitate mounting and connections.
IK10* : a design that is robust and resistant to external aggressions
The advanced protection of the screen thanks to the tempered glass Magic Glass 5 mm-certified IK-10 significantly increases the resistance to the impact of the outside.
The free space between the glass, Magic Glass and the LCD panel prevents any damage to the screen if the glass still had to break up. On request, the resistance to degradation can be further increased with the glass Dual Protection Glass.
*The code IK indicates the resistance to the impact of the outside, on a scale of 0 to 10 (10 being the maximum protection level).

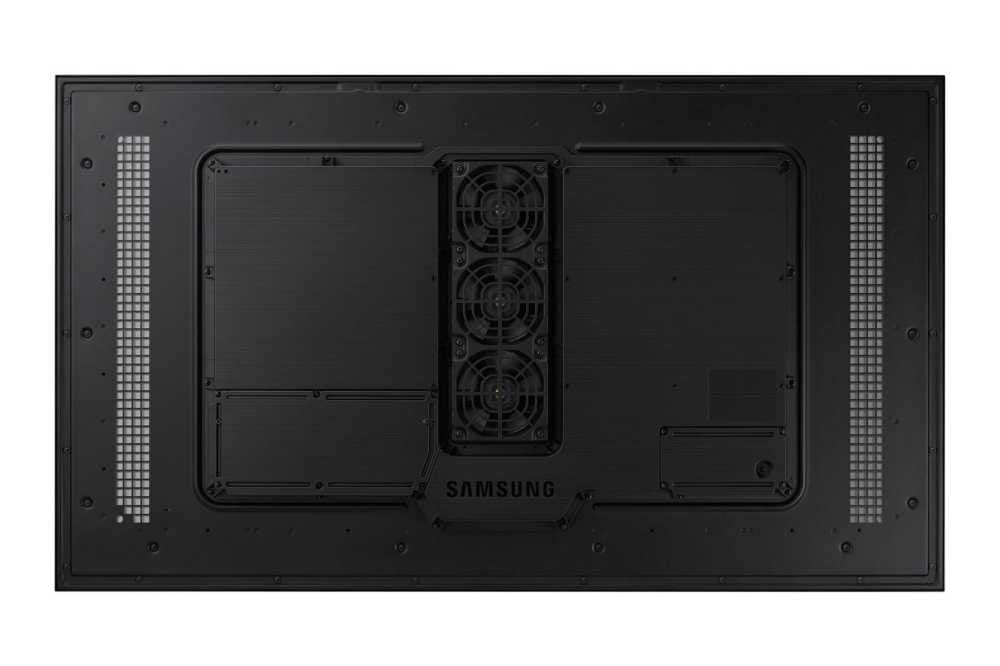

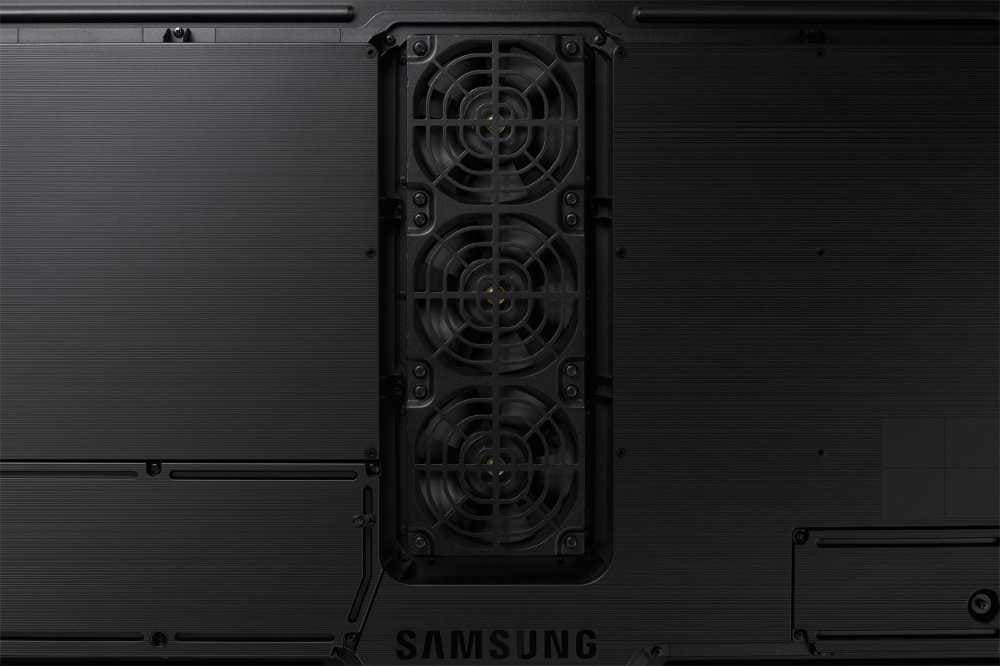

System self-cooling, maintenance-free and without any filter
The series OHF Samsung is characterized in part by its cooling system ultra-modern with heat exchanger design without filter and control advanced temperature management for a more cost effective and efficient.
This screen broadcast digital outdoor groundbreaking marks the end of the thick boxes that were always needed for the display solutions all-in-one.
Impress your audience with outstanding readability
• Ultra high readability of The monitors of the series OHF, with their new glass, Magic Glass, image quality certified TUV and their sensor automatically adjusting the brightness, transmit your messages in an optimal way all the passers-by.
In addition, the powerful screens use a technology of circular polarization that eliminates the problem of visibility of the screen for those who wear sunglasses with polarized lenses.
The series OHF surprises the viewer with its outstanding readability, resulting in a brightness 2500 nits and a very high contrast 5000:1 (all models from 24 inches).
• Anti-reflective This combination of high light output, glare reduction and a high level of contrast is reflected by a visibility far more of your content.
Glass Magic Glass protecting the LCD panels of the series OHF dramatically reduces glare. The picture is more beautiful and bright, even with direct exposure to sunlight.
Reliable in almost all environments
To withstand dust, moisture and other external influences that can damage your screens outside broadcasts or affect their operation, the series OHF has a protection level IP56.
This applies of course to the whole of the display panel. The heat can become a problem if exposed to direct sunlight.
Not to worry with the series OHF, which is resistant to temperatures from -30°C to 50°C thanks to a self-cooling. It works very reliably 24 h/24 and 7 days/7 for years without external cooling or air conditioning.
Powerful options to create content and tools of robust management.
The application MagicInfo Player S4 Samsung assists the user with a new graphics engine, which improves the display performance of the display and ensures smooth transitions between various contents.
MagicInfo Player S4 is also an advanced solution for management of content to play multimedia files, edit, and schedule of the calendars and hours of playback, and much more.
The app is so robust that it allows large organizations to manage multiple signage systems from a server single integrated to monitor and control the park of remote displays from a central station.
Specifications
Detail specifications
Display
- Screen size55"
- Type of slabS-VA
- Definition1920 x 1080 (16:9)
- No pattern (H x V)0.630 x 0.630 mm
- Active display area (H x V)1209.60(H) x 680.40(V) mm
- Response time6 ms
- Display colors8 bit – 16.7 M
- Range of colours72 %
- Scanning frequency H108 ~ 139.5 kHZ
- Pixel frequency maximum297MHz
- Scanning frequency V96 ~ 123 Hz
- Brightness2,500 nit
- Dynamic contrast ratio100,000:1
Connectivity
- HDMI In2
- DP InN/A
- DVI InN/A
- Tuner InN/A
- USB1
- Component InN/A
- Composite InN/A
- RGB inputD-Sub
- IR InN/A
- IR OutN/A
- HDBaseT InLAN
- Audio inputN/A
- Audio outputStereo Mini Jack
- Video OutN/A
- RS232 InYes
- RS232 OutYes
- RJ45 InYes
- RJ45 OutYes
- Wi-fiN/A
- SD Card SlotNo
- 3G DongleYes (3G only)
Power
- Power supplyAC 100 – 240 V~ (+/- 10 %), 50/60 Hz
- Power consumption (off)less than 0.5 W
- Power consumption (power on)Max:500W, BTU:1705W
- Power consumption (standby mode)less than 0.5 W
Dimensions
- Dimensions of package (W x H x d)1260.6 x 731.4 x 85.0 mm
- Dimensions of the packed product (W x H x d)1358 x 845 x 230 mm
Weight
- Set weight52.6 kg
- Weight of the packaged product58.1 kg
Operating Conditions
- Temperature-30~50 ℃
- Humidity10~80 (Non-condensing)
Mechanical specifications
- VESA mount1186 x 560 (Basic), 1200 x 400 (Optional)
- Width of the frame24.9 mm
General characteristics
- SpecialIP56 Certified for Simple Enclosure Outdoor, Protection Glass(IK-10 Level, Anti Graffiti, Infrared Reduce), Polarized Sun Glasses Viewable in any direction, HD Base T for Long Distance Installalling, Portrait /Landscape Installation Support, Lamp Error Detection, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping), Kensington Lock
Options
- Protective glassYes
Internal player (MagicInfo)
- Support MagicInfoYes
Eco
- Energy efficiency classD
Accessory
- IncludedQuick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries
Certification and compliance
- EMCCE : EN55022:2006+A1:2007
- SecurityCB : IEC60950-1/EN60950-1 (EN)
