INTRODUCTION

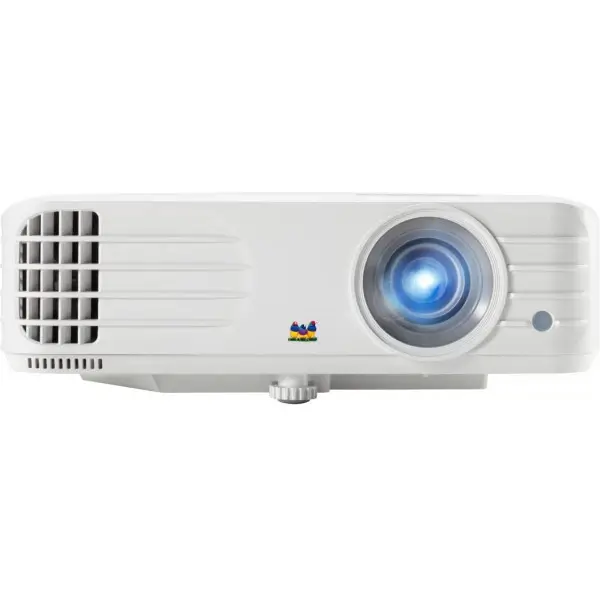

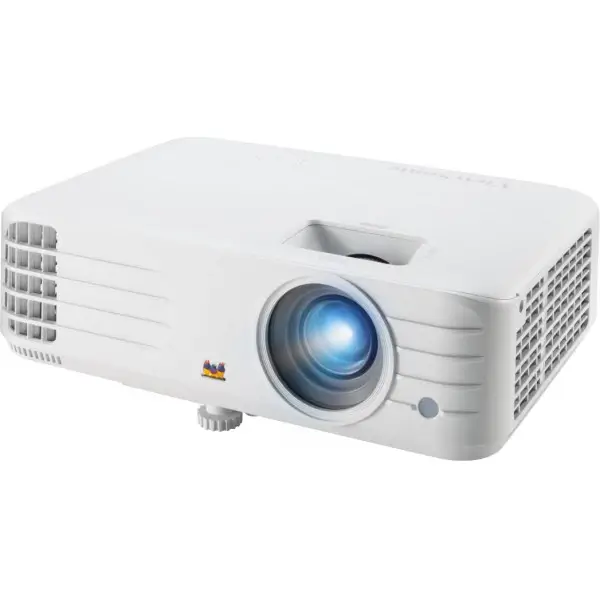

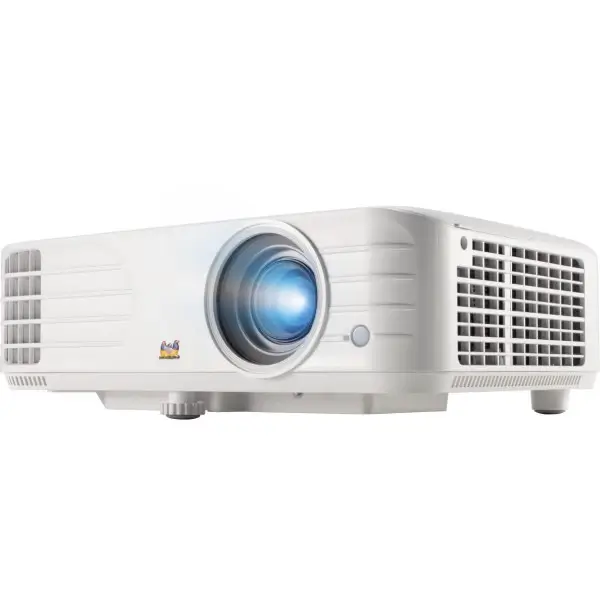

The PX701HD ViewSonic is a projector 3 500 ANSI Lumens with a resolution Full HD 1080p that presents visual performance, impressive in a living room or meeting room very bright.
Sharp and clear images throughout
Its brightness 3 500 lumens ANSI and its high contrast ratio of 12 000:1 ensure that images are clear in all environments, even in spaces equipped with ambient lighting important.
3 500 ANSI Lumens
Resolution 1080p Full HD
More vivid colors
The exclusive technology SuperColor™ ViewSonic offers a wide range of colours to ensure a projection of color-ultra real in dark environments and bright, without affecting the quality of the image.
Technology SuperColor™
[Low total cost of ownership]
Mode energy-saving SuperEco+ for a period of lamp life up to 20,000 hours
The mode and SuperEco+, equipped with the latest technologies aimed at improving the life of the lamp, extending the life of the PX701HD of 15 000 to 20 000 hours of use with an input signal.
- Mode And SuperEco+: If the projector has not received an input signal for 5 minutes, projected images are obscured by 40 %, which allows to extend the life of the lamp is 20 000 hours on average, thus providing a reliable use in the long term.
20 000 hours of use
[Ease of use]

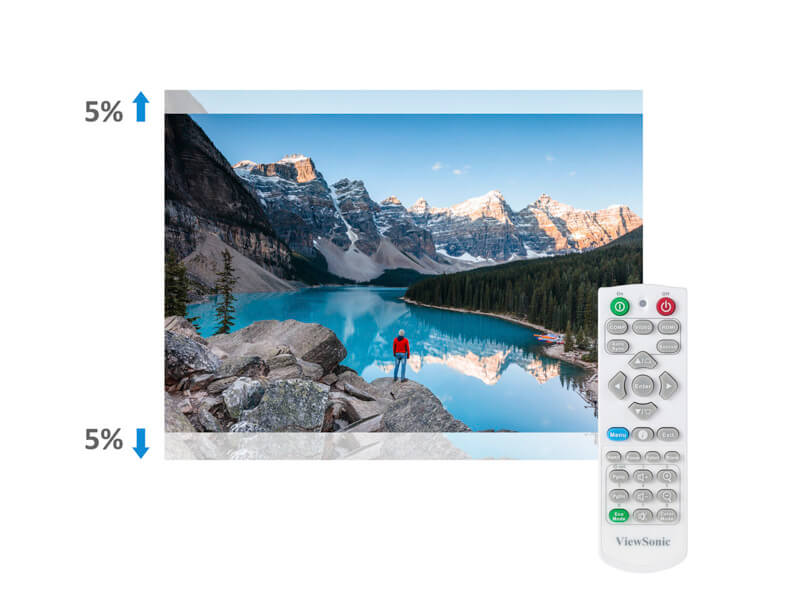

Flexibility in the projection of the image
The PX701HD allows for adjustment of theimage vertical flexible to 10 %, so that users can move the image up or down without distorting it through the remote control, which facilitates and accelerates the installation process.Lens Shift vertical lens
Customization of the color profiles for use with vColorTuner
Through the exchange of color profiles based on the cloud, users can create their own color profile that matches their preferences and share with other people.
In addition, users can download different profiles from their projectors, and set them as their own.
vColorTuner
User Modes customized according to your color preferences
Apart from the display mode ViewSonic default, two user modes additional support has been added to allow users to save their preferred settings. Total 7 color modes can be saved.
User Modes custom

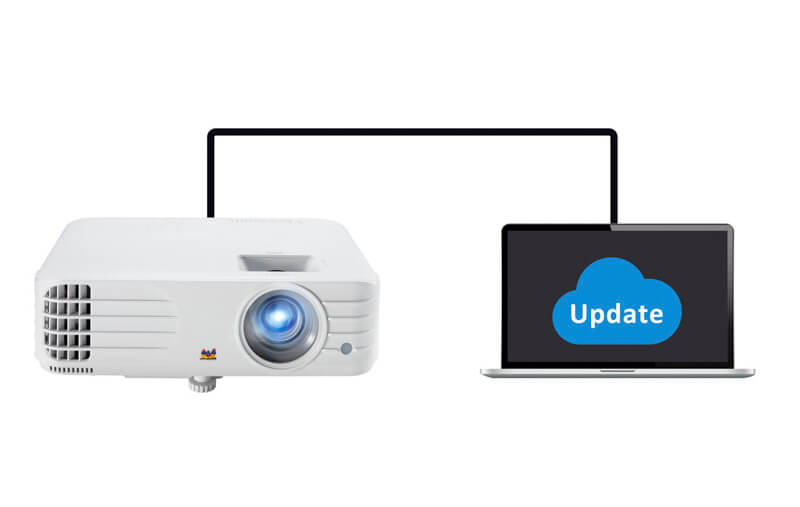

An easier way to update the software of the projector
The software update of the projector ViewSonic is available online and enables you to maintain easily the firmware of your projector up to date ; you don't need to bring your projector to an after-sales service for the software updates.
Software update of the projector

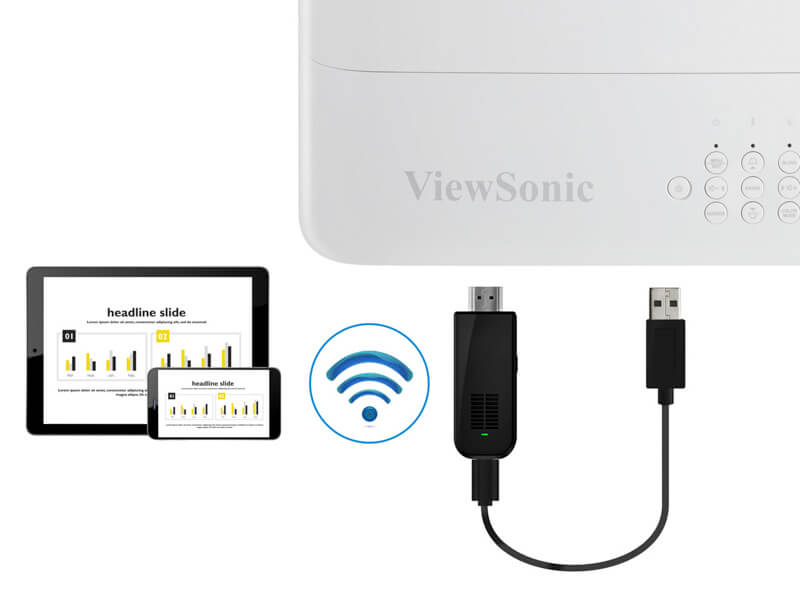

Power Source built-in
It is possible to use the output of a power supply built in USB 5 V/1.5 A to power the security keys HDMI wirelessthis eliminates the need for power adapters separated at the time of the reading in streaming your favorite media contents.
USB power

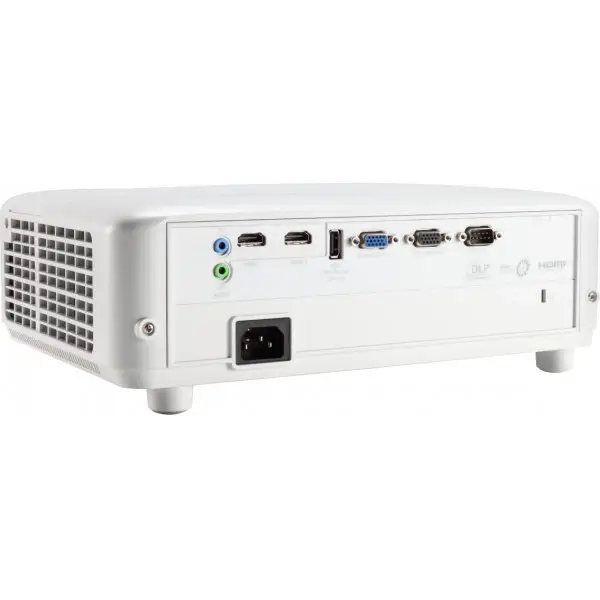

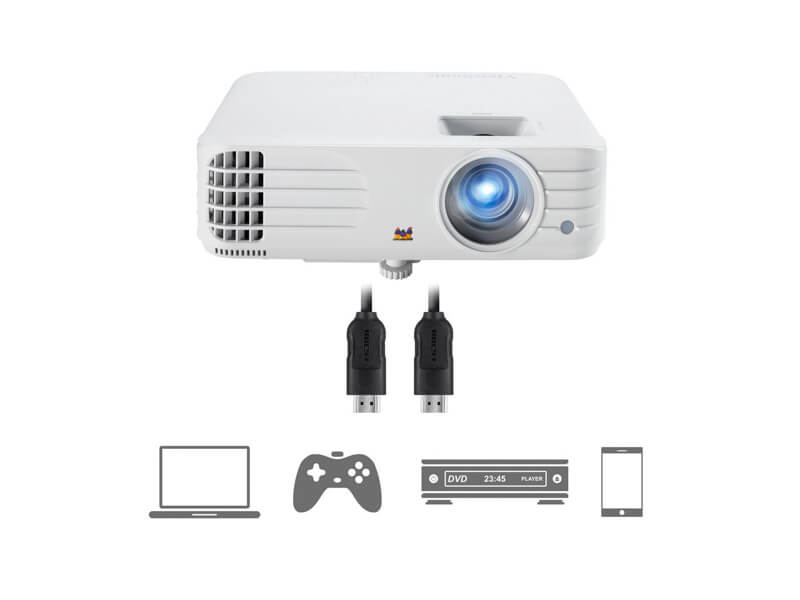

Extended connectivity
Two HDMI ports provide sufficient connectivity to your devices multimedia HDMIin order to provide an experience of the big screen at any time.
Dual HDMI
View immersive 3D
The PX701HD lets you view the3D imaging from readers 3D Blu-Ray and devices that support HDMI such as laptops, tablets, and media players via HDMI connection.
3D Blu-Ray HDMI

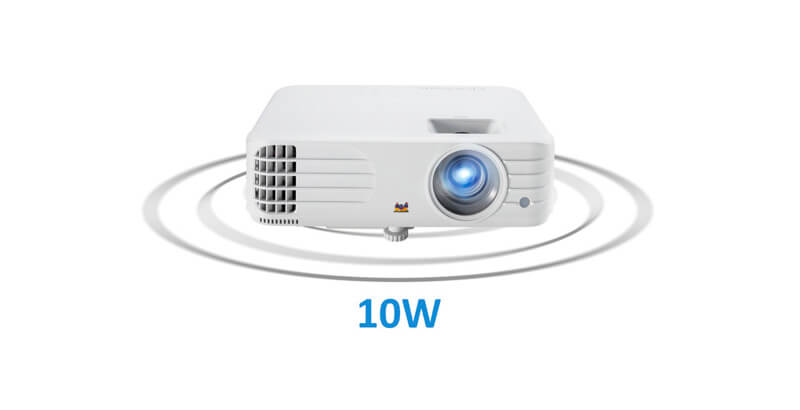

Its powerful
The PX701HD is equipped with a speaker more powerful, providing audio performance immersive.
Speaker 10 W

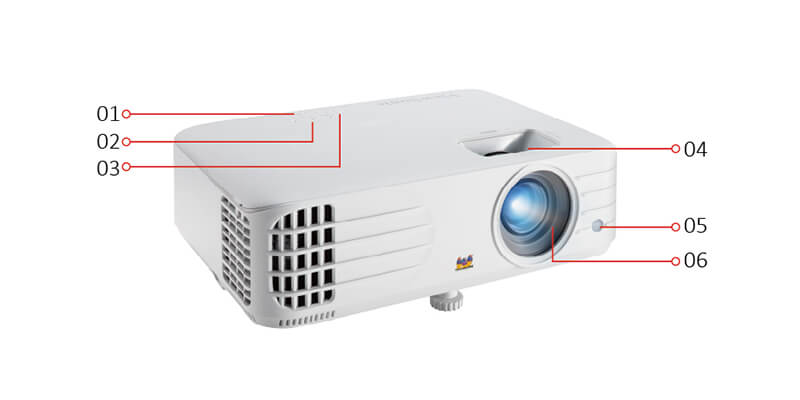

- Keypad
- LED indicator
- Lamp cover
- Security lock
- Zoom/Focus
- Front IR
- Projection Lens

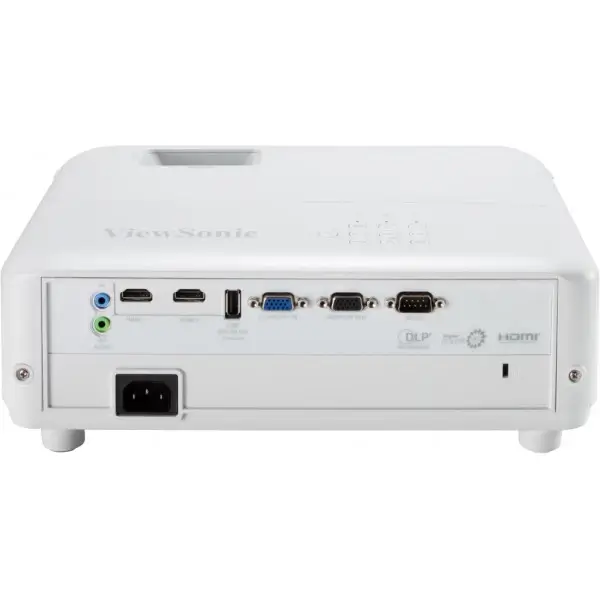

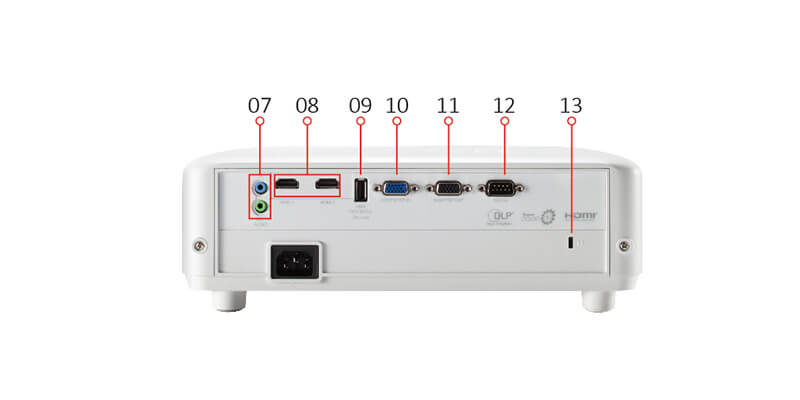

- Audio in/out
- HDMI
- Dual VGA
- VGA out
- Mini USB
- Video
- Kensington® Lock Slot
- RS232
- FeaturesNative resolution: 1920 x 1080
Type DMD: DC3
Brightness: 3500 ANSI Lumens
Contrast with mode and SuperEco: 12000:1
Display color: 1.07 billion colors
Type of light source: Lamp
Lifespan of the lighting source (Regular): 5000
Lifespan of the lighting source (SuperEco): 20000
Lamp power: 203 W
Lens: F = 2.0~2.05, f = 15,843 mm~17,445 mm
Position of projection: 110 % +/- 6 %
Ratio of the focal length: 1,5-1,65
Image size: 30 – 300 inches.
Focal length: 1 m~10,96 m (100" to 3.32 m)
Base: +/-40° (V)
Lens Shift lens V.: Yes (+/- 5 %)
Optical Zoom: 1.1 x
Digital Zoom: 0.8 x ~ 2.0 x
Audible noise (Normal): 31 dB
Audible noise (Eco): 27 dB
Input offset: 16 ms
Supported resolution: VGA (640 x 480) to WUXGA_RB (1920 x 1200)
*Signal suppression reduces
Compatibility HDTV: 480 i, 480 p, 576 i, 576 p, 720 p, 1 080 i, 1 080 p
Video compatibility: NTSC, PAL, SECAM
Horizontal frequency: 15 K~102 KHz
Vertical scanning frequency: 23~120 Hz - InputComputer input (shared with component): 1
Audio input (3.5 mm): 1
HDMI: 2
(HDMI 1.4/ HDCP 1.4) - OutputMonitor output: 1
Audio output (3.5 mm): 1
Speaker: 10W
USB type A (Power supply): 1 (5 V/1.5 A)
- CommandRS232 (9-pin male DB): 1
- OtherSupply voltage: 100-240v+/- 10 %, 50/60 Hz AC
Power consumption: Normal : 300 W
Veille : < 0,5 W
Operating temperature: 0~35℃
Net weight: 2,59 kg
Dimensions (Wxdxh) with adjustment foot: 312 x 222 x 108 mm
Language menu on the screen: English, French, Spanish, thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, traditional chinese, simplified chinese, japanese, Turkish, Portuguese, Finnish, indonesian, indian, Arabic, vietnamese - Standard accessoryPower cord: 1
VGA cable: 1
Remote control: 1
Quick start Guide: 1 - Optional accessoryLamp/light Source: RLC-119
