Description
Processor main features HD video LVP615 of Videowall :
1. Video processor LED professional Faroudja Real Color of the new generation. 10+ Bit Faroudja DCDI Cinema Processing and Faroudja TureLife Video Enhancer
2. Two modes of signal switch : a button to switch and pretake + take switching
3. Switching transparent, Fade-in/Fade-out & Blend switching in different input signals
4. 3 custom Modes to display PIP/PBP to switch with a single button. Display PIP/PBP
5. The function AIAO (Any In Any Out) allows you to display any image captured in a specific area of the screen
6. The user defines the output format to achieve the maximum horizontal width of 3840 or vertical height 1920
7. The user defines DVI EDID to realize a display pixel to pixel
8. Loop DVI to install several units in parallel to drive a network of LED undefined. Synchronous technology of the frame, not alignment failed or delay between two outputs of the image adjacent to it.

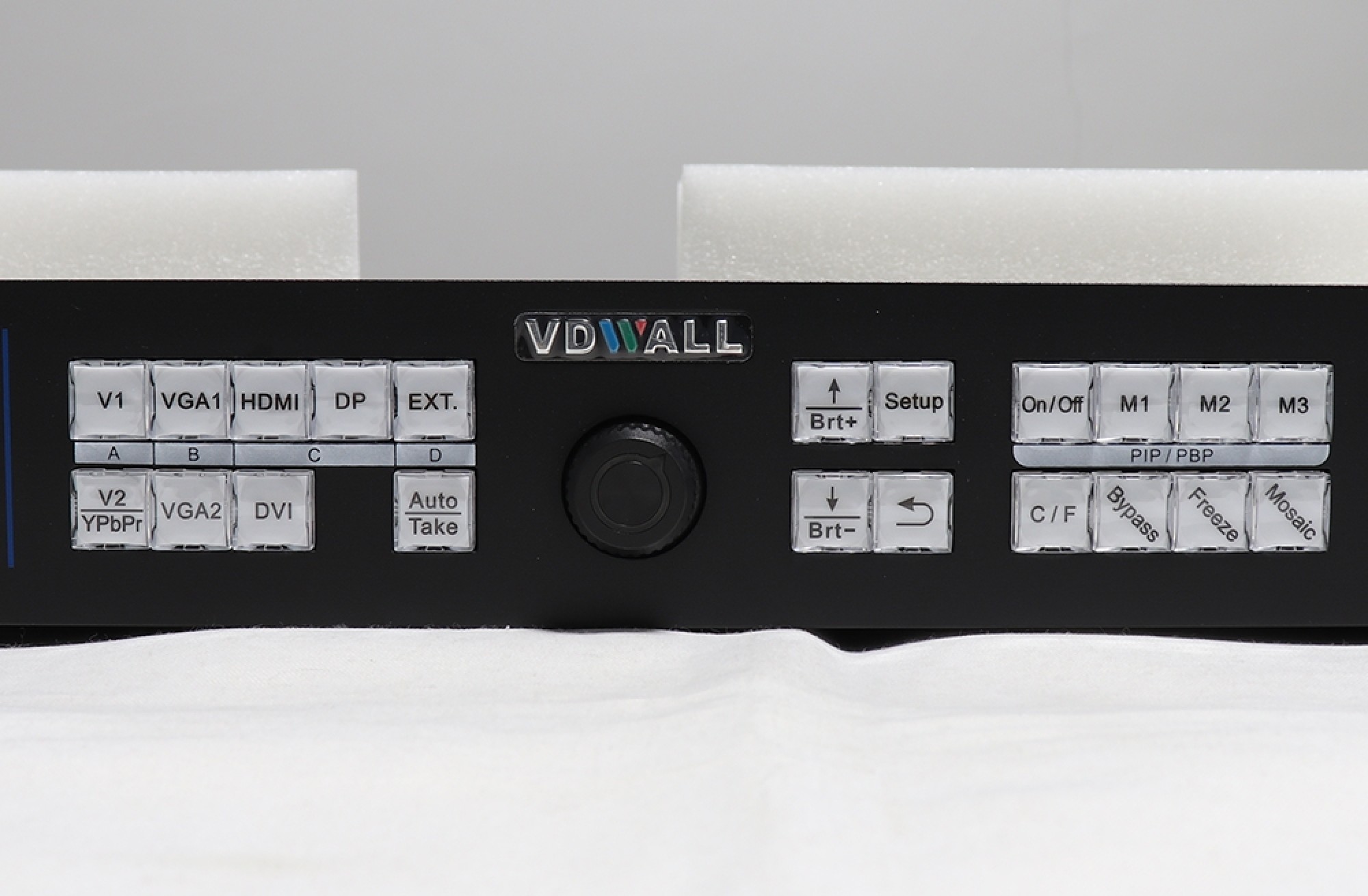

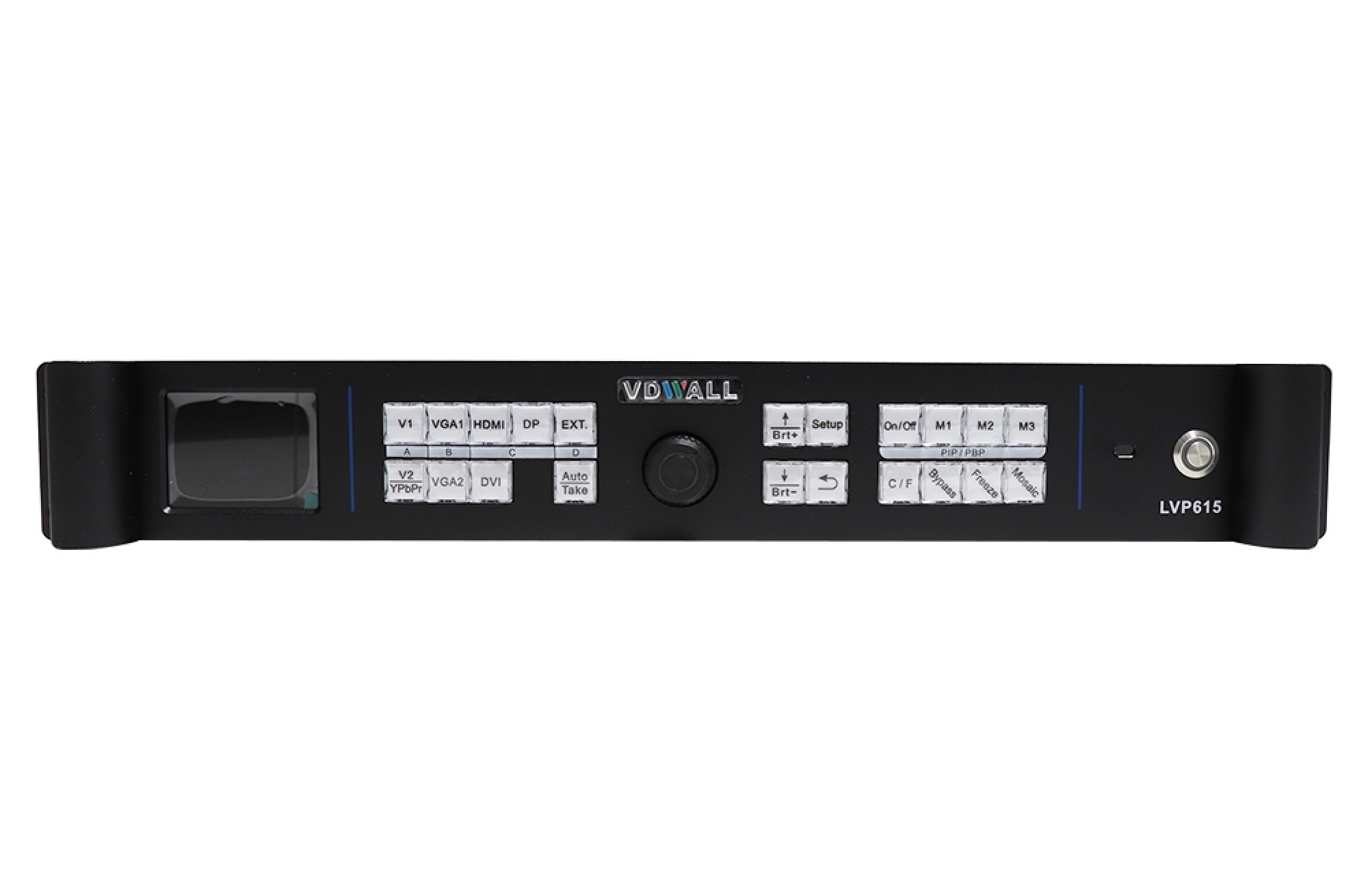

9. Practical operation panel/PC software/infrared remote control/Wi-Fi
Parameter of video processor HD Videowall LVP615 :
| Contributions | ||
| Numbers / Type | 3 × CVBS 1 × S-Video 1 × YPbPr 3 × VGA (RGBHV) 2 × DIV/HDMI (1.3 a with HDCP) 1 × DVI-1 (HDMI) |
|
| Video system | PAL/NTSC | |
| Scope composite video / Impedance |
1V (p_p)/ 75Ω | |
| Scope S-video / Impedance |
Y：1.0 V（p_p）/ 75Ω，C：0.35 V（p_p）/ 75Ω | |
| FormatVGA | PC（VESA） | ≤ 2048×1152@60Hz |
| Scope VGA / Impedance | R、G、B = 0.7 V（p_p）/ 75Ω | |
| DVI Format | SD/HD（CEA-861） | ≤ 1920×1080@60Hz |
| PC（VESA） | ≤ 2048×1152@60Hz | |
| Format HDMI 1.3 (with HDCP) | SD/HD（CEA-861） | ≤ 1920×1080@60Hz |
| PC（VESA） | ≤ 2048×1152@60Hz | |
| Format YPbPr | SD/HD（CEA-861） | ≤ 1920×1080@60Hz |
| Scope YPbPr / Impedance | Y= 1.0 V（p_p）/ 75Ω Pb= 0.35 V（p_p）/ 75Ω Pr= 0.35 V（p_p）/ 75Ω |
|
| SDI Format | SDI-SMPTE 259M-C | 576i at 50 Hz
480i at 60 Hz |
| HD-SDI 3G-SDI |
HDSDI-SMPTE 292M SMPTE 274M/296M SMPTE 424M/425M |
≤1920 x 1080@50Hz / 60Hz |
| AUDIO range / Impedance | 2.0 Vp-p / 10KΩ | |

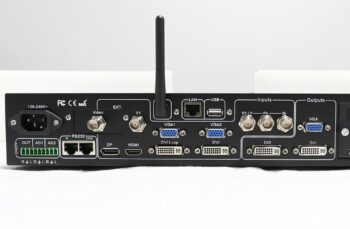

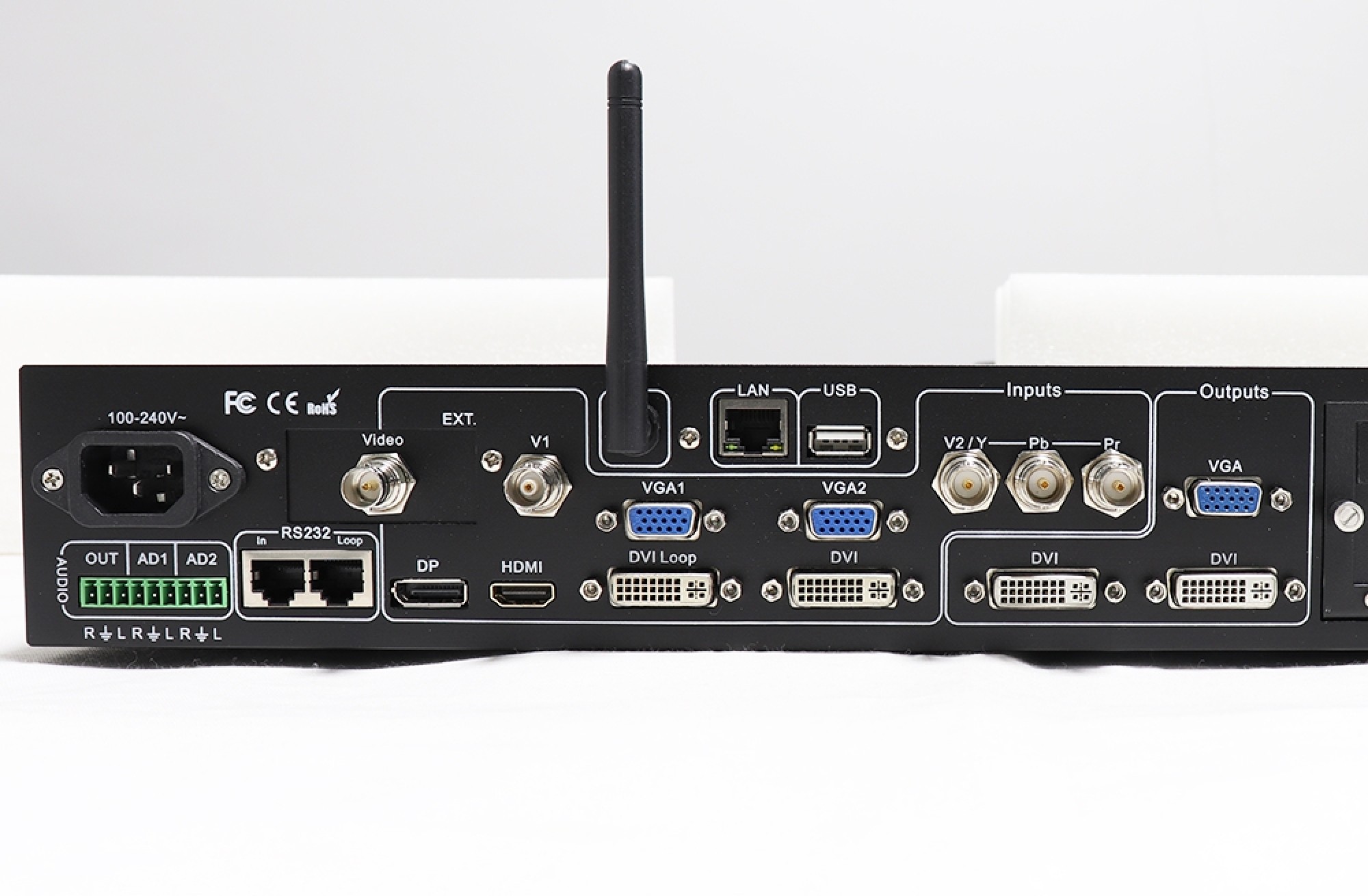

| Input connectors | VGA : 15pin D_Sub (female) DVI : 24+1 DVI_D YPbPr : BNC×3 Composite : BNC S-VIDEO : 4-pin mini DIN (female) SDI / HD-SDI / 3G-SDI : BNC |
|
| Outputs | ||
| Numbers / Type | 1 × VGA (RVBHV) 2 × DVI |
|
| VGA/DVI | 1024× 768@60Hz / 75Hz 1280× 1024@60Hz / 75Hz 1600× 1200@60Hz 1920× 1080@50Hz / 60Hz 1366× 768@60Hz 1440× 900@60Hz 2048× 0152@60Hz 2304×0086 @6Hz1152@6Hz |
|
| Scope VGA / Impedance | R、G、B = 0.7 V（p_p）/ 75Ω | |
| Output connectors | VGA OUTPUT：Output D_Sub 15pin (female) OUTPUT DVI1：24+5 DVI_I SORTIE DVI2：<S, ?= » » e= », » ?,,= » » styl,= » » lang,= »EN-US » n = » » pa,= » » 6.0pt?= » » mso-bidi-font-size:= » » 14px;= » » font-size:= » » #000000;= » » color:= » » 0pt; = » » letter-spacing:= » » arial;= » » ?font-fami,= » » ly:= » » ,= » »>24+1 DVI_D |
|
| Other | ||
| Control | Panel Button / Button / RS232 | |
| Power | 100-240 VAC 35 W 50/60 Hz | |
| Operating temporary | 5-40 ℃ | |
| Humidity | 15-85% | |
| Dimensions (package) | 145 mm (height) × 370mm (width) × 535mm (length) | |
| Weight (GW) | 5.0 kg | |
| Weight (NO) | 3.2 Kg | |
