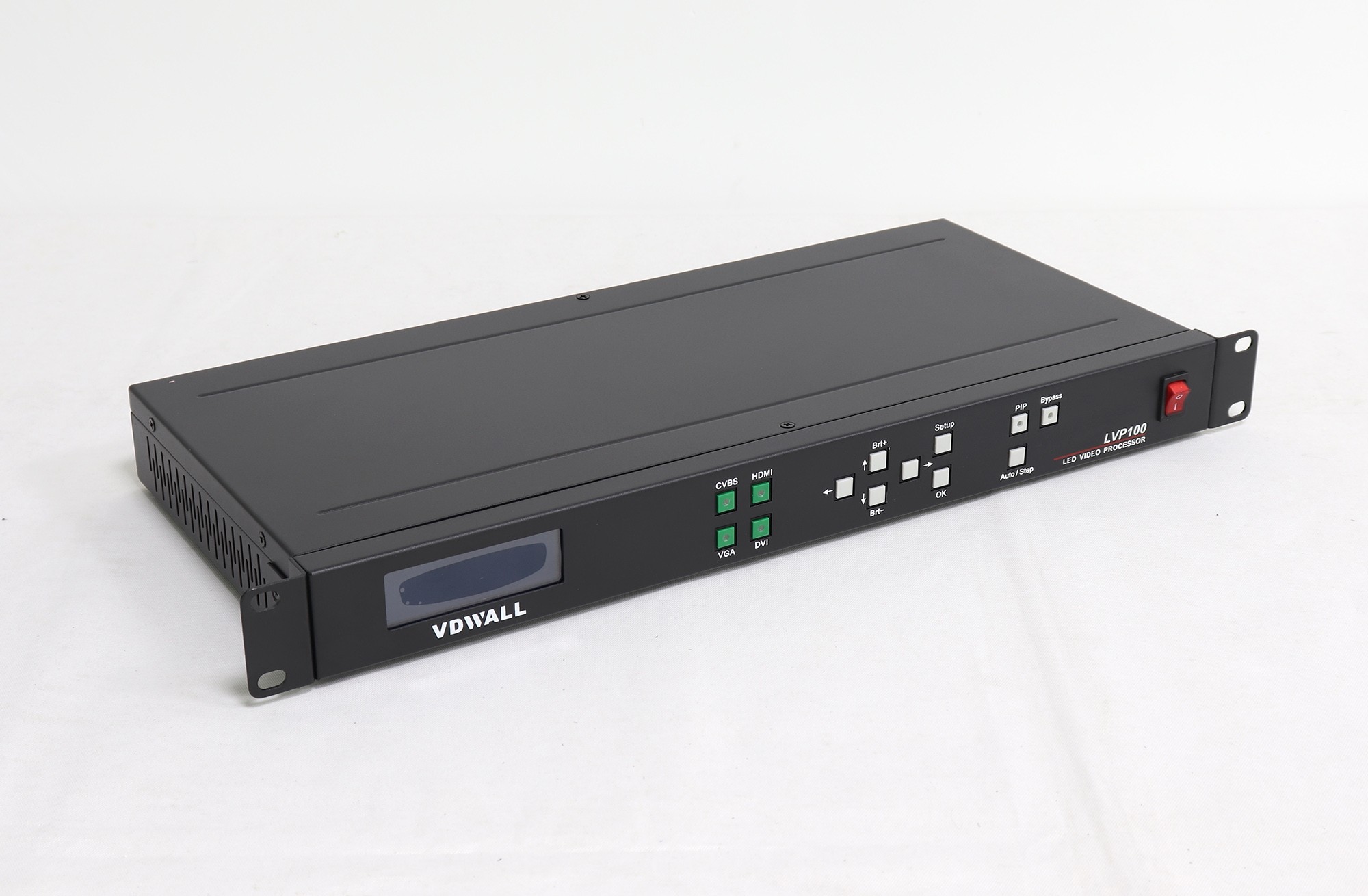

Characteristics of the processor, high-definition video VDWALL LVP100 LED :
1. Faroudja® Real Color® Real Color Image Processing, 10+ Bit Faroudja® DCDI De-interlacing Processing, Faroudja® TureLife™ Augmented Video and Image
2. 4 inputs, 2 outputs, double images, it is sufficient for the application requirements to small LED in most cases
3. It allows access to set the output resolution to respond to the size of the LED screen
4. DVI EDID allows you to freely set the input resolution to succeed the display point-to-point.
5. Display PIP / PBP of 2 images, 3 modes double image custom preset
6. Switching seamless, fade in and fade output

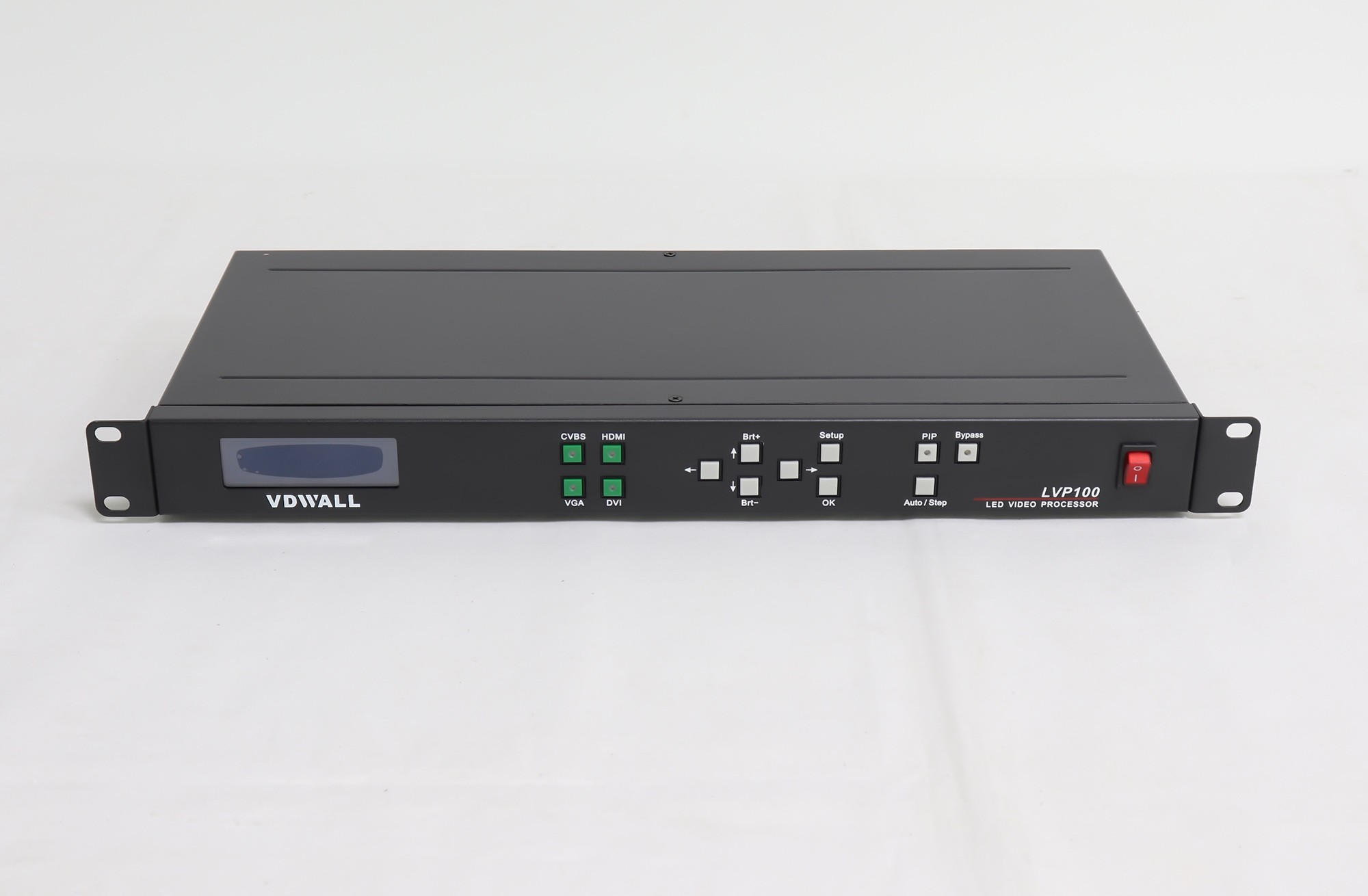

7. Control method : operations on the buttons on the front panel, convenient and flexible for the users of the front panel.
8. It is allowed to put 2 cards shipping within
9. It is allowed to work seven days a week and twenty-four hours out of twenty-four. High reliability and stability.
Specifications of the processor, high-definition video VDWALL LVP100 LED :
Specification of outputs
|
Specification of inputs
|
||
| Quantity/type | 1 × CVBS 1 × VGA （RVBHV ） 1 × DVI （VESA ） 1 × HDMI （VESA/CEA-861 ） |
|

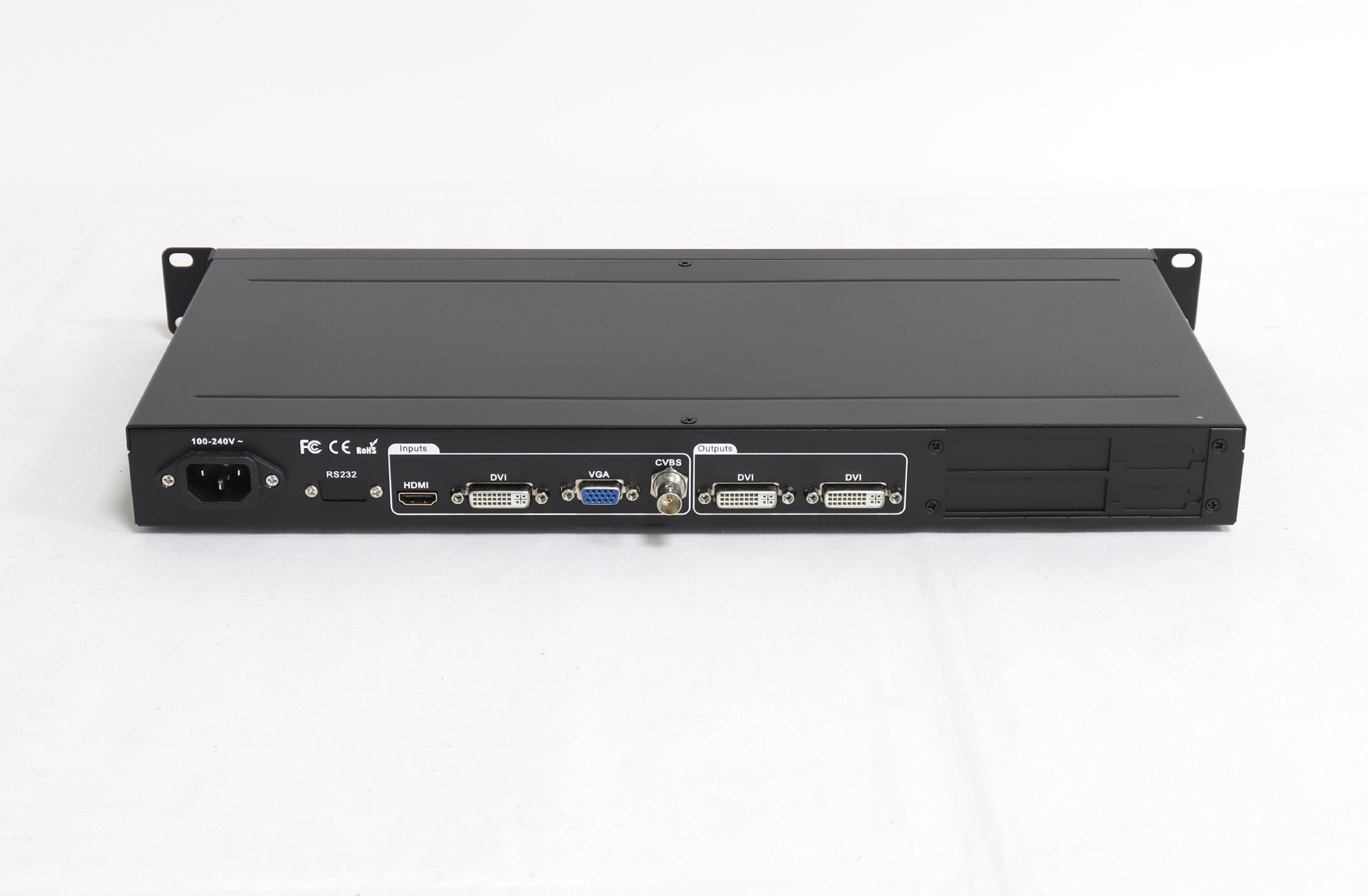

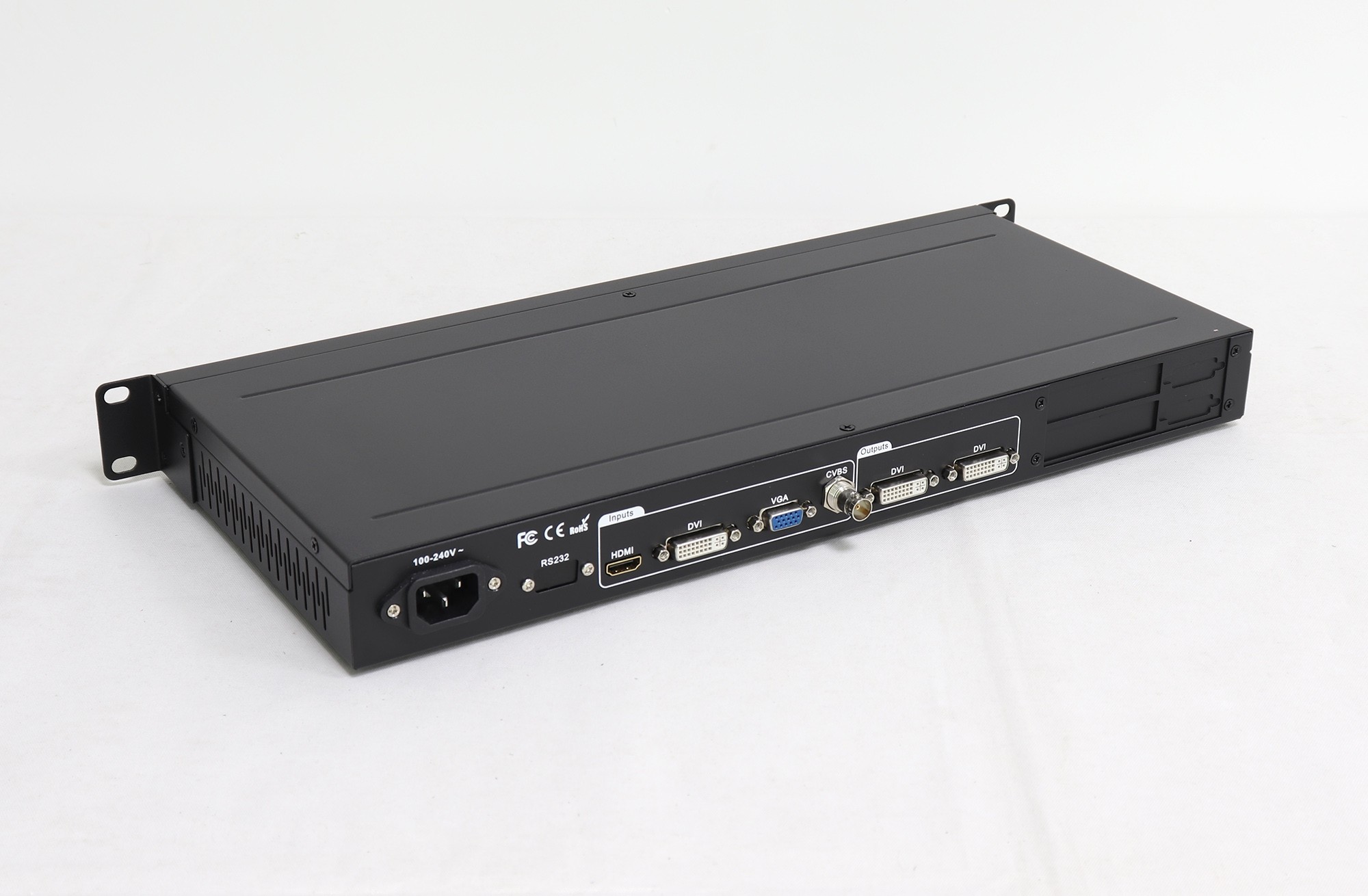

| Composite video input SYS |
PAL/NTSC | |
| Impedance amplitude composite video |
1V (p_p) / 75Ω | |
| FormatVGA | PC (VESA standard) | ≤2048×1152_60Hz |
| Amplitude VGA impedance |
R 、G 、B = 0.7 V(p_p) / 75Ω | |
| DVI Format | PC (VESA standard) | ≤2304×1152_60Hz |
| HDMI Format | PC (VESA standard) | ≤1920×1080_60Hz |
| HDMI1.3 (CEA-861) | ≤1080p_60Hz | |
| Input Interface | CVBS : BNC VGA : 15pin D_Sub (female) DVI : 24+1 DVI_D (female) HDMI : HDMI type A |
|
| Quantity / Type | 2×DVI | |
| DVI Format | 1024 × 768_60Hz / 75Hz 1080 × 1920_60Hz 1200 × 1600_60Hz 1280 × 1024_60Hz / 75Hz 1600 × 1200_60Hz- 1920 × 1080_50Hz / 60Hz- 1366 × 768_60Hz- 1440 × 900_60Hz- 1536 × 1536_60Hz- 1920 × × 1200_60Hz2048 1152_60Hz 2304 × 1152_60Hz 2560 × × 816_60Hz2048 1152_60Hz 2304×1152_60Hz 2560×816_60Hz |
|
| Output Interface | DVI OUTPUT : 24+1 DVI_D | |
| Control Ports | RS232 (optional) | |
| Input voltage | 100-240 VAC 50/60 Hz | |
| Power consumption | ≤25W | |
| Temperature the environment |
0-45 ℃ | |
| Humidity the environment |
15-85% | |
| Product size | 482,6 (L) x 200 (l) x 44 (H) mm | |
| Packaging size | 535 (L) x 315 (W) x 145 (H) mm | |
| Weight | GW : 4 Kg, NW : 2.5 Kg | |

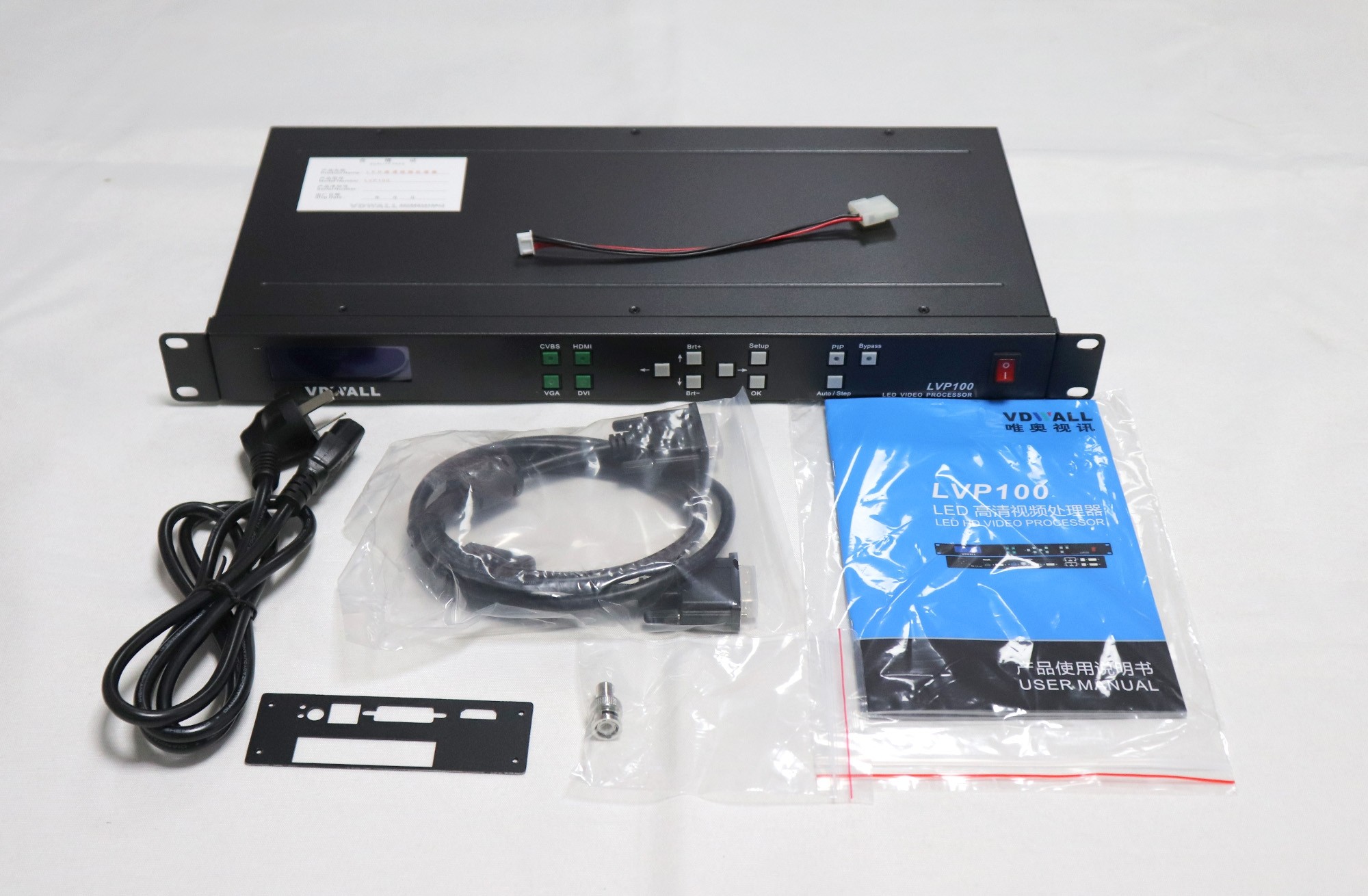

| Standard accessories | Power cord 1.5 m × 1 DVI Cable 1.5 m × 1 User manual × 1 CD of operations, × 1 Adapter BNC-to-RCA × 1 |
|
| Optional accessories | LED sending cards × 2 | |
