Description

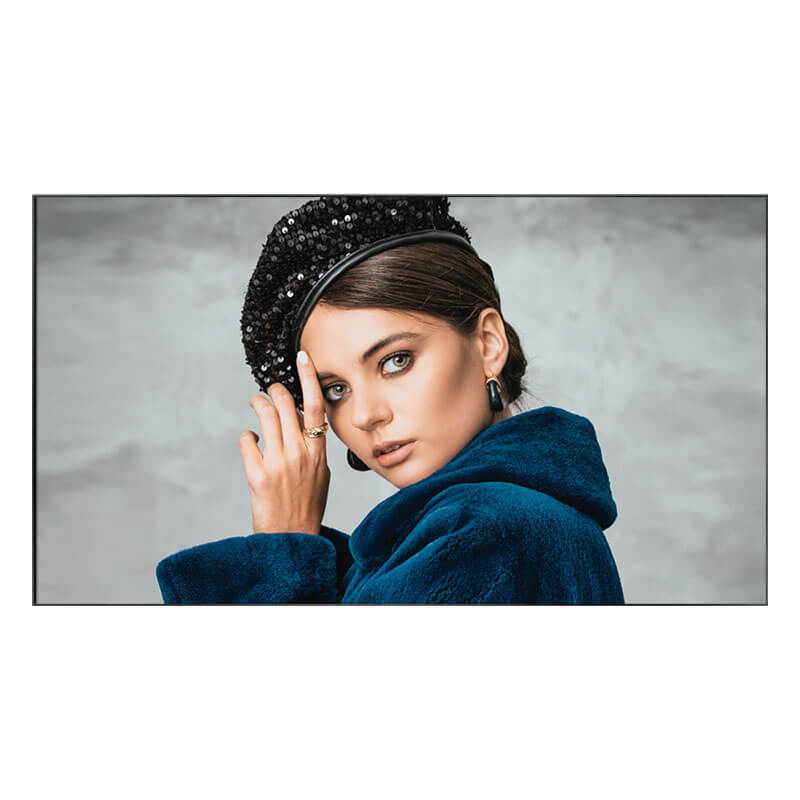

Screens frame with ultra-slim 55-inch PN-55D3 are designed for commercial facilities and professional video walls on a large scale. Thanks to its built-in scheduler, to his slot OPS and function UniWall™, the on-screen video wall high-end PN-55D3 can easily create a video wall of 15×15 displaying digital content without devices third parties. In addition, the panels are anti-glare to a brightness of 500 nits can create walls amazing video even in difficult environments such as public places or control rooms for use 24/7.
VISUAL EXPERIENCE IMMERSIVE
To ensure the audience a visual experience that is uninterrupted, the PN-55D3 is equipped with the latest technology of IPS panel that can run 24/7. The screen also has a transition tiny 3.5 mm between the edges of the screen to create video walls immersive.
ANTI-REFLECTIVE COATING FOR HIGH VISIBILITY
The anti-reflective coating with an index of 28 %, a high contrast ratio, viewing angles, wide and a brightness of 500 nits are used to display crystal clear images and a visibility higher than under the ambient light.
ADVANCED ANTI-BURN-IN™ PATENTED
To combat the effects of burn-in or ghost image, one of the problems with traditional LCD screens, AG Neovo uses his patented Anti-Burn-in™ to avoid burn or ghosting, and to ensure a lifetime of screens even longer.
PARAMETERS GAMMA FOR THE CORRECTION OF SHADES OF COLOR
The screen video wall PN-55D3 can provide real-time adjustment on the spot. In addition, several sets of parameters Gamma, you can produce color tones are smoother and more visible.
COLOR CALIBRATION FOR THE CONFIGURATION OF THE VIDEO WALL
The color of the screen varies according to the changes of ambient temperature or after prolonged use. Fortunately, AG Neovo offers a tool for colour calibration, which detects each area with the help of sensors integrated into the display, and automatically adjusts the colors and the details for the signage installations on a large scale.
* This requires a consultation with a sales representative to AG Neovo.
VIDEO WALLS 15X15 LARGE-SCALE
The function UniWall™ allows the PN-55D3 support native video walls with up to 15×15 screens, which can be easily connected to external sources.
FEATURE DISPLAYPORT 1.2 MULTI-STREAMING AND CONTROL IR/RS232
The feature DisplayPort 1.2 multi-streaming allows users to set up, configure and maintain a video wall 2×2 4K with ease. Users can also easily control multiple screens PN-55D3 with connections for IR or RS232 to external devices.
OPTION OPS BUILT-IN POWERFUL
The slot OPS integrated is always ready to install modules OPS standards. Therefore, the PN-55D3 can easily be upgraded to become a digital signage system, powerful, suitable for various usage scenarios.
FEATURE LANDSCAPE/PORTRAIT
The screens video wall PN-55D3 are compatible with the digital signage, and can be used in either Landscape or Portrait mode for complete control of the direction of the display screen and to meet the needs of various scenarios.
SOFTWARE PID COMMAND & CONTROL
The software PID Command & Control contains interfaces, intuitive user to remotely manage computers, laptops or mobile devices, and allows you to easily create screens video wall. The software also offers features simple color calibration, temperature control, options lock/IR keyboard, and a follow-up to the use for daily maintenance.
Display
top/bottom) / 178°/178°
Frequency
Signal Input
Signal output
External Control
IR output / phone Jack 3.5 mm
Input RS232 / phone Jack 2.5 mm
Output RS232 / phone Jack 2.5 mm
LAN/RJ45 x 1
Other Connectivity
His
/ Audio output S/PDIF
Jack stereo audio (3.5 mm)
Internal speaker / 10 W x 2
Power supply
Power requirements / power AC 100-240V 50/60Hz
On / 79 W (on)
Standby Mode /
Off Mode 0W
Operating Conditions
Storage Conditions
VESA wall mount
Security
Dimensions
Packaging (L x H x P) / 1395,0 x 838,0 x 280,0 mm (54,9" x 33.0" x 11.0")
Weight
Packaging / 35,3 kg (77,8 books)
Certification
THIS
LVD
WEEE
RoHS
REACH
UKCA
CAE
Accessories
Batteries
DVI cable
HDMI cable
Infrared sensor
Power cord
Quick start Guide
Remote control
RS232 cable
Cable chaining RS232
Optional accessories
FMC-02
FMS-01
FMS-02
Wall mount video
VWM-01
VWM-02
Wall mounting
LMA-01
AML-02
Ceiling mount (landscape only)
CMP-01 + LMK-01
Wall mount (landscape only)
LMK-01
LMK-03
Floor mount (landscape only)
FMC-03 + LMK-04
FMC-04 + LMK-04
FMC-05B
FMC-06
FWL-01B
Office Support (landscape only)
DTS-01
