INTRODUCTION

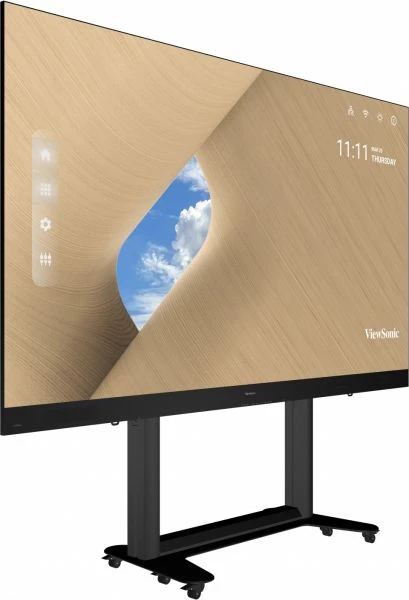

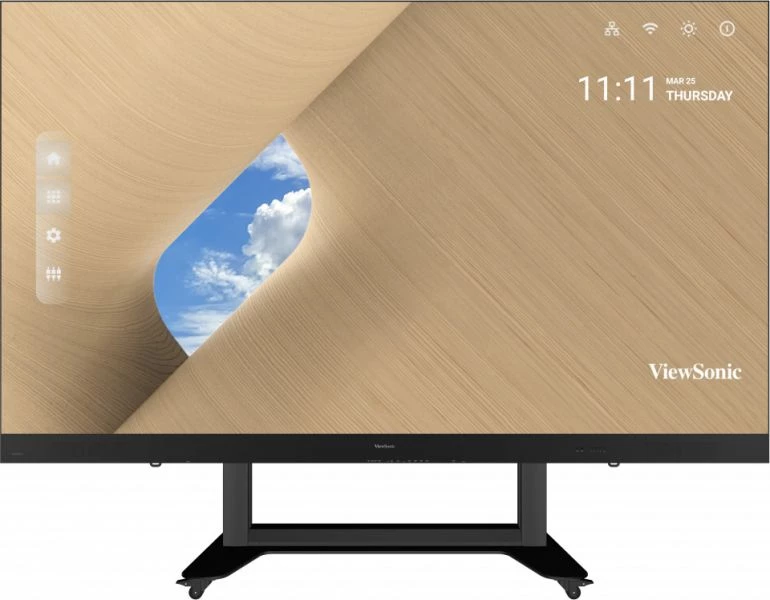

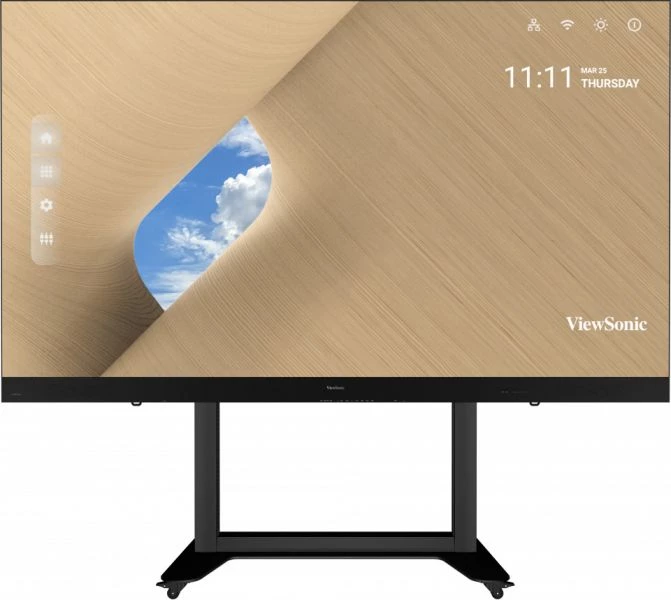

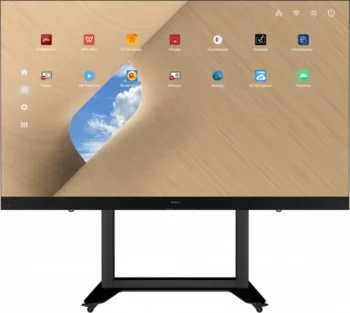

The ViewSonic® LDS135-151 is a kit display solution dvLED 135-inch diagonal pitch of 1.5 mm, allowing instant use, simple installation and maintenance practice, which makes it an ideal solution for events, exhibitions, or any other use in the short term.
The design pre-assembly and motorized support built-in height adjustment allow for an effortless install in just a few minutes.
Thanks to its panels foldable, it allows you to reduce the size of the flight case of almost 50 % compared to the previous generation, minimizing the shipping costs.
It is equipped with speakers Harman Kardon integrated offering sound quality, so be prepared to wow your audience everywhere, boardrooms and receptions top of the range, to the galleries, auditoriums, and other large rooms.
Display Solution dvLED all-in-one ViewSonic
Great ideas that are advancing the world
Kit pre-assembled unit, ready to be used immediately
The LED screen 135" comes pre-assembled with LED modules, cabinets, a case of control of the system and the support of ground motor.
It can be installed and is ready to use in just a few minutes, which saves time and effort and reduce the technical barrier for the installers.
Screen retractable for better mobility
Screen foldable reduces the size of the flight case of almost 50 % compared to the previous generation. Moving between spaces is greatly improved because the series LDS can now be transported not only by the monte-charges the traditional but also in the major lifts, which minimizes the costs and maximizes convenience.
Delivery simple with the flight case mobile
The design of the flight case mobile allows you to not only protect the LED screen advanced, but also to transport it quickly and without effort from one place to another.

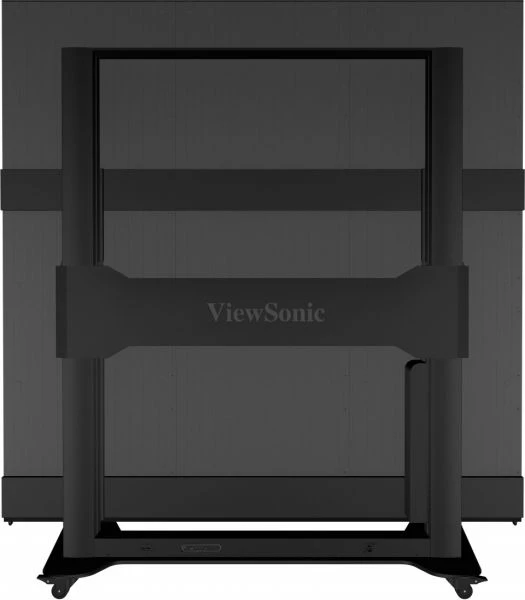

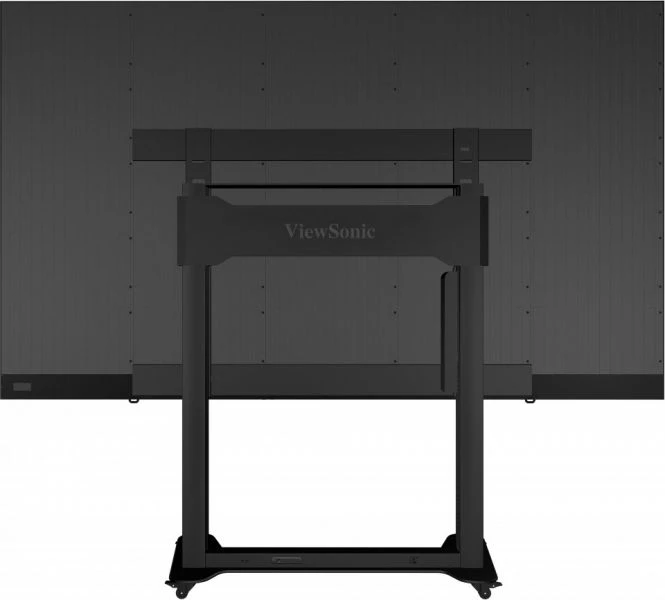

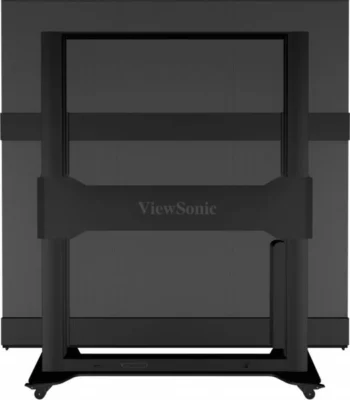

Foot motorized built-in height adjustment
Thanks to a floor stand motor built-in, you can easily adjust the height of the screen at a maximum range of 65 cm by pressing the control buttons.
To facilitate the continued use of the bracket, you can save up to 3 levels of adjustment different.
Easy to move thanks to the wheels silent pivoting on 360°.
Thanks to the wheels silent that swivel 360° and lock push-button, you can move and freely position the impressive LED screen where you want, even after you have unpacked it from its flight case.
Integration all-in-one without any complicated setup
Free yourself of a complicated installation of the power supplies, control systems, etc – all you have to do is to turn on the screen.
Great screen engaging and design without the side edges
With a huge 135” screen, larger than nine 46-inch LCD displays combined, this frameless display seamlessly delivers content without stitching bezels for a more immersive visual experience.
Impress the audience with engaging visual impact from everywhere.
A powerful sound thanks to the speakers, Harman Kardon
Equipped with speakers Harman Kardon studio-quality, enjoy high-fidelity set to perfect clarity, wherever you are. The two sets of 20W, a woofers and tweeters for professionals deliver an impressive sound for a real feast audiovisual.
Solution of wireless content sharing on all devices

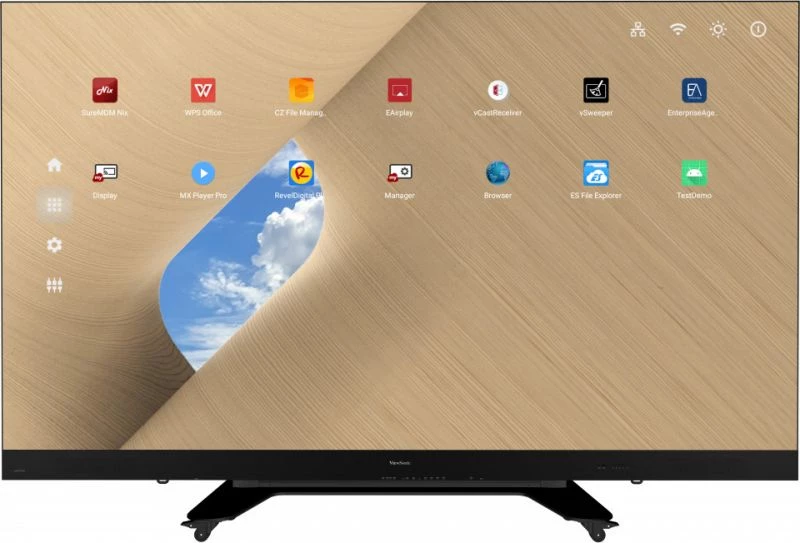

The ViewBoard® Cast-installed allows you to stream content from mobile devices on the screen via wireless networks, either one or more at a time.

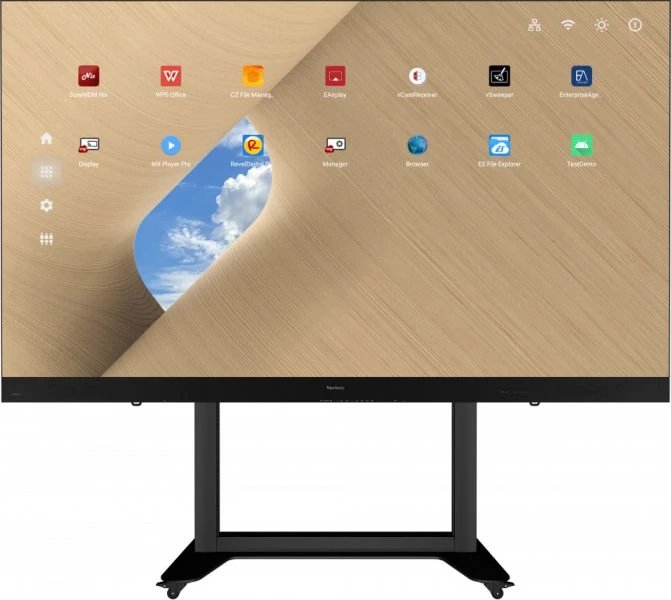

Multi-task with embedded system and Wi-Fi
With the built-in operating system and the Wi-Fi 2.4 G/5GHz, users can easily work in a PC environment familiar to the installation of the applications, the Web browsing, media playback, the connection of wireless devices, and many other things.
Compatible with AV control systems
The screen is compatible with Crestron, Extron, AMX and myViewBoard Manager, which allows easy management and effective configurations to multi-screen from a PC via the LAN connectivity.
Content of multiple on a single screen
Video conferencing and online collaborations will now be more flexible and creative, thanks to the diffusion of several devices on the LED screen. The screen can support scenarios-type Picture-by-Picture (up to 4 different entries) or Picture-in-Picture (one screen on another screen) in real-time*
*Both scenarios work only with the input HDMI source.
Reliable operation 24h/24 and 7d/7
With long life, this screen is a commercial quality professional is designed for reliable use 24 hours on 24, 7 days on 7.
1 – Harman Kardon Speakers
2 – Power Button
3 – HDMI Out
4 – Audio Out
5 – Audio In
6 – S/PDIF Out
7 – IR In
8 – USB 2.0 (5V/1.5 A) x 2
9 – LAN & Control
10 – HDMI 2.0 x 2
11 – HDMI 1.4 x 2
12 – HDMI 2.1
13 – RS232
14 – USB-C (5V/2A)
15 – USB 2.0 (5V/1.5 A)
16 – IR Receiver
17 – Menu Control: Brightness Level
18 – Menu Control: Volume
19 – Control Menu: Input Source
20 – Power Button
21 – Indicator Light
22 – Control Panel: Height Adjustment
23 – 360° Silent Wheels
SPECIFICATIONS
Specifications
Screen size: 135 »
Display area (mm): 3000 (H) x 1687.5 V)
Native resolution: 1920×1080
Technology of the slab: Direct view LED
Type of housing LED: SMD 3 in 1
Wire: Gold
Not pixel (mm): 1.56
Refresh rate: 4440Hz
Brightness (max.): 600 nits (8 levels adjustable)
Contrast ratio (typ.): 250.00069444444
Orientation: landscape
Viewing Angles (typ.): H = 160, V = 160
LED life time (typ.): 100 000 hours
Local storage: A Total Of 64 Gb
(56 Gb of available storage)
Embedded operating system: Android 9.0
Support resolution: VGA (640 x 480) at
1080p(1920 x 1080)
Compatibility HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160P/60Hz
Horizontal frequency: 23-120 kHz
Vertical scanning frequency: 15-135 HzInput
HDMI: x6
(HDMI 2.1 x 1, HDMI 2.0 x 2, HDMI 1.4 x 2, HDMI 2.0 internal x1)
USB Type A: x3
( USB2.0 x3)
Input RJ45 (Internet): x1
IR input: x1
Enter Wi-Fi: 2.4 G/5G Hz
USB Type C: x1
(Video input、 Output power supply (5V/2A))
Audio input (3.5 mm): x1Output
HDMI output: x2
(HDMI 2.0 external x1, internal x1)
Speaker: 20W x2 (Harman Kardon)
Audio output (3.5 mm): x1
USB Type A (power supply): Shared with USB input
(5V/1A x3)
Control
RJ45 (control LAN): x1(shared with the Internet)
USB Type A (Services): x1(shared with the USB input (A)
RS232 (DB 9-pin female): x1
IR receiver: x1Other
Supply voltage: 100-120V/30A~ 50/60Hz or 220-240V/15A~ 50Hz
(varies by country)
Power consumption: 1200W (typ), 2300W (max)
< 0.5W (Sleep), < 0W (Off)
Operating temperature: 0~40℃
Quantity of LED modules: 100
Index of protection against intrusion: IP30
Net weight: 496 lbs
(225 kg)
Gross weight: 728 lbs
(330 kg)
Screen Dimensions (w x h x d): 1800x1948x770 mm(min.)
3010x2598x770 mm(max.)
Dimensions of the packaging: 74,8x80x31,5-inch
(1900x2032x800 mm)Standard Accessories
Power cord: x1
LAN cable (Cat 5 (A): x1 (5m)
IR extension cable: N/D
USB cable (A-B): N/D
Remote control: x1
Quick start Guide: x1
Spare parts: PCB unit LED x7
Tool maintenance: LD-MK-001 x1Optional Accessories
Tool maintenance: LD-MK-001
ViewBoard Cast Button(USB-C): VB-WPS-001
Button ViewBoard Cast (USB-A+HDMI): VB-WPS-003
