Description
Description / features
Our kiosk/totem outdoor is IP65 dust-tight and water, it has a high brightness of 2000 ~ 3000 nits for outdoor use, it is designed specifically to withstand the weather, and to work in the heat, cold, rain, snow and dust. These kiosks/totems digital remotes have an ultra slim design for maximum impact on the screen without distraction.
Our exterior digital signage can help you to :
- Maximize your return on investment on marketing and advertising.
- Provides a lower total cost of ownership over the life of the enclosures.
- The open Solution – Replace, upgrade, or modify the equipment in case of need.
- Performance – Peace-of-mind Efficiency for intensive applications 24h/24 and 7d/7.
- Support profitable advertising.

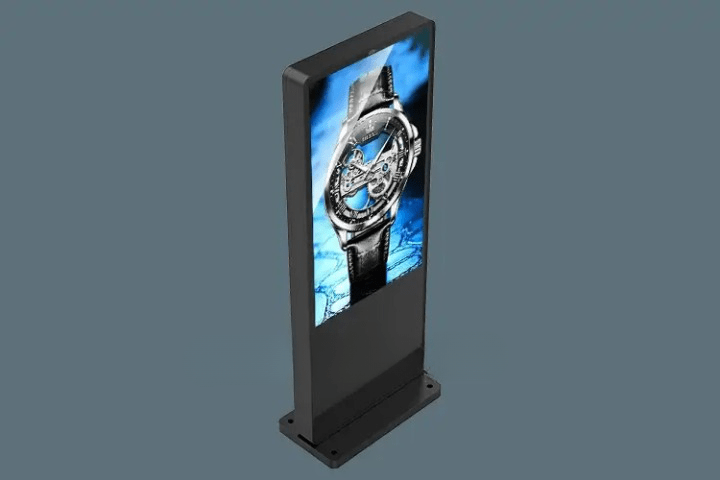

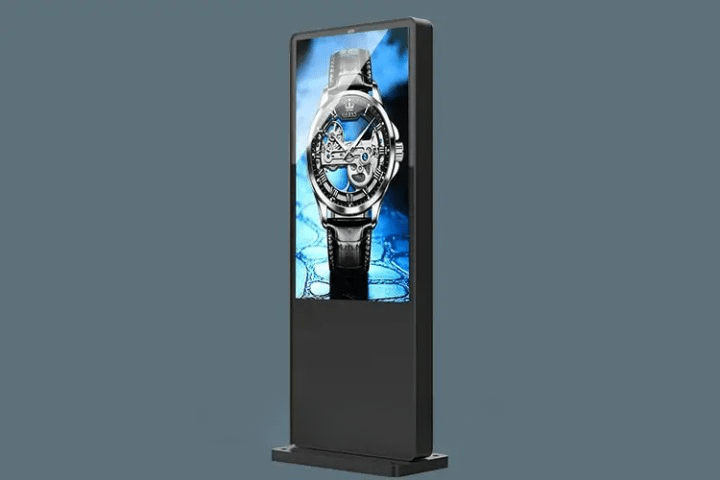

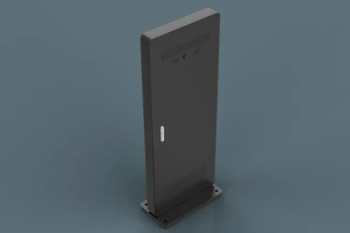

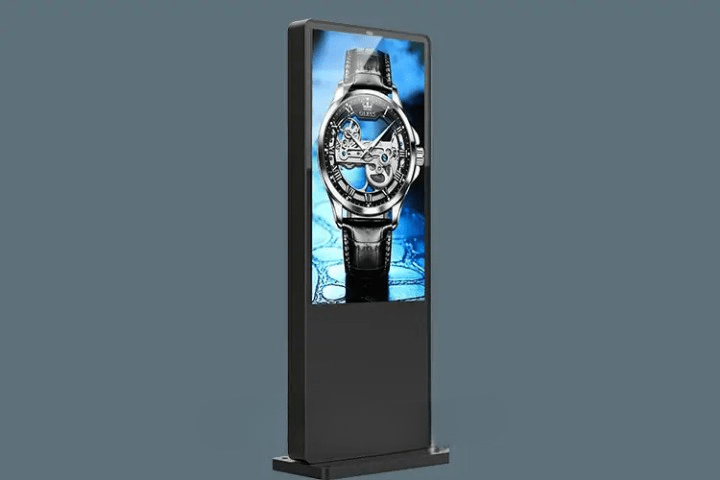

Kiosk / Totem waterproof digital slim
Display ultra-high brightness
2000 ~ 3000nits high brightness and performance of work 24 * 7, visible in direct sunlight, which is an outward display that is readable in the sun
System of automatic control of temperature
Depending on the internal temperature of the machine, the speed of the fan
can be automatically adjusted in order to maintain the internal temperature of
the machine to a normal operating temperature
Framework design ultra-thin
The design of the appearance of the edge ultra-narrow makes the appearance of the whole machine more exquisite

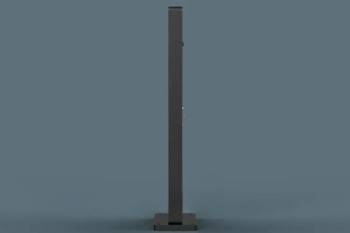

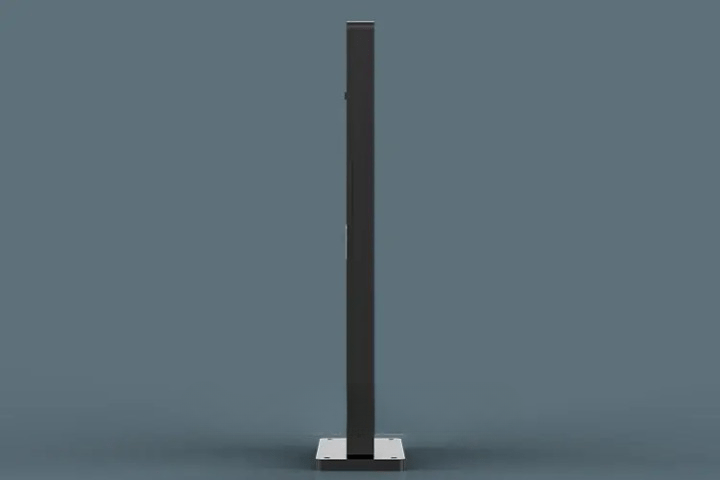

The fuselage is thinner and lighter
At the same time, the thickness of the entire fuselage is also refreshed to 120 mm
Protection stable IP65
Dustproof, sunscreen, anti-corrosion, anti-theft, anti-explosion,
anti-mould organic, make the equipment suitable
at any outdoor environment
Support for multiple functions split screen
Support for multiple screen functions shared Several
the videos and images in split-screen mode can be played back at the same time
Support automatic brightness adjustment
Can automatically adjust the brightness of screen depending
the actual user environment
Waterproof design
The body adopts a new generation of waterproof technology, which can
easily cope with the outside weather conditions changing
High-quality material, excellent finish
The professional process and quality are evident in every detail
System Android or Windows
We provide operating systems flexible according to different applications

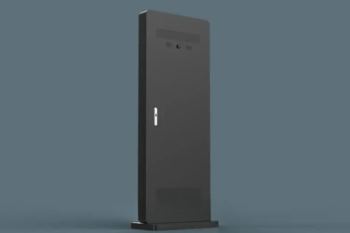

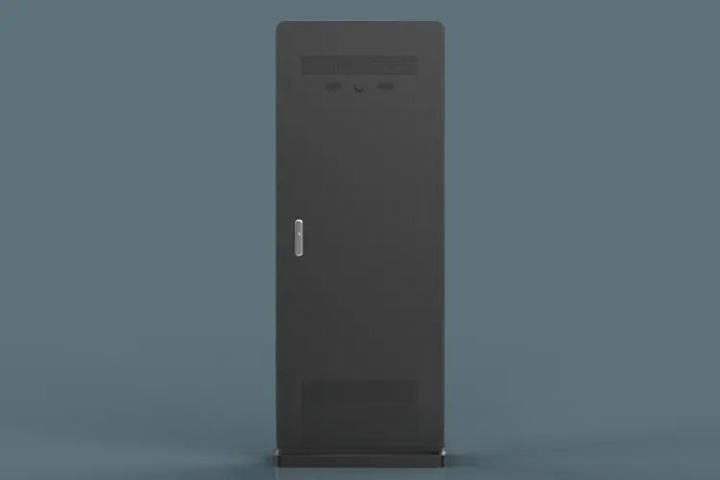

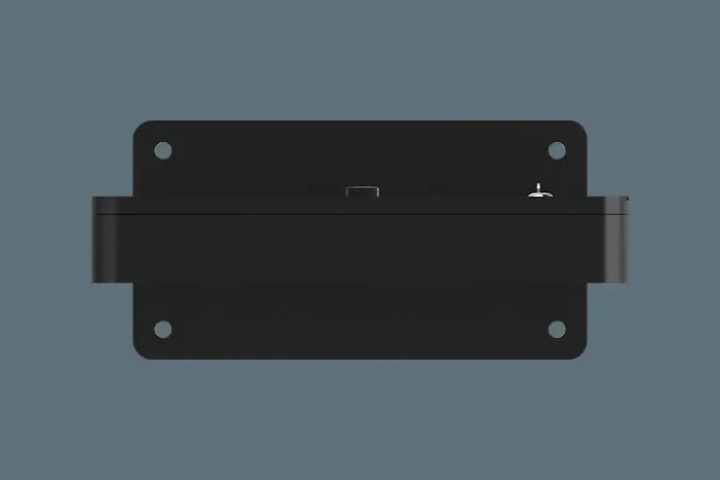

product details

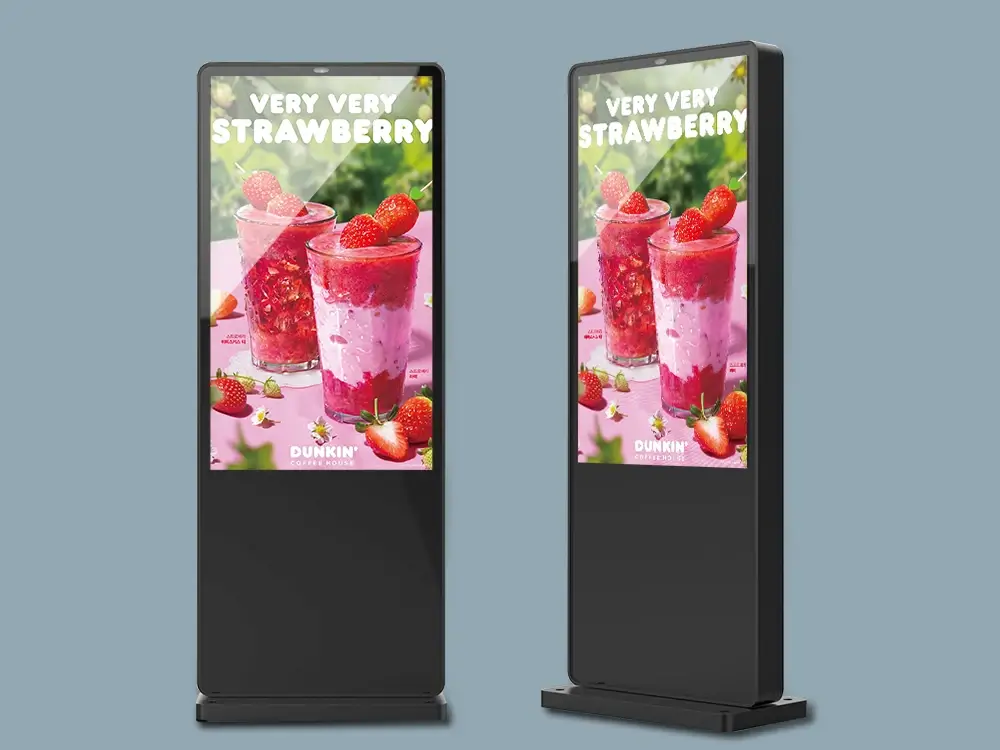

Popular Applications
| Panel | Display size (inch) | 43" | 55" | |
| Resolution | 1920×1080 | 1920×1080 | ||
| Active display area(mm) | 941.2×529.4 | 1209,6 x 680,4 | ||
| Aspect Ratio | 16:09 | 16:09 | ||
| Brightness(cd/m2) | 2000nit | 2000nit | ||
| Contrast ratio (Typ.) | 1000:1 | 2000:1 | ||
| Angle of view (H/V) | 178/178 | 178/178 | ||
| Color | 16.7 M | 16.7 M | ||
| Response time (G to G) | 6ms | 6ms | ||
| Opening hours | 24/7 | 24/7 | ||
| Sound | Speaker | 5W, 8Ω (2 games) | 5W, 8Ω (2 games) | |
| Power | Type | Internal | Internal | |
| Current Source | AC 100 – 240 V~ (+/- 10 %), 50/60 Hz | |||
| Power consumption | Max[W/h] | 100 | 150 | |
| Standby Mode | less than 0.5 W | less than 0.5 W | ||
| Stop | less than 0.5 W | less than 0.5 W | ||
| Specification mechanical | Glass protection | Yes | Yes | |
| Media Type | Foot Support | Foot Support | ||
| Environment | Operating temperature | -40°C ~ 50°C | -40°C ~ 50°C | |
| Storage temperature | -30°C ~ 55°C | -30°C ~ 55°C | ||
| operating humidity | 10 % ~ 80 % | 10 % ~ 80 % | ||
| Storage humidity | 5% ~ 95% | 5% ~ 95% | ||
| Cooling system | Turboventilateur powerful and flow fan cross/air conditioning (optional) | |||
| Protection against hypothermia | Heating (heater aluminium sheet) (option) | |||
| IS | Media player Android | Processor | Rockchip® 3288 (1.8 GHz, quad-core) | |
| RAM | 2G | |||
| Glow | MEM 8G | |||
| USB | HOST USB2.0 (X2) | |||
| local area network | Ethernet 10M/100M (screen network version only) | |||
| External memory | 8gb SD card (up to 32gb) | |||
| Multimedia | Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image files (JPG, GIF, BMP, PNG) | |||
| Resolution media | 1920*1080 | |||
| Wi-fi | Ethernet 802.11 b/g/n (screen network version only) | |||
| System operator | Android 7.1 | |||
| Certificate | Security | CE ROHS IP65 | ||
| Accessories | Included | Scheduling software, Remote control, Key, power Cable, SD Card | ||
| Quality Assurance | 1 year | |||
| Type of packaging | Cardboard box/box with honeycomb + wooden crate | |||
