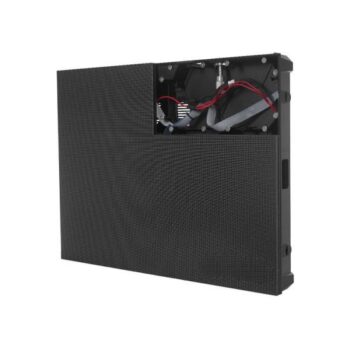

LED screen indoor shopping Hades P2.5,3,3.3,4

Écran LED commercial intérieur

P2.5, P3, P3.3, P4 Hadès est le préféré, simple et durable, la même proportion de source vidéo que l’écran LCD peut remplacer directement l’écran LCD.

Benefits :

1. Cabinet size 640 mm * 480 mm. can be assembled with a variety of great displays 4:3 and 16:9.

2. Mounted directly on the wall, save space and labor.

3. The cabinet is magnesium alloy lightweight.

4. Installation of wall mount, fully usable at the front for the module, power supply and cards.

5. Flatness, easy to install and disassemble

6. The cabinet adopts the internal wiring simple, which performs perfectly in the splicing of the cabinet.

7. Perfect design of the PCB of the lamp, IC high-end, easy to get a gray high refresh rate, brightness.

8. Good heat dissipation, no noise, energy saving and environmental protection.

Applications:

Écran LED commercial // Largement utilisé dans l’affichage commercial, la publicité fixe intérieure, l’auditorium, la salle de conférence, le banquet, le vestibule, la démonstration d’exposition, le transport, le studio, le contrôle de commande.

You are interested ? then your wait is over !

"The display of the prices is not available, please contact us to make an estimate «

Price exclusive of vat

Description


Specifications Écran LED commercial



Products series C-Max
Pixel Pitch 2.5, 3, 3.3, 4mm
Pixel color

1R1G1B

LED Pixel

SMD
Module size 320*160mm
Cabinet Material Magnesium alloy
Cabinet weight 7.5 kg/pcs
Cabinet size 640*480*70mm
Brightness ≤800 nits
Color temperature 6000~8000 K
View angel H:120°, V:120°
Refresh frequency 1920~3840HZ
Gray grade ≥14bit
Working temperature -20℃~50℃
Protection grade Front/Back:IP40
