Description / features

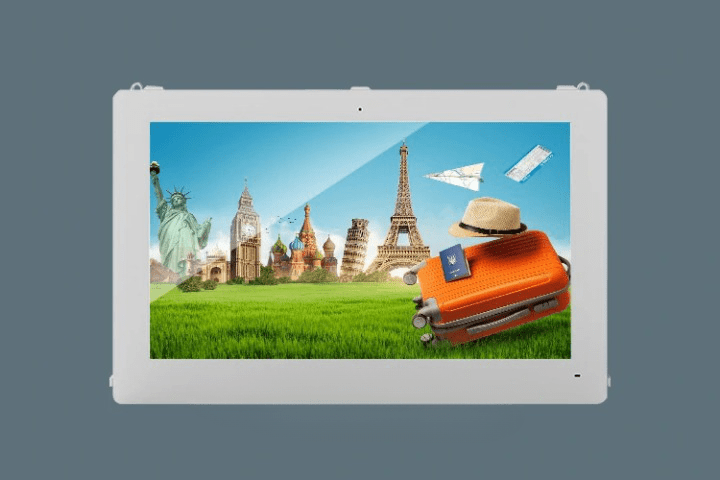

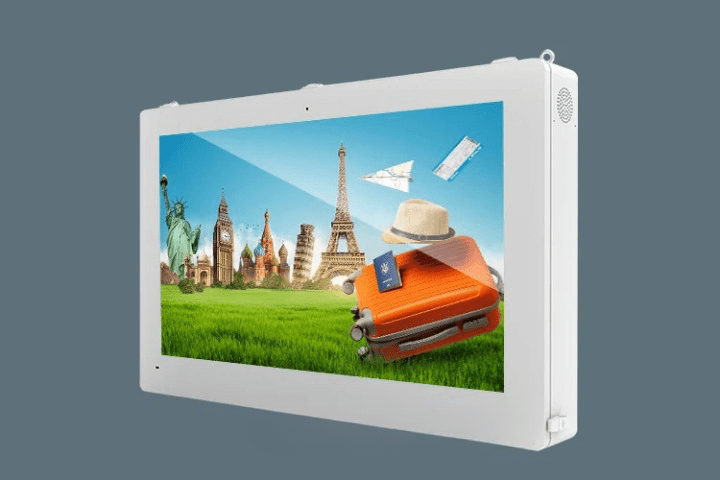

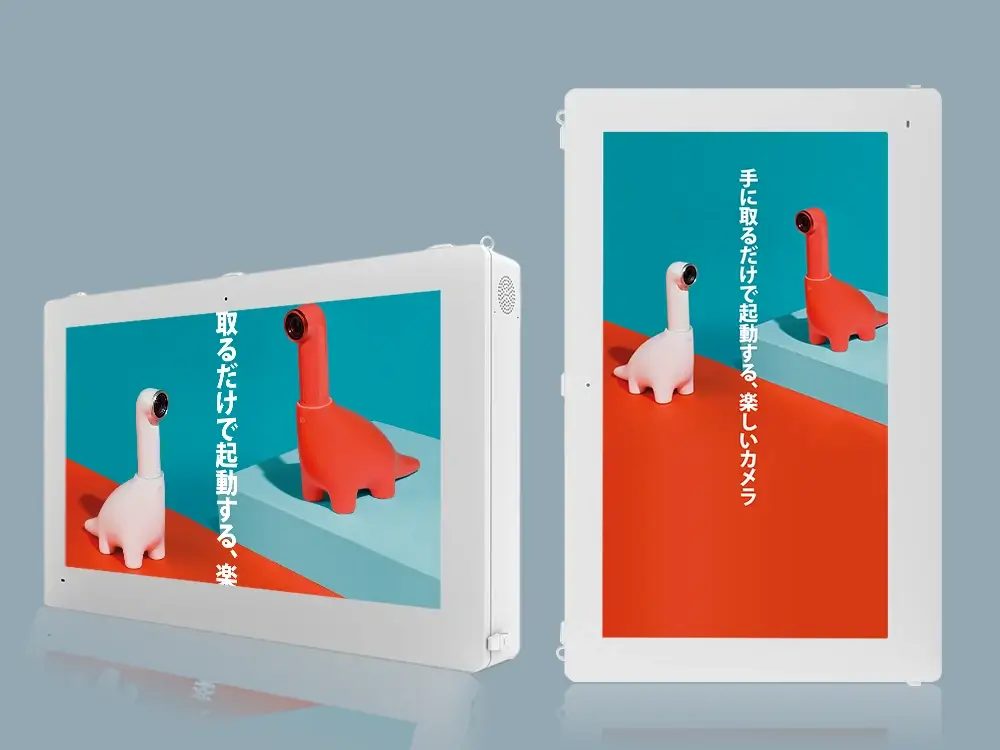

Screen, ultra-high brightness of 2000 ~ 3000 nits placed in portrait or landscape mode and is mounted to the wall/ceiling. It also has a tempered glass, anti-reflective, and is cooled by air. This product is ideal for public transport, shop fronts, hotels, schools, parks, banks, etc.
Features and benefits:
- Protected from -30°C to 55°C with internal heating and optional air conditioning – the case protects your screen to extreme temperatures, hot and cold at any time of the year.
- Protected against the penetration of liquid according to IP65 standards – the case protects your screens in wet conditions, even during the winter months extremes.
- Technology's patented air curtain – air temperature is maintained constant throughout, reducing the risk of damage caused by the points of heat.
- Lasts up to a decade – swap, replace or upgrade the screens as many times as you want without having to invest in new housing.
- Double security locks that are not visible – to your screens are resistant to tampering.

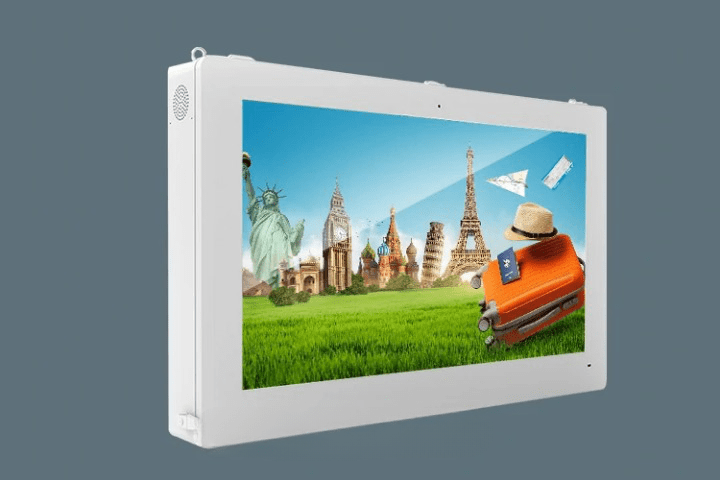

Outdoor screen high brightness IP65
21.5"32"43"49"55"65"75"86"98"
Protection IP66
Impervious to water, dust, photoprotection, lightning, shock, corrosion, theft
Viewing Angle full 178°
the multi-angle brings perfect image quality
Support for multiple screens shared
Support split-screen mode through the software, backup, export-import ADS
Glass explosion-proof
The tempered glass of high quality 4 mm to 6 mm can withstand severe shock and protects the screen.
Screen ultra-clear FHD range of colors 100 %
An image quality, which can display bright colors to more accurately and
precision, and adapt to all environments
Écran haute luminosité
2000 ~ 3000nits high brightness and performance of work 24 * 7, visible in direct sunlight, which is an outward display that is readable in the sun
Intelligent control of the brightness sensor
the sensor can automatically adjust the brightness of the LCD screen according to the
brightness of the external light.
in order to minimize the energy consumption, save energy and protect the environment

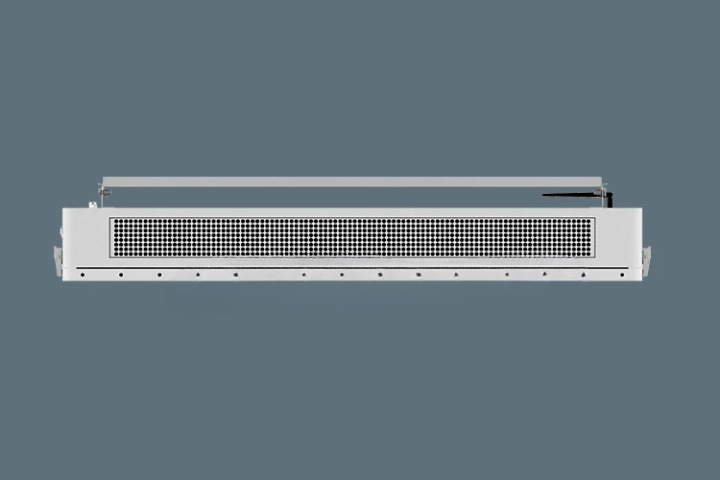

Structure design of ventilation quality
Adopts a structure design of ventilation of military grade. When the temperature of the machine increases, it can cool down quickly without affecting the normal use
System Android or Windows
We provide operating systems flexible according to different applications
product details
Popular Applications
| Panel | Display size (inch) | 32" | 43 » | 49" | 55" | 65" | 75" | 86" | |
| Resolution | 1920×1080
(16:9) | 1920×1080
(16:9) | 1920×1080
(16:9) | 1920×1080
(16:9) | 1920×1080
(16:9) | 3840×2160
(16:9) | 3840×2160
(16:9) | ||
| Active display area(mm) | 700.5(H)
x394.8(V) | 941.2*532.4 | 1073.5(H) x
603.0(V) | 1209.6(H)x
680.4(V) | 1428.5(H) x
803.5(V) | 1650.3(H) x
928.3(V) | 1938.2(H)x
1098.3(V) | ||
| Aspect Ratio | 16:09 | 16:09 | 16:09 | 16:09 | 16:09 | 16:09 | 16:09 | ||
| Brightness(cd/m2) | 1500nit | 2000nit | 2000nit | 2500nit | 2500nit | 3000nit | 3000nit | ||
| Contrast ratio (Typ.) | 1000:1 | 1200:1 | 1500:1 | 2000:1 | 2000:1 | 3000:1 | 4000:1 | ||
| Angle of view (H/V) | 178/178 | ||||||||
| Color | 16.7 M | ||||||||
| Response time (G to G) | 6ms | ||||||||
| Opening hours | 24/7 | ||||||||
| Sound | Speaker | 5W, 8Ω (2 games) | |||||||
| Power | Type | Internal | |||||||
| Current Source | AC 100 – 240 V~ (+/- 10 %), 50/60 Hz | ||||||||
| Power consumption | Max[W/h] | 100 | 110 | 120 | 150 | 260 | 280 | 360 | |
| Standby Mode | less than 0.5 W | ||||||||
| Stop | less than 0.5 W | ||||||||
| Mechanical
Specification | Glass protection | Yes | |||||||

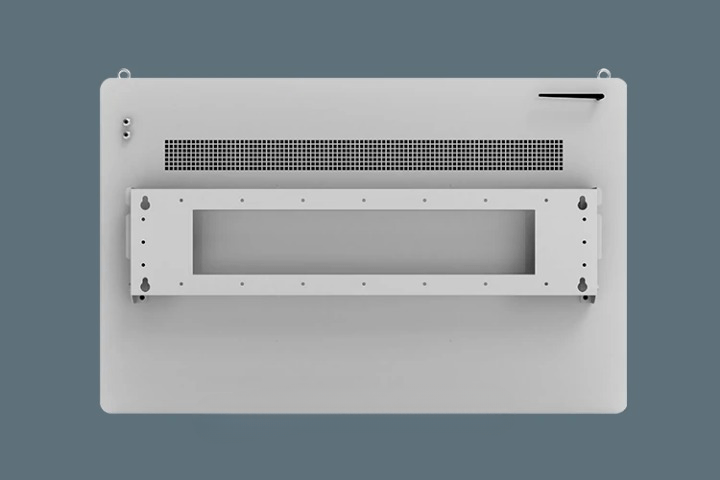

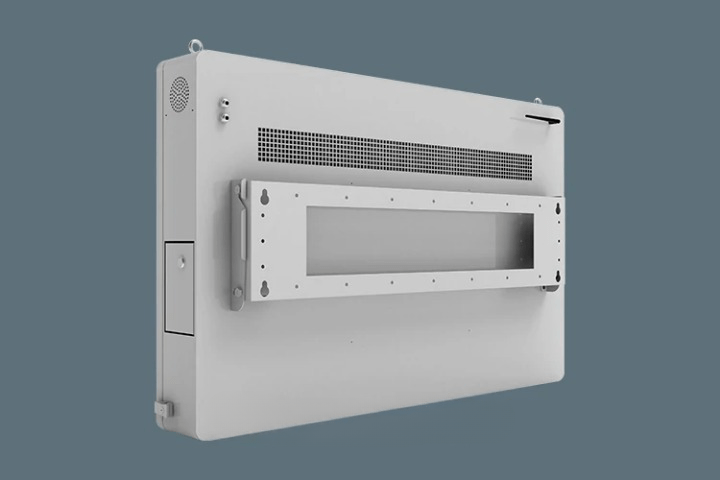

| Media Type | wall bracket | ||||||||
| Environment | Operating temperature | -30°C ~ 50°C | |||||||
| Storage temperature | -30°C ~ 55°C | ||||||||
| operating humidity | 10 % ~ 80 % | ||||||||
| Storage humidity | 5% ~ 95% | ||||||||
| Cooling system | Turboventilateur powerful and flow fan cross/air conditioning (optional) | ||||||||
| Protection against hypothermia | Heating (heater aluminium sheet) (option) | ||||||||
| IS | Media player Android | Processor | Rockchip® RK3288 (1.8 GHz, quad-core) | ||||||
| RAM | 2G | ||||||||
| Glow | MEM 8G | ||||||||
| USB | HOST USB2.0 (X2) | ||||||||
| local area network | Ethernet 10M/100M (screen network version only) | ||||||||
| External memory | 8gb SD card (up to 32gb) | ||||||||
| Multimedia | Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image files (JPG, GIF, BMP, PNG) | ||||||||
| Resolution media | 1920*1080 | ||||||||
| Wi-fi | Ethernet 802.11 b/g/n (screen network version only) | ||||||||
| System operator | Android 7.1 | ||||||||
| Certificate | Security | CE ROHS IP65 | |||||||
| Accessories | Included | Scheduling software, Remote control, Key, power Cable, SD Card, wall mount | |||||||
| Quality Assurance | 1 year | ||||||||
| Type of packaging | Cardboard box/box with honeycomb + wooden crate | ||||||||
