Description

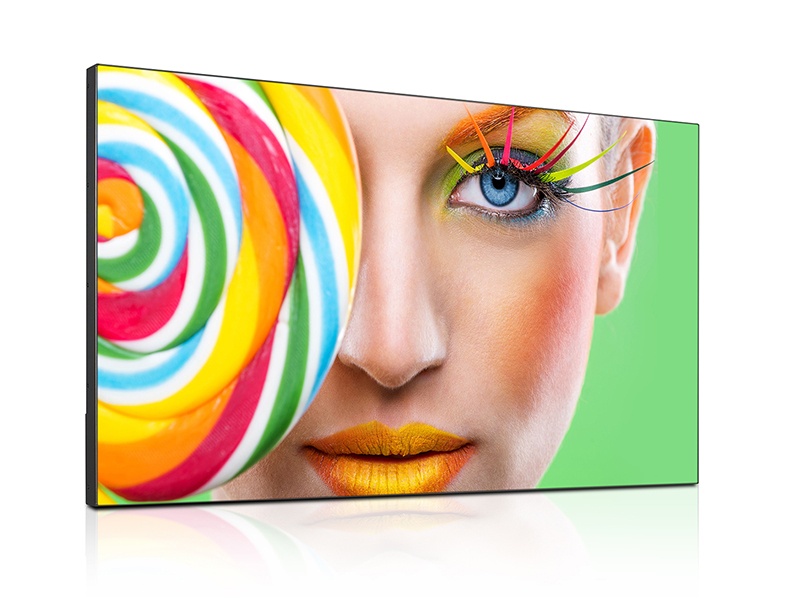

Screen showcase ultra-high brightness LCD DYNASCAN 49" Model DS491LT6 5500 CDL

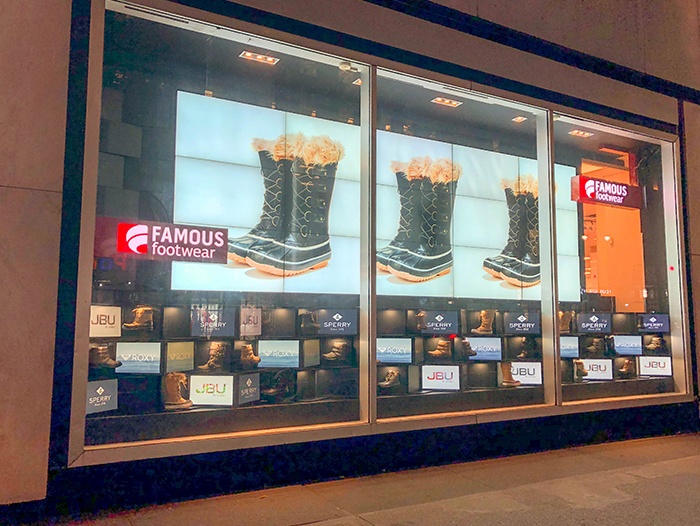

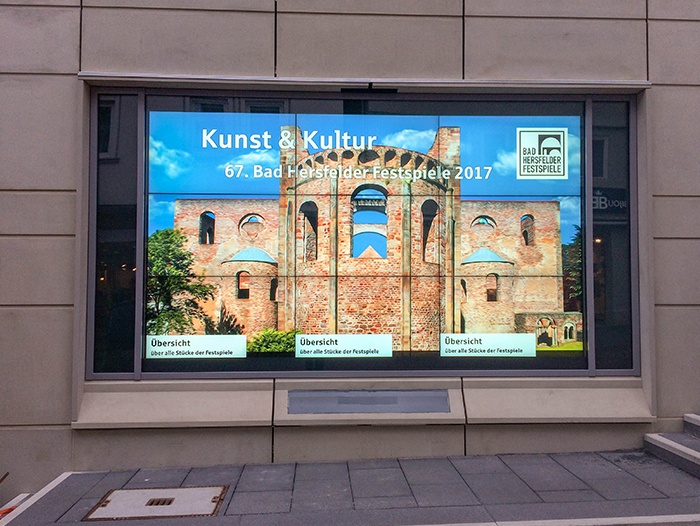

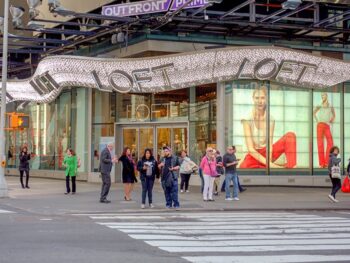

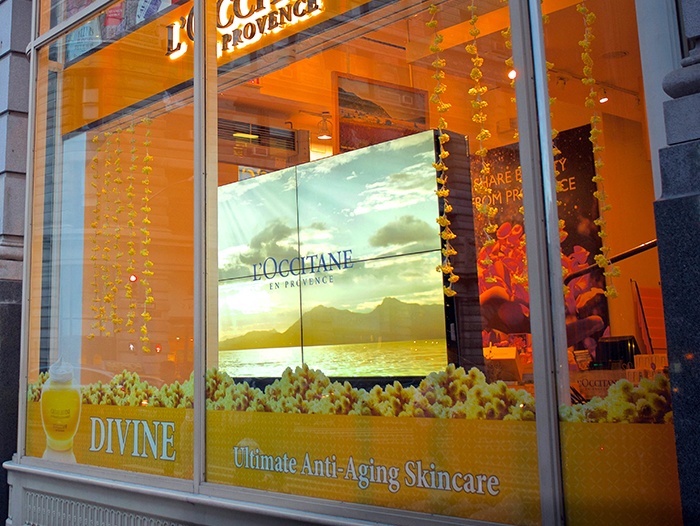

The screen DS491LT6 is a LCD ultra-high-brightness Full HD with a back-lighting system to LEDS producing an image visible even in direct sunlight thanks to a brightness of 5500 CDL. The model DS491LT6 has been designed for applications to run in environments that are very exposed to light such as public spaces or shop windows.
With its edge extremely purposes, this model is perfectly suitable for use in the wall of pictures and videos. Each screen can be calibrated independently in accordance with the standard colors D65 to ensure a perfect consistency of the rendered image on the multiple screens.
Features :
| Screen Type LCD | Color 54,64-inch IPS LCD |
| Native resolution | 1920 x 1080 |
| Backlight | Direct LED with Local Dimming |
| Brightness | 3000 cd/m2 |
| Default color Temperature | D65 (6500 K) |
| Contrast ratio | 3000:1 (static), 1,000,000:1 (dyn) |
| Response time | 10 ms (typ) |
| Viewing Angle | 178 ° / 178 ° |
| MTBF | 50,000 hours (typ.) |
| Default Blackening | Up to 110 ° C (230 ° F) |
| Panel surface | AG Haze 10%, 3H |
ELECTRICAL |
|
| Current Source | Internal |
| Rated voltage | 100 V ~ 240 V, 50 Hz / 60 Hz |
| Walk Mode | 195 W (typ), 300 W (max) |
| Power saving Mode | <1 W |
| AC Out | <100 W |
MECHANICAL CHARACTERISTICS |
|
| Frame (H / B / G / D) | 1,25/2,25/2,25/1,25 mm |
| Color of case | Black |
| Monitor Dimension (Lxhxd, w / o bracket) | 1215,2 x 686 x 121 mm |
| Weight Net / Gross | 36 kg / 40 kg |
| (VESA dimension) | 400 x 400 mm |
| Orientation | Portrait / Landscape |
USER INTERFACE |
|
| Language | English |
| Daisy Chain | DVI, RS-232 |
| Image retention | Yes |
| Control dimming (DCR) | Yes |
| Support mature video | Up to 15×15 |
| ID Frame for Daisy Chain | Yes |
| Programming the switching on / off | Yes |
| Ambient light sensor | Yes |
| Internal temperature sensor | Yes |
| Management | RS-232, RJ45 |
| OSD Menu Rotation | Yes |
| Carry handles | Yes |
VIDEO INPUT |
|
| DVI-D | 1 x with (HDCP support) |
| HDMI | Optional AD Converter Box |
| VGA | Optional AD Converter Box |
| Composite, S-Video, Component | Optional AD Converter Box |
| Accessories | |
| Remote control | Yes |
| User's Guide / CD-ROM driver | Yes |
| Video cable | DVI |
| Power cable | Yes |
| RJ45 cable | Yes |
ENVIRONMENT |
|
| Operating temperature | 0 ° C ~ 40 ° C |
| Storage temperature | -20 ° C ~ 60 ° C |
| Humidity | 10% ~ 80% RH non-condensing |
CERTIFICATE |
|
| CE / FCC / ROHS | yes |
