Description

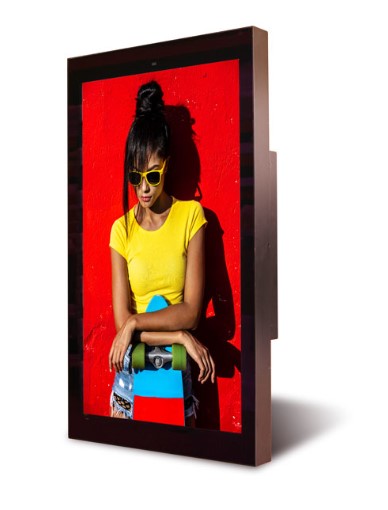

PRODUCT HIGHLIGHTS DO552LR5
Maximum brightness of 3,000 nits, weather-resistant IP56, vandal resistance IK10, LED backlight, high brightness, resolution of 1920 x 1080, multimedia player Android built-in
COLOR TEMPERATURE AND QUALITY
Ensure the color and brightness of each screen in a tiled matrix may take a lot of time and requires hardware calibration additional. Each display is individually calibrated according to the standard CIE color D65 (6500K). This not only produces a true, natural white, but the color of all screens will be uniform.
AUTOMATIC BRIGHTNESS CONTROL
Different lighting conditions external require different brightness levels. A light sensor built-in measures the ambient light in the area and automatically adjusts the image accordingly.
THERMAL MANAGEMENT INTELLIGENT
La chaleur générée par l’écran est émise par les zones à haute température tandis qu’un capteur surveille en permanence la température interne pour protéger le système de la surchauffe. Ceci est accompli avec des ventilateurs ultra-silencieux.
LED BACKLIGHT WITH DIMMING LOCAL
L’écran est doté d’une technique de rétroéclairage LED à gradation locale pour une image remarquablement contrastée. Avec la gradation locale directe, les zones sombres d’une image reçoivent moins de rétroéclairage que les zones plus claires, contrairement au rétroéclairage par LED à éclairage latéral qui éclaire tout un écran à tout moment, ce qui provoque la disparition des noirs et des zones sombres.
PANEL
- Type of LCD panel : 56,64-inch IPS LCD
- Native resolution : 1920 x 1080
- Backlight : DEL
- Brightness : 3000 nit (max), 2500 nit (typ)
- Color temperature default : D65 (6500 K)
- Report contrast 3 000:1
- Depth 8-bit color
- Time answer 9 ms (Typ.)
- Angle vision : 178° / 178°
- Life light 50,000 hours (typical)
- Surface du panneau jusqu’à 110 °C (230 °F)
POWER
- Power supply : Internal
- Voltage nominal 100 V ~ 240 V, 50 Hz / 60 Hz
- Mode walking : 180 W (typical)
- Mode d’ energy saving : < 1 W
MECHANICAL SPECIFICATIONS
- Width bezel 40 / 40 / 32 / 32 mm
- Color of the cabinet black
- Size monitor 1209,6 x 744,4 x 114,1 mm
- Weight monitor 63 kg / 69 kg [to be confirmed]
- Mounting VESA 400 x 400 mm, 400 mm x 800 mm
- Orientation : Portrait
USER INTERFACE
- Language : English
- Proof de conservation d’image : Yes
- Control dimming Yes
- Resistance weather Yes (IP66)
- Programming Walking Yes
- Light sensor ambient yes
- Control network RS-232 (Input), RJ45
- Temperature sensor internal yes
I/O PORTS
- HDMI : input (x1)
- DVI-D: In (x1)
- Port d’affichage Entrée (x1)
- RS -232 : input (x1)
- RJ -45 : Input (x1)*
- Audio : Output (x1)
- USB : input (x1)*
- Slot SD In (x1)*
INTERNAL DRIVE
- Processor : Octa-core Cortex-A53
- Vitesse d’ clock 1.5 GHz
- Memory Interface main DDR3-2G
- Graph : GPU PowerVR G6110
- Storage (FDM) : Interne : 8 Go eMMC Flash Externe : Prise en charge Micro SD, jusqu’à 32 Go
- Multimedia : décodeurs vidéo 4K VP9/H265/H264, jusqu’à 60 ips 1080P autres décodeurs vidéo (VC-1, MPEG-1/2/4, VP8) encodeur vidéo 1080P pour H.264 et VP8
- Specification Wi 802.11 b/g/n 2412.0 Mhz – 2462.0 Mhz
- System d’exploitation Android 5.1
ENVIRONMENT
- Temperature operation : -30°C ~ 50°C
- Temperature storage -20°C ~ 60°C
- Humidity : 10 % ~ 80 % RH non-condensing
