Description
INTRODUCTION cde7520

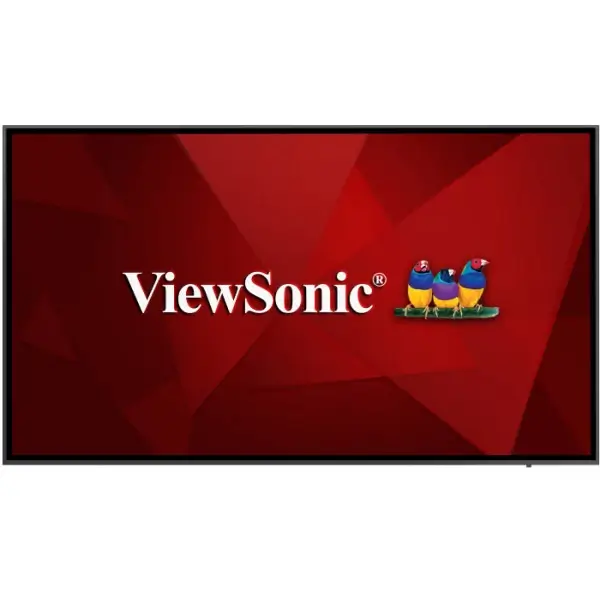

The ViewSonic® CDE7520 is a screen of wireless presentation 4K 75 “. The software screen sharing built-in *, ViewBoard® Cast and Display, as well as dongles ViewBoard® Cast USB-C / HDMI allow multiple users, on-site or online, to participate in conferences and to share content between them simultaneously, transforming the CDE7520 a hub of dynamic content. This presentation screen reliable is equipped with a quad-core processor and an internal memory, allowing a media playback constant from the internal storage or a USB key. Supports remote configuration and content management systems, the ViewSonic® CDE7520 is also suitable for a variety of display applications.
* Compatible with Chrome, Android, Windows, Mac OS, and iOS
Bezel and chassis thin and consistent
With a frame width of only 1.3 cmthis screen commercial/presentation offers stunning visuals in a chassis end.
Bezel 1.3 cm
Play photos, music and videos via USB
A powerful multimedia player multi-core, you can play photos, music and videos in just a few seconds with a simple connection USB.
Built-in media player
Easy Installation on multiple screens
This screen is ideal for configurations multi-screen in the hotels, restaurants, sports bars, or retail outlets that require a dual configuration and presets are customizable.
With a parameter of hospitality programmable USB, each screen has the same settings for the customized channel default, audio level, lock the front panel and automatic start.
Mode hospitality
Management remote configuration
The software vController™ provides a simple and intuitive interface for the remote management, the parameters related to the OSD and planning on the screens deployed via RS232 or LAN.
Software configuration display vController™
Control multiple HDMI devices
Thanks to the HDMI CEC functionality, the remote control signals can be sent to HDMI devices connected via an HDMI cable. This allows you to directly control DVD drives hidden audio systems and other devices with the remote control screen.
- AC In
- Power Switch
- Internal Speakers
- OPS Slot
- WiFi Slot
- Menu Controls
- VESA® Wall Mount 400x200mm
- SPDIF
- HDMI In x 2
- DisplayPort
- RS232
- VGA
- Audio In
- USB 3.0 Type A (USB Playback)
- USB 2.0 Type A x 2 (USB Playback)
- Audio Out
- LAN
- ScreenScreen size: 75"+C67:C105C67C67:C128
Type/ Technology: LCD Module TFT. Type-IPS, backlight DLED
Display area (mm): 1649.664(H) × 927.936(V)(75" diagonal)
Native resolution: 3840 x 2160
Height/width ratio: 16:9
Color: 1.07 Billion colors (10-Bit)
Brightness: 450 nits (typ.)
Contrast ratio: 1200:1 Typ. 5000:1 Max (DCR enabled)
Response time: 8 ms
Viewing angles: H = 178, V = 178typ.
Backlight life: 30,000 Hours(min)
Surface treatment: Anti-glare, hardness 3H, Haze 25%
Edges: Purpose
Orientation: landscape - INPUTSHDMI: x2
RGB / VGA: x1
DisplayPort: x1
Audio: x1 (3.5 mm)
RS-232: x1
Slot OPS: x1 (Intel OPS VPC12-WPO optional)
Slot WiFi: x1
- OUTPUTSAudio: x1 (3.5 mm)
SPDIF: x1 (Fiber) - LANRJ45: x1
- USBType: 2.0 Type A: x 2 (USB playback), 3.0 Type A: x 1 (USB playback)
- Micro SD card slotMicro SD card slot: No
- SPEAKERSSpeakers: Max. 16Wx2
- COMPATIBILITYRGB PC/HDMI PC: Up to 1920 x 1080 at 60 Hz. Refer to the calendar
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
DisplayPort: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
Android Version: Android 8.0 - POWERVoltage: 100V-240V,50/60Hz (AC)
Consumption: Normal 107 W - ERGONOMICSWall mount (VESA® ): 400×200 mm
- OPERATING CONDITIONSTemperature (º C): 0 to 40°C
Humidity: 20% ~ 80%, non-condensing - DIMENSIONS (W x H x D)Physical (inch / mm): 65.83 x37.59 x 2.76 in/ 1672.0 x 955.0 x 70.0 mm
Packaging (inch / mm): 71.97 x 43.23 x 8.66 in/1828 x 1098 x 220 mm - WEIGHTNet (lb / kg): 29,30 kg / 64,60 lb (without stand)
Gross (lb / kg): 41.7 kg/91.93 lbs - REGULATIONREGULATION: cULus, FCC, Energy Star, EPEAT,MX-CoC, Mexico Energy, CE, CB, RoHS, ErP, REACH, WEEE, Custom Union, UkrSEPRO, RCM, MEPS
- PACKAGE CONTENTSPACKAGE CONTENTS: 1. Screen CDE7520, 2. Remote control with batteries, 3. Quick start Guide, 4. Power supply Cable (1.5 m), 5. Cable HDMI-IN (3m) 6. Screws for wall mounting, 7. RS232 adapter
