Description
Aperçu écran commercial 4K

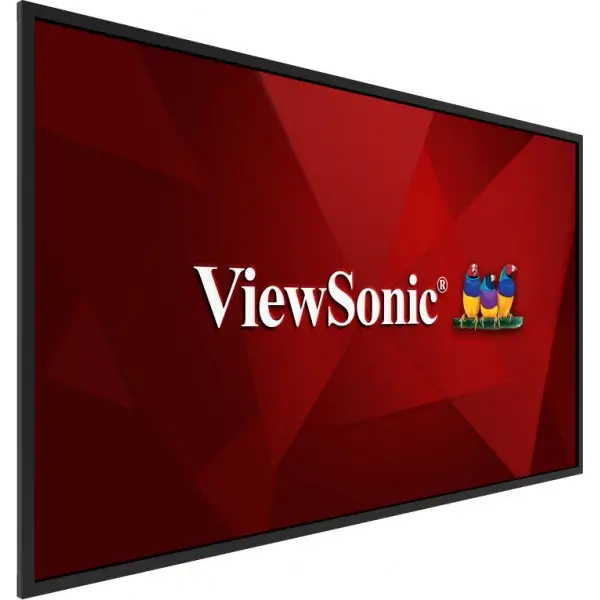

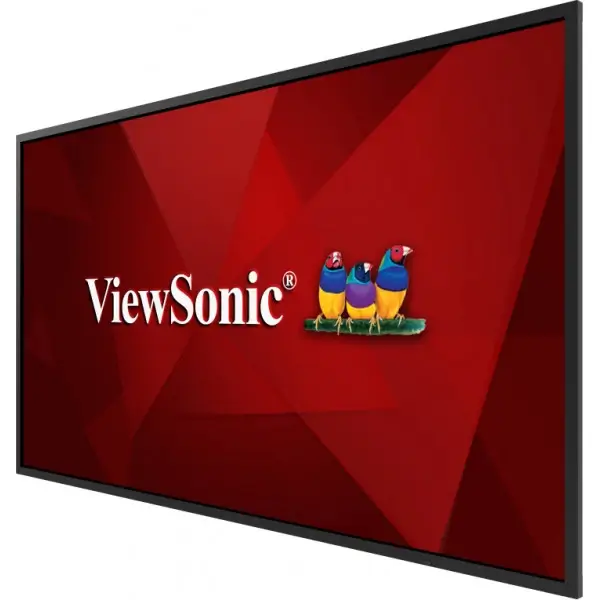

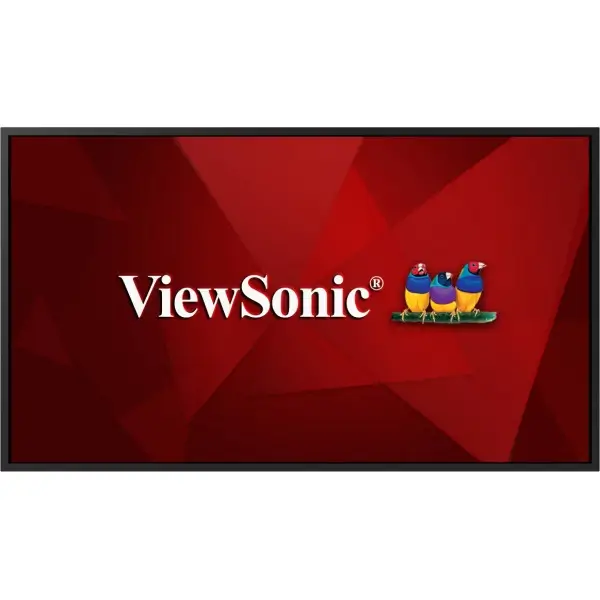

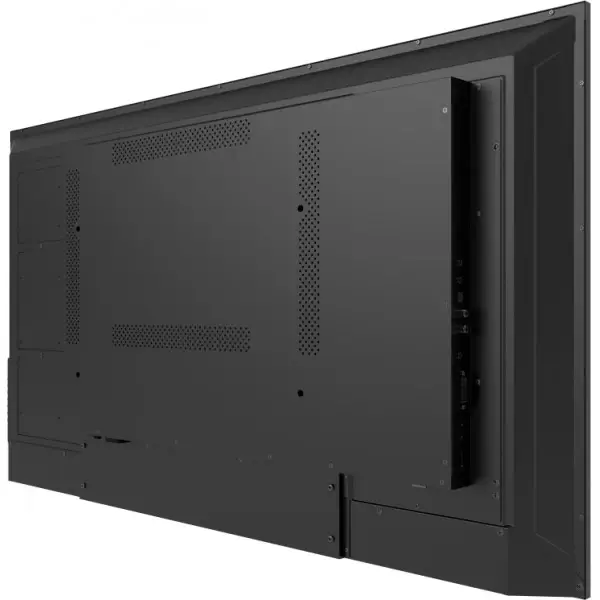

The ViewSonic ® CDE4320 is a presentation screen commercial 43 inch with a slim frame and flat, offering the combination of cost-effectiveness and ease of installation for business environments, retail and hospitality. Integrated with a built-in media playerthe CDE4320 can easily read messages high definition via a USB port. Connectivity options versatile, which include 2 HDMI ports IN an entry RS232, a SPDIF output, etc., The frame end CDE4320 offers sharp images and bright for a detailed visualization of the content.

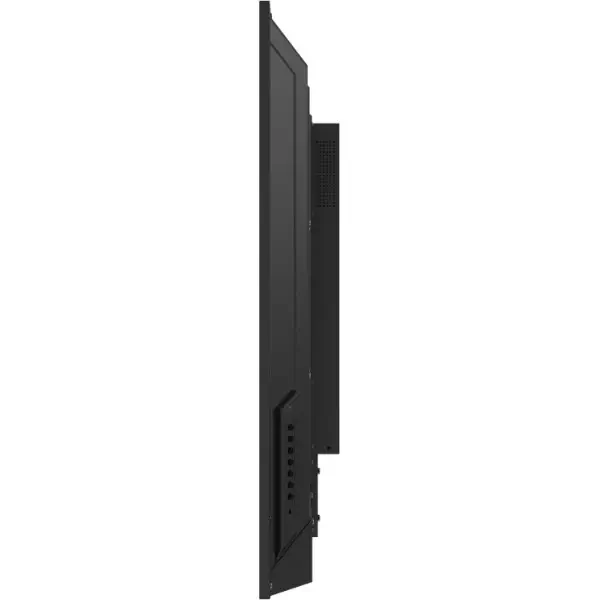

Bezel and chassis thin and consistent
With a frame width of only 1.3 cmthis screen commercial/presentation offers stunning visuals in a chassis end.
Bezel 1.3 cm
Play photos, music and videos via USB
A powerful multimedia player multi-core, you can play photos, music and videos in just a few seconds with a simple connection USB.
Built-in media player
Easy Installation on multiple screens
This screen is ideal for configurations multi-screen in the hotels, restaurants, sports bars, or retail outlets that require a dual configuration and presets are customizable.
With a parameter of hospitality programmable USB, each screen has the same settings for the customized channel default, audio level, lock the front panel and automatic start.
Mode hospitality
Management remote configuration
The software vController™ provides a simple and intuitive interface for the remote management, the parameters related to the OSD and planning on the screens deployed via RS232 or LAN.
Software configuration display vController™
Control multiple HDMI devices
Thanks to the HDMI CEC functionality, the remote control signals can be sent to HDMI devices connected via an HDMI cable. This allows you to directly control DVD drives hidden audio systems and other devices with the remote control screen.
- DisplayPanel size : 43"
Type : LCD Module TFT. Type-IPS, backlight DLED
Display area (mm) : 41,184 (H) x 529,416 (V) (diagonal 42,51")
Native resolution : 16:09
Image Format : 3840 x 2160
Color : 1.07 B colors
Brightness : 350 nits (typ.)
Contrast ratio : 1100:1
Typical response time : 6 ms
Angles of vision : H = 178, V = 178 type Duration
life of the backlight : 40 000 hours
Treatment surface type : anti-Glare, 2H Haze 3%
Bezel : close

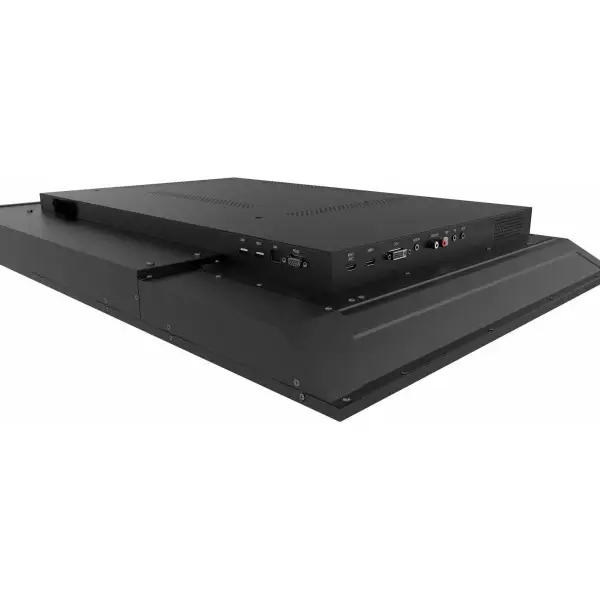

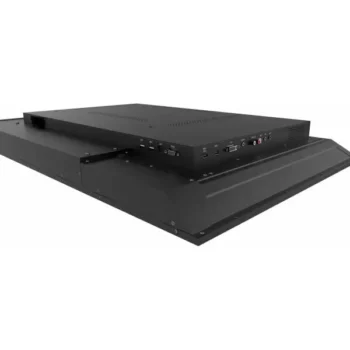

Orientation : landscape - ENTERHDMI : x2
DVI : x1
Audio : x1 (3.5 mm)
RS-232 : x1
Passing IR : x1 - PRODUCTIONAudio : x1 (RCA)
SPDIF : x1 (fiber)
Passes IR : x1
- local area networkRJ45 : x1
- USBType : 2.0 Type A : x2 (USB playback)
- SPEAKERSSPEAKERS : 10Wx2
- COMPATIBILITYPC/RGB-PC HDMI : up to 1920 x 1080 at 60 Hz. Refer to the table of sync
HDMI : 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
DVI : 480i, 480p,720p,1080i,1080p
Android Version : Android 8.0 - POWERVoltage : 100-240 VAC +/- 10 % Wide range

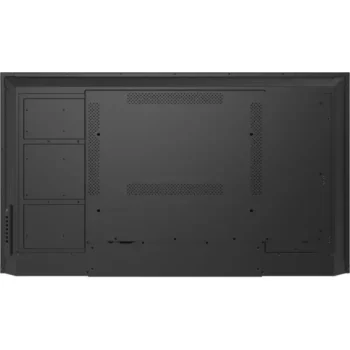

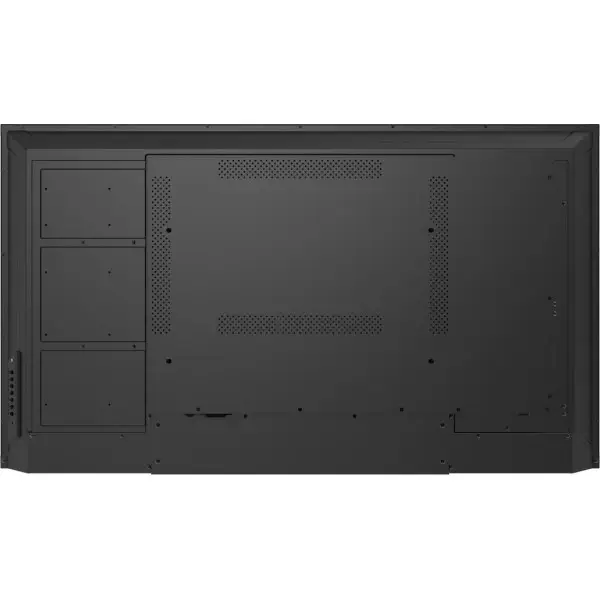

consumption : Normal 70 W, Max 85 W - ERGONOMICSWall mount (VESA®) : 400×200 mm
- OPERATING CONDITIONSTemperature (º C) : 0 °to 40 ° C
Humidity : 20 % ~ 80 %, non-condensing - DIMENSIONS (L x H x P)Physical (inch/mm) : 38,19 x 21,98 x 3.33 inches/969,9 x 558,3 x 84,6 mm
Packaging (inch/mm) : 42,13 in x 26,10 x 6,02 inch/1070 x 663 x 153 mm - LESTERNet (lb/kg) : 10.5 kg/23,1 lbs. (without stand) ; 11.1 kg / 24,47 lb (with stand)
Gross (lb/kg) : 13.5 kg / 29,76 lb - REGULATIONSREGULATIONS : cULus, FCC, Energy Star, TUV Mexico city, Mexico Energy, CE, CB, RoHS, ErP, REACH, EEL, WEEE
- PACKAGE CONTENTSPACK CONTENT : 1. Screen commercial/presentation CDE4320
2. Remote control with batteries
4. Quick start Guide
5. Power cable (1.8 mm)
6. HDMI cable (1.8 mm)
7. RS232 cable (1.8 m)
