Description

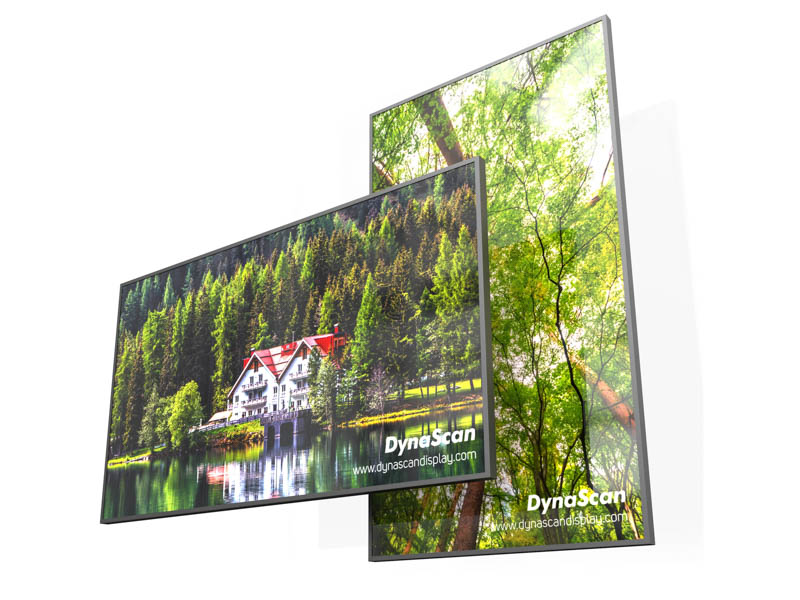

Model DS861LR4
product features
Visible in the light of the sun
Designed for display applications on a large scale in bright environments such as outdoor enclosure and the shop windows, the DS861LR4 features a LED backlight high brightness, producing a visible image in the light of the sun 3500 nits.
Calibrated TrueColor™
Each display is individually calibrated according to the standard color D65 (6500K) CIE. This not only produces a true, natural white, but also reproduces accurately the colours, the tones and colours of the brand.
Automatic brightness control
Different lighting conditions outside may require different levels of brightness. A light sensor built-in measures the ambient light in the area and automatically adjusts the image accordingly.
Resolution Ultra HD 4K
With a 4K resolution Ultra HD, the DS861LR4 provides an image ultra-sharp for a text that is easy to read and with incredible detail.
Built-in media player
A built-in media player based on Android™, with Wi-fi gives users the freedom to choose from the range of various solutions, multimedia software on the market or use of the application DynaScan DSM365 provided for local video playback, creating playlists and content planning.
Ready for Intel® SDM
A location Intel® SDM to accept a module Intel® Smart Display (sold separately). That supports a variety of operating systems, x64-based, modern, Intel® SDM offers the same level of intelligence, and interoperability specification snap open, but in a form factor smaller. Compatible with the form factors Intel® Small (Intel® SDM–S) and Intel® SDM Large (Intel® SDM–L).
Product specifications
- Panel size LCD 85,6-inch LCD
- Resolution native 3840 x 2160
- Retro- lighting DEL
- Color temperature default D65 (6500k)
- Brightness : 3500 nits
- Depth color 10-bit
- Report contrast 3000:1
- Time answer 8 ms
- Angle vision : 178° / 178°
- Life light 100 000 hours
- Without any default de blackening up to 110 °C (230 °F)
- Support of sunglasses polarized yes
- Surface panel AG Haze 3 %, 2H
- Power supply : Internal
- Voltage nominal 100 ~ 240 V, 50 Hz / 60 Hz
- Mode Walking (Typ./Max) : 750 W / 1 300 W
- Mode d’ energy saving : < 1 W
- Width bezel even the bezel 17.8 mm
- Color of the wardrobe black
- Dimensions (W x h x d) : 1935,8 x 1106,8 x 79.0 mm
- Weight monitor 77 kg
- Orientation : Portrait / Landscape
- Mounting VESA 600 x 400 mm
- Handles transport yes
- Language : English
- Support SNMP (up to V3.0): Yes
- Control dimming Yes
- Evidence of retention of image yes
- Orientation sensor automatic yes
- Light sensor ambient yes
- Planning power on/off : yes
- Temperature sensor internal yes
- Menu Rotation OSD yes
- Location SDM SDM-S (support with the extended card DynaScan) and compatible with SDM-L (not included)
- Taken in charge of the power supply : up to 45 W
- HDMI : x2 (2160p)
- DisplayPort : x1
- USB 3.0 : x1 (USB 3.0)
- Location Micro x1
- Audio : x1
- RS -232 : In x1
- RJ -45 : x2 (local area network)
- System operating Android 8.0
- Storage : Internal : 16 Gb eMMC Flash External : Support Micro SD, up to 32 Gb (exFAT) /128 Gb (FAT32)
- Multimedia : video decoder and 4K 10bits VP9/H265/H264, up to 60fps 1080P other video decoders (VC-1, MPEG-1/2/4, VP8)
- Specification Wi 802.11 b/g/n | 2412.0 MHz – 2462.0 MHz
- Operating temperature : 0°C ~ 45°C
- Temperature storage -20°C ~ 60°C
- Humidity : 10 % ~ 80 % RH non-condensing
- THIS /FCC/RoHS
