Description
Description
Panels, menus, digital Drive-thru and outdoor digital displays outside for restaurants, its main advantages :

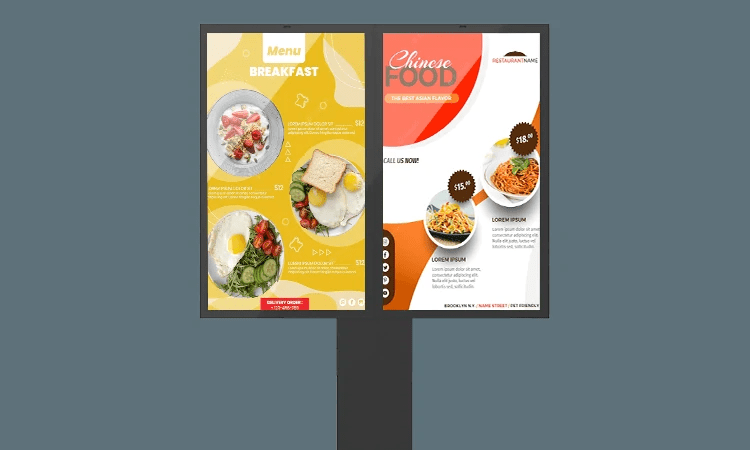

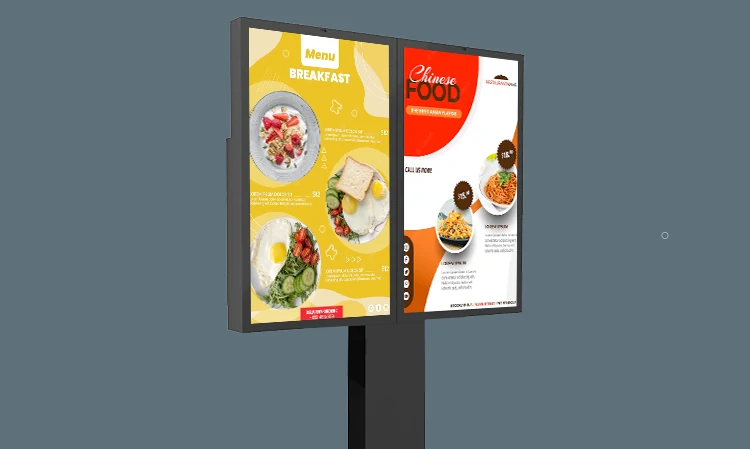

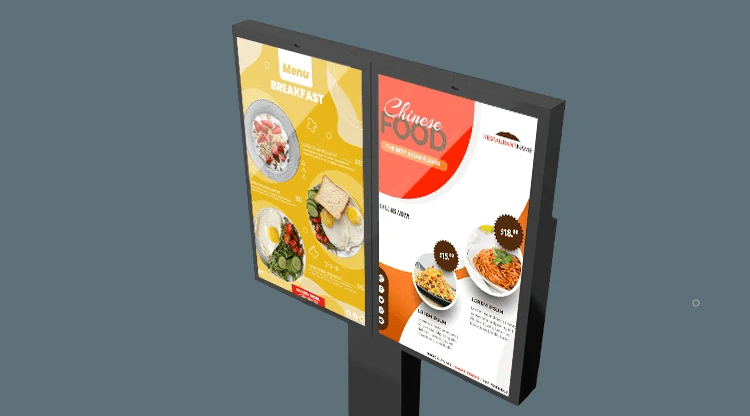

Kiosque 2 écrans numérique extérieurs pour Drive-thru
Protection IP66
Waterproof, anti-dust, anti-proof, photo-protection, anti-lightning, anti-shock, anti-corrosion, anti-theft
Screen ultra-clear FHD / color range 100 %
An image quality, which can display bright colors with more precision, and fit anywhere.
Support for multiple screens shared
Prise en charge du mode écran partagé via le logiciel, sauvegarde, export-import, parfait pour la publicité extérieure
Support for multiple screens shared
Support split-screen mode through the software, backup, export-import

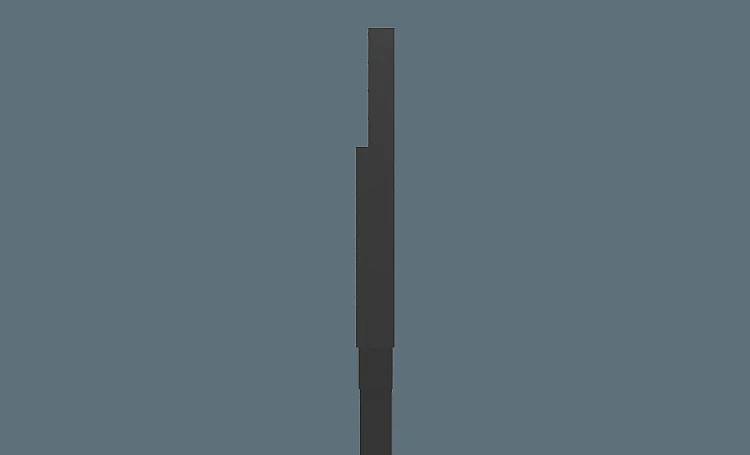

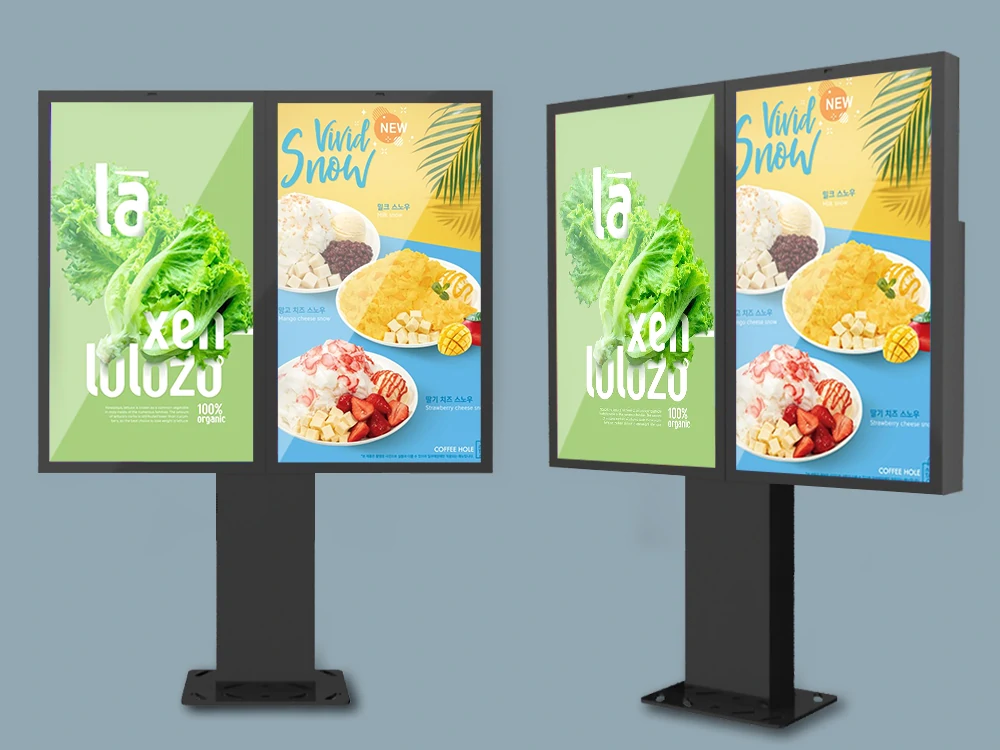

Digital signage outdoor ultra-slim IP66
It is lighter, thinner and more elegant than the kiosks digital traditional.
Optical technology full
Adopt the technology of optical full, more energy-efficient and more elegant
as the traditional models.
double écrans avec Capteur de lumière intelligent
Can automatically adjust the brightness of the LCD screen according to the brightness of the external light, in order to minimize the consumption of energy.
LCD industrial grade
Adopt an LCD screen resistant to high temperatures thanks to the high-quality components,
– The LCD display can operate at a maximum temperature of 110 ℃,
– The finished product can operate at unetempérature maximum 70 ℃

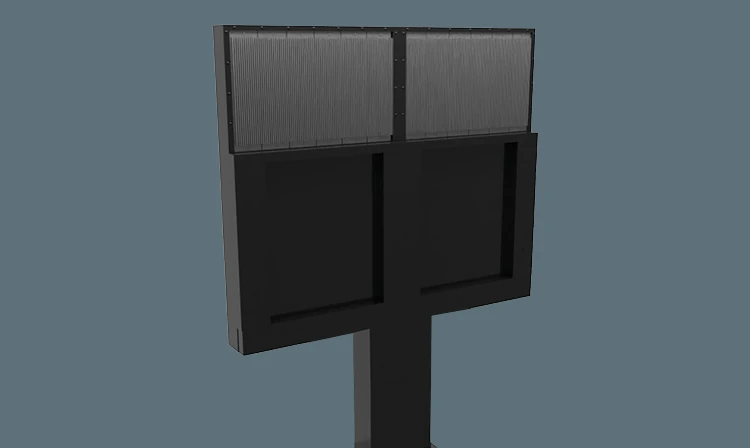

Design without fan and without filter for less maintenance
A housing without fan and without a filter helps you to reduce your maintenance costs
Cooling is ensured by metal plates.
Popular Applications
| Caractéristiques double écrans extérieur | ||||||
| Panel | Display size (inches) | 32" | 43" | 49" | 55" | |
| Resolution | 1920×1080 (16:9) | 1920×1080 (16:9) | 1920×1080 (16:9) | 1920×1080 (16:9) | ||
| Active display area(mm) | 700.5(H) x394.8(V) | 941(H)*530(V) | 1073.5(H) x 603.0(V) | 1209.6(H)x 680.4(V) | ||
| Aspect Ratio | 16:09 | 16:09 | 16:09 | 16:09 | ||
| Brightness(cd/m2) | 2000nit | 2500nit | 2500nit | 2500nit | ||
| Contrast ratio (Typ.) | 2000:1 | |||||
| Angle of view (H/V) | 178/178 | |||||
| Color | 16.7 M | |||||
| Response time (G to G) | 6ms | |||||
| Opening hours | 24/7 | |||||
| Sound | Speaker | 5W, 8Ω (2 games) | ||||
| Power | Type | Internal | ||||
| Current Source | AC 100 – 240 V~ (+/- 10 %), 50/60 Hz | |||||
| Power consumption | Max[W/h] | 130W | 180W | 260W | 300W | |
| Standby Mode | less than 0.5 W | |||||
| Stop | less than 0.5 W | |||||
Mechanical Specification | Glass protection | Glass anti-reflection AR | ||||
| Life of the housing | 8 years | |||||
| IP rate | IP66 | |||||
| Classification anti-hazard | IK10 | |||||
| Media Type | Wall / Ceiling / Freestanding | |||||
| Environment | Operating temperature | -30°C ~ 80°C | ||||
| Storage temperature | -30°C ~ 55°C | |||||
| operating humidity | 10 % ~ 80 % | |||||
| Storage humidity | 5% ~ 98% | |||||
| Cooling system | Turboventilateur powerful and flow fan cross/air conditioning (optional) | |||||
| IS | Media player Android | Processor | Rockchip® RK3288 (1.8 GHz, four cores) | |||
| RAM | 2G | |||||
| Glow | MEM 8G | |||||
| USB | HOST USB2.0 (X2) | |||||
| local area network | Ethernet 10M/100M (screen network version only) | |||||
| External memory | 8gb SD card (up to 32gb) | |||||
| Multimedia | Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image files (JPG, GIF, BMP, PNG) | |||||
| Resolution media | 1920*1080 | |||||
| Wi-fi | Ethernet 802.11 b/g/n (screen network version only) | |||||
| System operator | Android 7.1 | |||||
| Certificate | Security | THIS | ||||
| Accessories | Included | Scheduling software, Remote control, Key, power Cable, SD Card, wall mount | ||||
| Quality Assurance | 1 year | |||||
| Type of packaging | Cardboard box/box with honeycomb + wooden crate | |||||
