Parfait pour tout type de publicité, l’affichage des menus de restaurants, ou même des promotions dans les magasins, …
Kiosk digital external Drive-thru
Protection IP66
Waterproof, anti-dust, anti-proof, photo-protection, anti-lightning, anti-shock, anti-corrosion, anti-theft
Screen ultra-clear FHD / color range 100 %
Une qualité d’image qui peut afficher des couleurs brillantes avec plus de précision, et s’adapter partout.
Support for multiple screens shared
Support split-screen mode through the software, backup, export-import
Support for multiple screens shared
Support split-screen mode through the software, backup, export-import
Digital signage outdoor ultra-slim IP66
It is lighter, thinner and more elegant than the kiosks digital traditional.
Optical technology full
Adopt the technology of optical full, more energy-efficient and more elegant
as the traditional models.
Light sensor smart
Peut ajuster automatiquement la luminosité de l’écran LCD en fonction de la luminosité de la lumière externe, afin de réduire au maximum la consommation d’énergie.
LCD industrial grade
Adopt an LCD screen resistant to high temperatures thanks to the high-quality components,
– L’écran LCD peut fonctionner à une température maximale de 110 ℃,
– The finished product can operate at unetempérature maximum 70 ℃

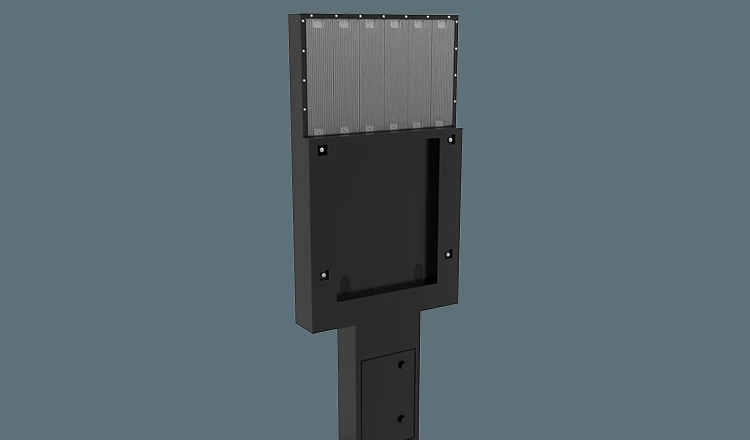

Conception sans ventilateur et sans filtre pour moins d’entretien
A housing without fan and without a filter helps you to reduce your maintenance costs
Cooling is ensured by metal plates.
Popular Applications
| Features | ||||||
| Panel | Display size (inches) | 32" | 43″ | 49" | 55" | |
| Resolution | 1920×1080 (16:9) | 1920×1080 (16:9) | 1920×1080 (16:9) | 1920×1080 (16:9) | ||
| Active display area(mm) | 700.5(H) x394.8(V) | 941(H)*530(V) | 1073.5(H) x 603.0(V) | 1209.6(H)x 680.4(V) | ||
| Aspect Ratio | 16:09 | 16:09 | 16:09 | 16:09 | ||
| Brightness(cd/m2) | 2000nit | 2500nit | 2500nit | 2500nit | ||
| Contrast ratio (Typ.) | 2000:1 | |||||
| Angle of view (H/V) | 178/178 | |||||
| Color | 16.7 M | |||||
| Response time (G to G) | 6ms | |||||
| Opening hours | 24/7 | |||||
| Sound | Speaker | 5W, 8Ω (2 games) | ||||
| Power | Type | Internal | ||||
| Current Source | AC 100 – 240 V~ (+/- 10 %), 50/60 Hz | |||||
| Power consumption | Max[W/h] | 130W | 180W | 260W | 300W | |
| Standby Mode | less than 0.5 W | |||||
| Stop | less than 0.5 W | |||||
Mechanical Specification | Glass protection | Glass anti-reflection AR | ||||
| Life of the housing | 8 years | |||||
| IP rate | IP66 | |||||
| Classification anti-hazard | IK10 | |||||
| Media Type | Wall / Ceiling / Freestanding | |||||
| Environment | Operating temperature | -30°C ~ 80°C | ||||
| Storage temperature | -30°C ~ 55°C | |||||
| operating humidity | 10 % ~ 80 % | |||||
| Storage humidity | 5% ~ 98% | |||||
| Cooling system | Turboventilateur powerful and flow fan cross/air conditioning (optional) | |||||
| IS | Media player Android | Processor | Rockchip® RK3288 (1.8 GHz, four cores) | |||
| RAM | 2G | |||||
| Glow | MEM 8G | |||||
| USB | HOST USB2.0 (X2) | |||||
| local area network | Ethernet 10M/100M (screen network version only) | |||||
| External memory | 8gb SD card (up to 32gb) | |||||
| Multimedia | Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image files (JPG, GIF, BMP, PNG) | |||||
| Resolution media | 1920*1080 | |||||
| Wi-fi | Ethernet 802.11 b/g/n (screen network version only) | |||||
| System operator | Android 7.1 | |||||
| Certificate | Security | THIS | ||||
| Accessories | Included | Scheduling software, Remote control, Key, power Cable, SD Card, wall mount | ||||
| Quality Assurance | 1 year | |||||
| Type of packaging | Cardboard box/box with honeycomb + wooden crate | |||||
